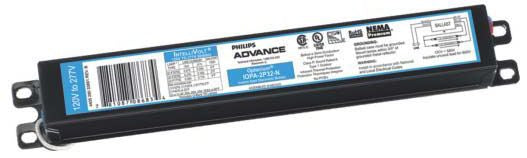

Advance IOPA4P32N35I 120-277V Bal 32W Electronic Fluorescent Ballast

Product Description

The Advance IOPA4P32N35I is a reliable fluorescent ballast designed for use with three or four lamps. It operates at input voltages ranging from one hundred twenty to two hundred seventy-seven volts AC. This ballast supports instant starting technology and is suitable for F32T8 lamps.

• Type: Automatic Restart
• Input Power: 109 to 106 Watt
• Wiring: Parallel

Product Highlights

This ballast features a power factor of 0.98 and offers a maximum total harmonic distortion of ten percent. Its compact design with the dimensions of nine and a half inches by one point three inches by one inch makes it suitable for various installations.

Product Information

Standard Information

• Manufacturer: Advance
• Model Number: IOPA4P32N35I

Technical Specifications

• Input Voltage: 120 to 277 Volt AC
• Input Current: 0.39 to 0.92 Amp
• Frequency Rating: 50/60 Hertz
• Ballast Factor: 0.87
• Approval: UL, CSA, CEC, CEE
• Lamp Type: F32T8
• Crest Factor: 1.6
• Wiring Type: Parallel
