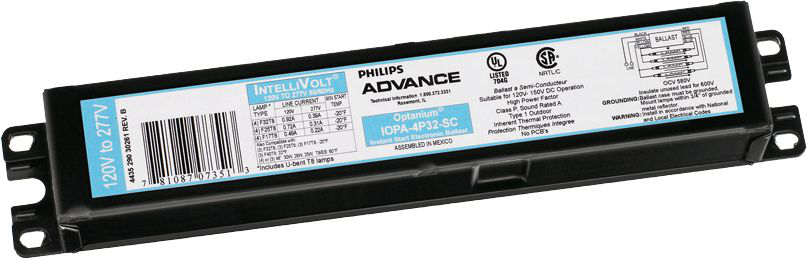

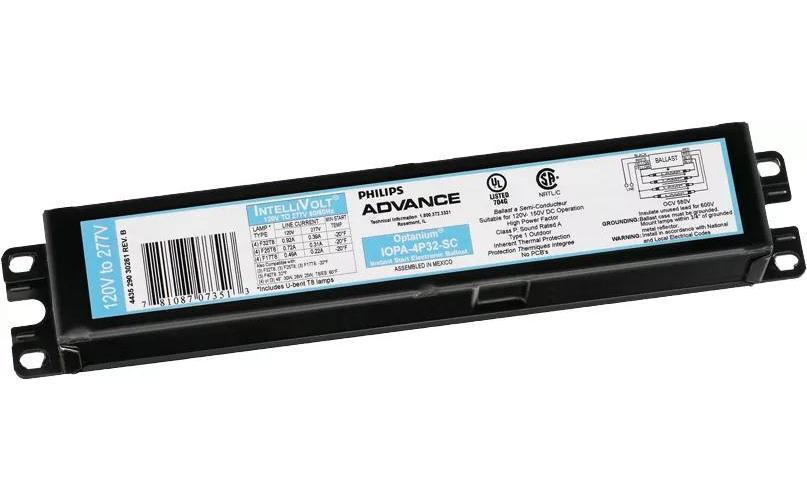

Advance IOP4P32HLSC35M Electronic Fluorescent Ballast, T8 Lamp, 32 W Lamp, 120 to 277 VAC, Instant/Rapid, 1.18 Ballast Factor

Product Description

Advance IOP4P32HLSC35M Electronic Fluorescent Ballast works efficiently with T8 lamps rated at thirty-two watts. It operates with a voltage range from one hundred twenty to two hundred seventy-seven VAC and supports instant and rapid starts. This ballast has a ballast factor of 1.18, ensuring effective light output.

• Utilizes T8 lamps with a wattage of thirty-two watts.
• Operates within a voltage range from one hundred twenty to two hundred seventy-seven VAC.
• Features instant/rapid start capability and high power factor.

Product Highlights

Designed for commercial applications, this ballast offers reliability and energy efficiency. Its thermal protection is Class P, which ensures safety and optimal performance.

Product Information

Standard Information

• Manufacturer: Signify
• Brand: Advance

Technical Specifications

• Wattage: 147/145 W
• Lamp Type: T8
• Dimensions: 9.5 in L x 1.7 in W x 1.18 in H
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 0.54 to 1.26 A
• Frequency Rating: 50/60 Hz
• Enclosure Type: NEMA 22
• Power Factor: 0.98
• Ballast Factor: 1.18
• Temperature Range: 70 deg C
• Thermal Protection: Class P
• Total Harmonic Distortion: 10 %
• Number of Lamps: 4
• Dimmable: No
• Material: Metal
