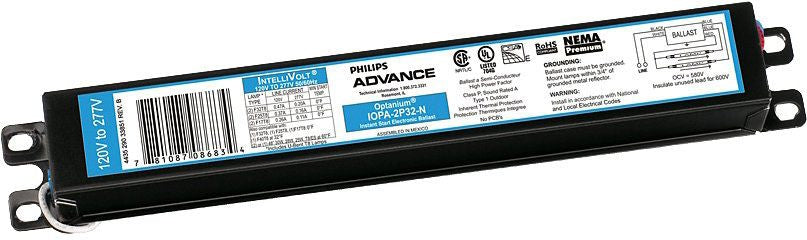

ADVANCE IOP3P32N35I 32W FLU BALLAST

Product Description

The ADVANCE IOP3P32N35I is an electronic ballast designed for fluorescent lamps. This model operates effectively for up to three lamps with a total wattage of thirty-two watts per lamp. It accommodates input voltages between one hundred twenty and two hundred seventy-seven volts AC. This ballast is suitable for both commercial and industrial applications.

• Input Current: 0.3 to 0.7 Amps
• Ballast Factor: 0.87
• Maximum Total Harmonic Distortion: 10%

Product Highlights

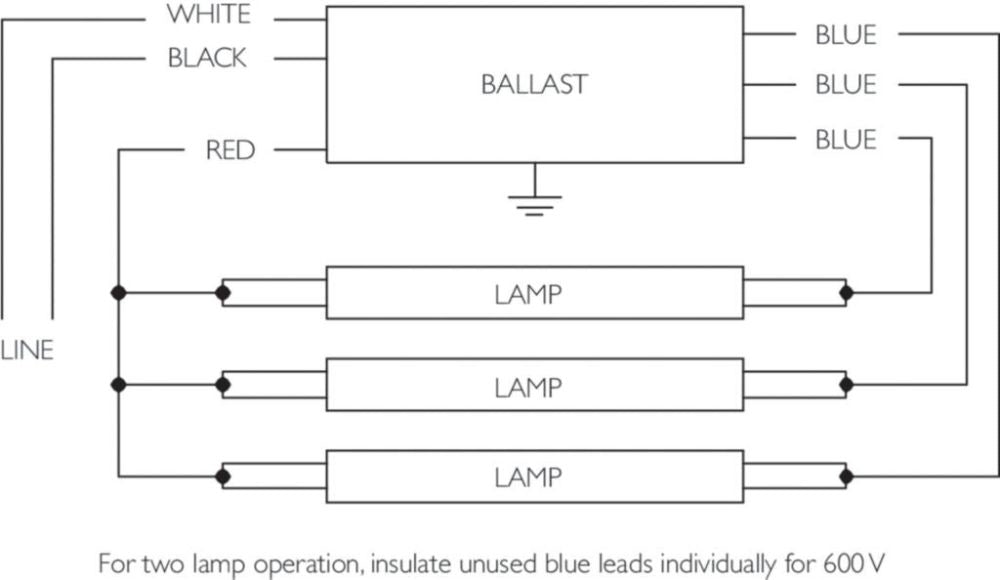

This ballast features instant starting capability and operates in parallel wiring configurations, making it versatile for various lighting setups.

Product Information

Standard Information

• Manufacturer: ADVANCE
• UPC: 78108712509
• UNSPSC: Not Available

Technical Specifications

• Wattage: 32 Watts
• Input Voltage: 120 to 277 Volts AC
• Input Power: 80 to 82 Watts
• Frequency Rating: 50/60 Hertz
• Power Factor: 0.98
• Maximum Starting Temperature: -20 Degrees Fahrenheit

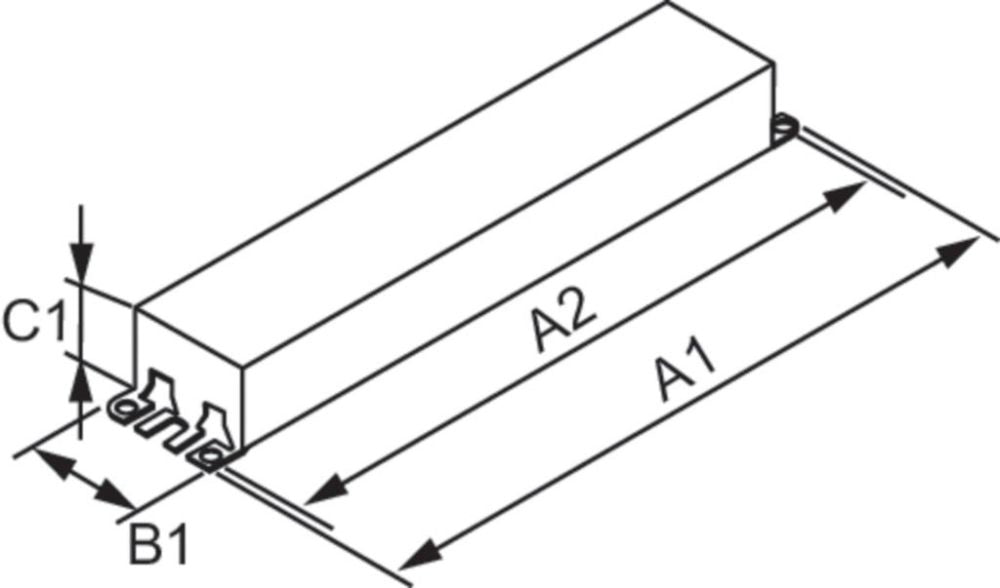

• Size: 9.5 Inches Length x 1.3 Inches Width x 1 Inch Height
• Approval: UL, CSA, CEE, FCC, RoHS Compliant
