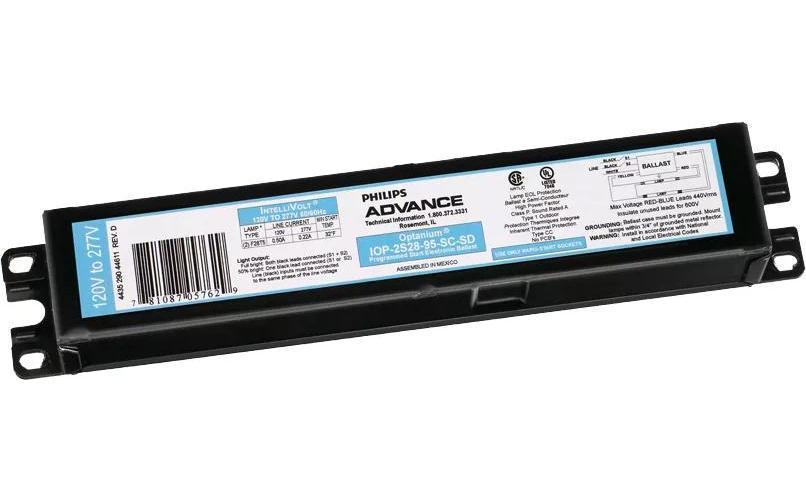

Advance IOP2S2895SC35M Electronic Ballast 28 W

Product Description

The Advance IOP2S2895SC35M Optanium ballasts for T5 lamps promote environmental responsibility through energy-efficient products. This electronic fluorescent ballast is designed for T5 lamps with a wattage of 59/58 W and a lamp wattage of 28 W. It operates on 120 to 277 VAC and features a programmed/rapid start. The enclosure is NEMA 33 rated.

• High power factor
• Frequency Rating: 50/60 Hz
• Minimum Starting Temperature: -18 deg C

Product Highlights

This electronic ballast is suitable for use with T5 lamps and provides a reliable and efficient lighting solution.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: IOP2S2895SC35M
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 0.22 to 0.5 A
• Dimensions: 9.5 in L x 1.7 in W x 1.18 in H
• Dimmable: No
• Enclosure Type: NEMA 33
• Frequency Rating: 50/60 Hz
• Material: Metal
• Minimum Starting Temperature: -18 deg C
• Number of Lamps: 2
• Power Factor: 0.98
• Temperature Range: 70 deg C
• Total Harmonic Distortion: 10 %
• Lamp Type: T5
• Lamp Wattage: 28 W
• Voltage Rating: 120 to 277 VAC
• Start Type: Programmed/Rapid
• Ballast Factor: 0.95
• Brand: Advance
• Certifications and Standards: EU RoHS, ARRA, BAA
• Type: Electronic
