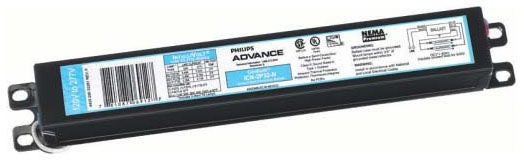

Advance ICN3P32N35I 120-277V ELTRN BLST

Product Description

The Advance ICN3P32N35I is a fluorescent ballast designed for efficient operation in various lighting applications. It supports a voltage range of 120 to 277 volts and is suitable for three lamps of 32 watts each. This ballast is ideal for use in commercial and industrial settings where reliable lighting is crucial.

• Input Voltage: 120 to 277 volts AC
• Power Factor: 0.98
• Wiring Type: Parallel

Product Highlights

This ballast features automatic restart and instant startup. Its metal construction ensures durability and effective heat dissipation. The device is compliant with UL, CSA, CEC, and CEE standards, making it suitable for various environments. It operates with low total harmonic distortion and high ballast factor, contributing to energy-efficient lighting solutions.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108709149

Technical Specifications

• Input Current: 0.71 amp
• Input Power: 85 to 86 watts
• Frequency Rating: 50/60 hertz
• Maximum THD: 10 percent
• Minimum Starting Temperature: 0 degrees Fahrenheit
• Maximum Case Temperature Rating: 70 degrees Celsius
• Size: 9.5 inches (length) x 1.3 inches (width) x 1 inch (height)
• Housing Material: Metal
