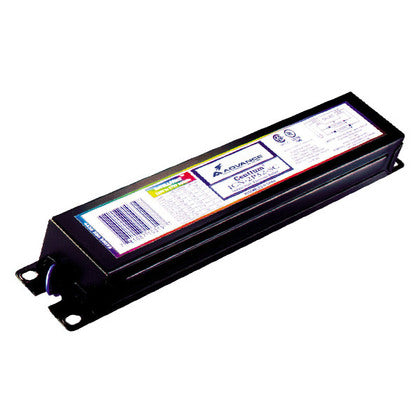

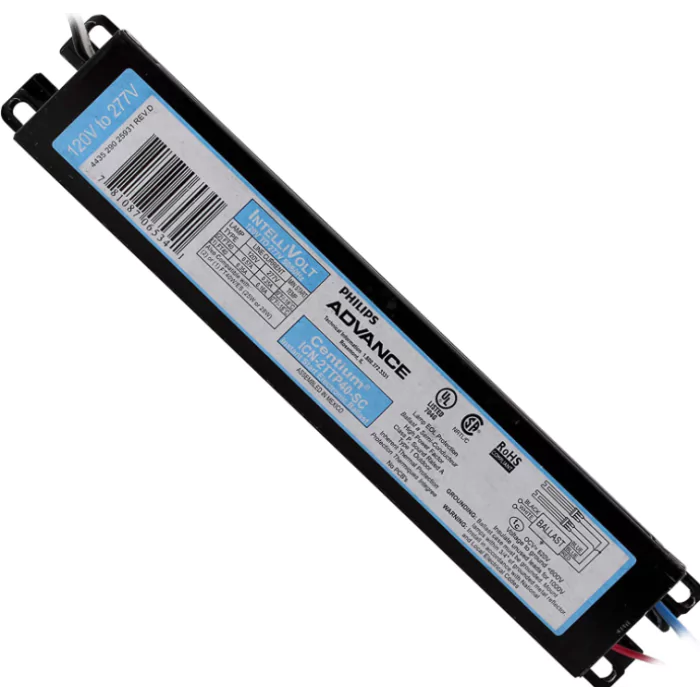

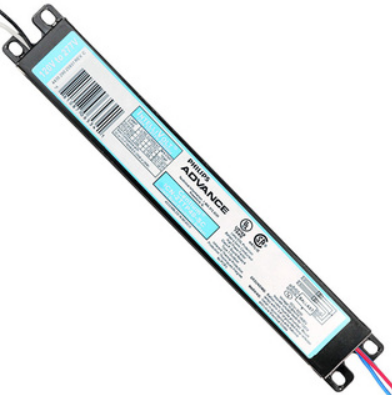

Advance ICN2TTP40SC35M Electronic Ballast 40W CFL 120-277V

Product Description

The ADVANCE ICN2TTP40SC35M is an electronic ballast designed for compact fluorescent lamps. It supports one or two 40W twin tube CFL lamps with an input voltage range of 120-277V. This instant start ballast is suitable for applications where lights are not frequently cycled on and off. It features parallel wiring and a high power factor of 0.98.

• Supports one or two 40W twin tube CFL lamps
• Input voltage range of 120-277V
• Instant start functionality

Product Highlights

Electronic ballast for compact fluorescent lamps, featuring instant start and parallel wiring.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: ICN2TTP40SC35M
• Country of Origin: MEX

Technical Specifications

• Input Voltage: 120-277V
• Lamp Type: FT40W/2G11
• Number of Lamps: 1, 2
• Lamp Wattage: 40 W
• Input Current: 0.57 Ampere at 120 V, 0.25 Ampere at 277 V
• Input Power: 68 W at 120 V, 67 W at 277 V
• Frequency Rating: 50/60 Hz
• Power Factor: 0.98
• Maximum THD: 10 Percent
• Wiring: Parallel
• Minimum Starting Temperature: -18 Deg C
• Housing Material: Metal
• Ignition Time: 0.1 Sec
• Lamp Current Crest Factor: 1.7
• Ballast Efficacy Factor: 1.29
• Wire Size: 18 AWG
• Maximum Distance Ballast to Lamp: 20 Ft
• Fixture Type: Compact Fluorescent
• Start Method: Instant Start
• Starting Temperature: 0ºF, -18ºC
• Lamps: (1/2) FT40W/2G11, (1/2) FT40W/2G11/ES (25W), (1/2) FT40W/2G11/RS
• Certifications: CSA, FCC Part 18 (Class A), UL
• Approval: UL, CSA
