Advance ICN2S86SC35I 120-277V Elec Blst

Product Description

The Advance ICN2S86SC35I is a fluorescent electronic ballast designed for high-frequency starting. This ballast operates efficiently with linear lamps and is suitable for outdoor applications. It supports two lamps with a wattage of ninety-six watts and operates at input voltages between one hundred twenty to two hundred seventy-seven volts AC.

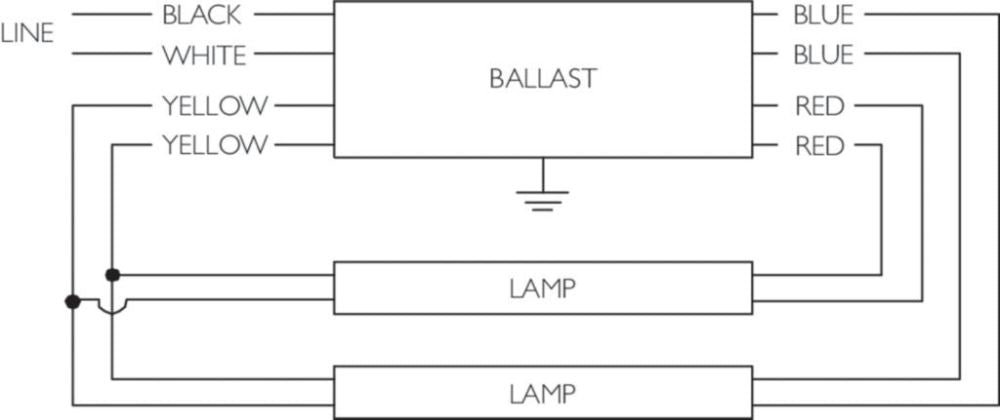

• Supports two F96T8/HO linear lamps
• Input voltage of one hundred twenty to two hundred seventy-seven volts
• UL, CSA, CEC, FCC approved

Product Highlights

The ICN2S86SC35I is ideal for high-output settings with a power factor of 0.99 and a maximum total harmonic distortion of ten percent.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108713845

Technical Specifications

• Input Current: 1.52 Amp
• Input Power: 182 Watt
• Frequency Rating: 50/60 Hertz
• Minimum Starting Temperature: -29 Deg C

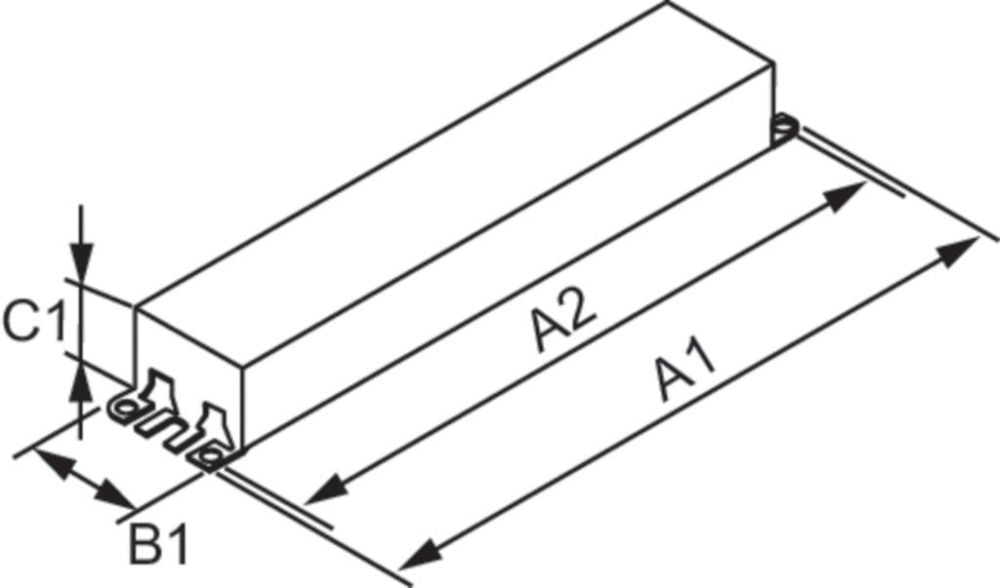

• Dimensions: 9.5 inches length x 1.7 inches width x 1.18 inches height
• Housing Material: Metal
• Wire Size: 18 AWG Solid
• Ignition Time: 1.5 seconds
