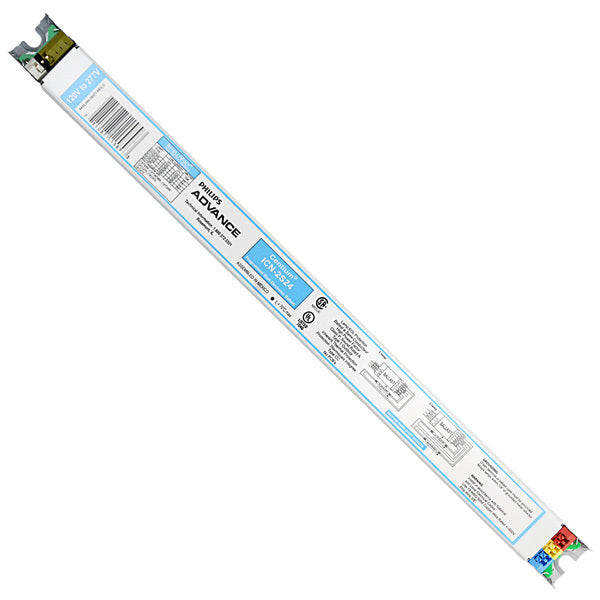

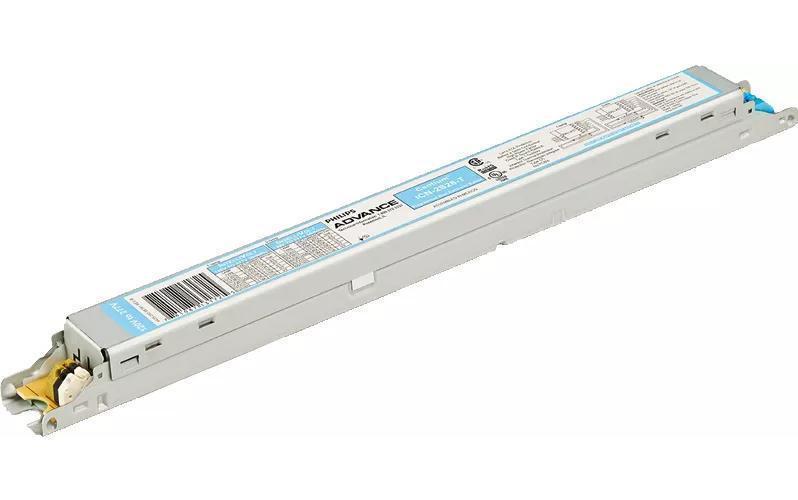

Advance ICN2S54T35I Electronic Fluorescent Ballast 54 W

Product Description

The ADVANCE ICN2S54T35I is an electronic fluorescent ballast designed for T5HO lamps. Operating at 120 to 277 VAC, this ballast supports a lamp wattage of 54 W and a wattage range of 44 to 118 W. It features a programmed start and is suitable for various applications, including those with high ambient temperatures.

• High power factor
• Programmed Start operation reduces wear and tear on lamps
• Suitable for use in a wide range of commercial and industrial applications

Product Highlights

This ballast has a NEMA 34 enclosure and operates within a temperature range of 70 deg C. It is designed with thermal protection Class P and has a ballast factor of 1.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: ICN2S54T35I
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 0.16 to 0.42 A
• Dimmable: No
• Enclosure Type: NEMA 34
• Frequency Rating: 50/60 Hz
• Material: Metal
• Minimum Starting Temperature: -20 deg F
• Number of Lamps: 2
• Power Factor: >0.98
• Temperature Range: 70 deg C
• Thermal Protection: Class P
• Total Harmonic Distortion: 10 %
• Wattage: 44 to 118 W
• Lamp Type: T5HO
• Lamp Wattage: 54 W
• Voltage Rating: 120 to 277 VAC
• Start Type: Programmed
• Ballast Factor: 1
• Input Current: 1 Amp
• Input Power: 120 to 117 Watt
• Maximum Case Temperature Rating: 70 Deg C
• Lamp Current Crest Factor: 1.7
• Housing Material: Metal
• Wire Type: Solid
• Ignition Time: 1.5 Second
• Brand: Advance
• MPN (Part No.): ICN-2S54-T
• UPC: 781087131787
• Lighting Technology: Fluorescent
• Family: Centium
• Voltage: 120
• Ratings and Certifications: CSA/Indoor/UL
• Lamps Operated: (2) Lamps
• Operates: F54T5/HO/FC12T5/FT36W/FT50W/FT55W
• Start Temp. (Min): 0 Deg. F
• THD: 10%
• Type: Electronic Fluorescent
