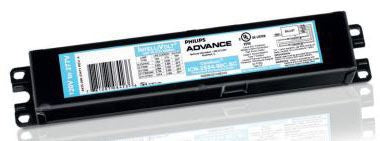

Advance ICN2S5490CT35M 277V Flu Ballast

Product Description

The Advance ICN2S5490CT35M is a fluorescent electronic ballast designed for high frequency starting applications. With the ability to operate at an input voltage range of one hundred twenty to two hundred seventy-seven volts, this ballast supports up to two lamps with a wattage of fifty-four watts each.

• Input current of 0.98 Ampere at 120 volts
• Maximum total harmonic distortion of 10 percent
• Constructed from durable metal housing

Product Highlights

This ballast features programmed circuit technology ensuring efficient operation, minimal energy waste, and maximum lamp efficiency. It is suitable for use in a variety of lighting setups, including remote, tandem, and through wiring configurations.

Product Information

Standard Information

• Brand: Advance
• UPC: 78108713183

Technical Specifications

• Input Voltage: 120 to 277 V
• Input Current: 0.98 Ampere at 120 V, 0.42 Ampere at 277 V
• Input Power: 120 W at 120 V, 117 W at 277 V
• Frequency Rating: 50/60 Hz
• Power Factor: 0.98
• Ballast Factor: 1
• Starting Temp: Minimum -20 F
• Dimensions: 14.17 inches L x 1.18 inches W x 1.06 inches H
