Product Description

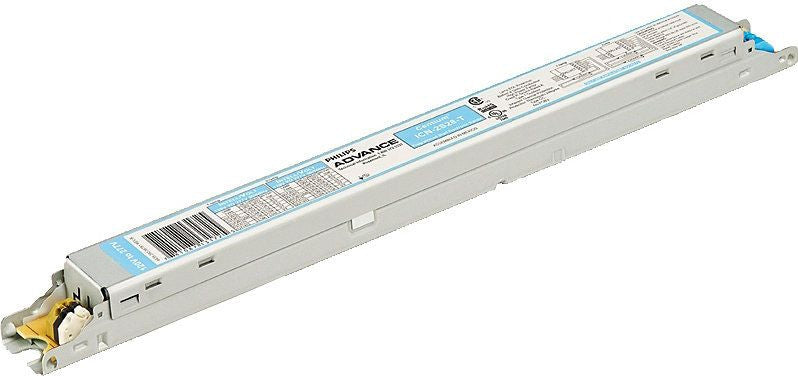

The Advance ICN2S39T35I is a fluorescent electronic ballast designed for efficient operation. This ballast supports two lamps with a wattage of thirty-nine watts each and operates within a voltage range of one hundred twenty to two hundred seventy-seven volts AC.
- Input current ranges from zero point thirty-one to zero point seventy-two amps.
- Power factor of zero point ninety-eight enhances energy efficiency.
- UL, CSA, CEC, and FCC approved for safety compliance.
Product Highlights
This ballast is designed for programmed circuit type high power factor applications. Ideal for use in commercial lighting installations, it is capable of driving two lamps effectively.
Product Information
Standard Information
-
Brand: Advance
-
Manufacturer: Advance
Technical Specifications
-
MPN: ICN2S39T35I
-
Input Voltage: 120 to 277 Volt AC
-
Input Current: 0.31 to 0.72 Amp
-
Input Power: 85 to 86 Watt
-
Frequency Rating: 50/60 Hertz
-
Ballast Factor: 1
-
Maximum THD: 10 Percent
-

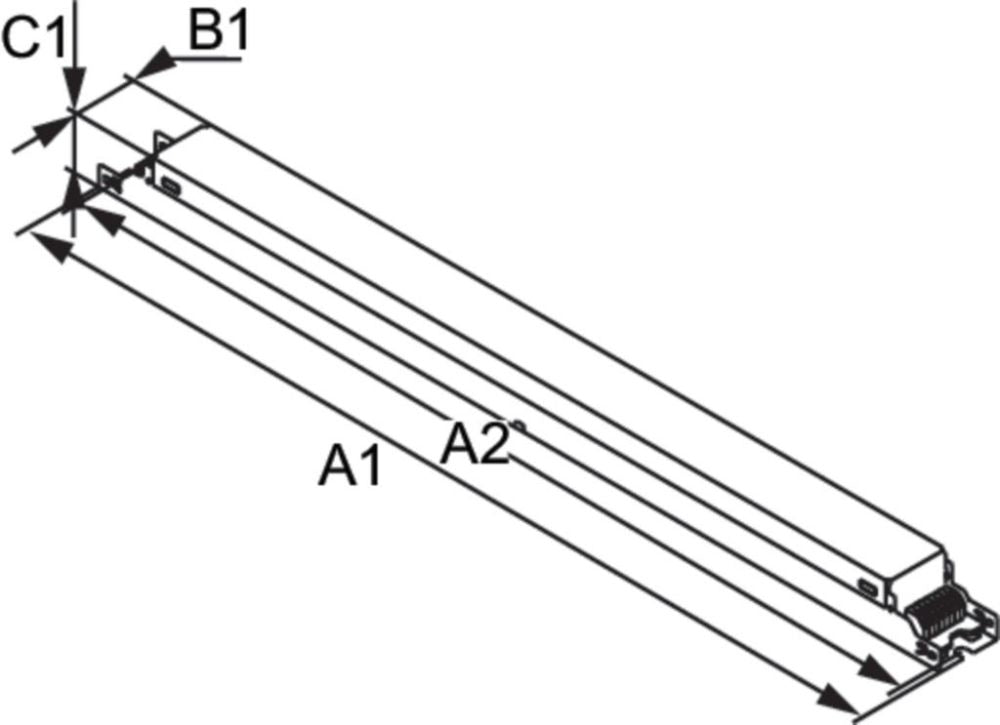

Size: 14.17 inches Length x 1.18 inches Width x 1.06 inches Height
