Advance ICN2S28N35I ADV ICN2S28N35I (2)F28T5 ELEC BLST

Product Description

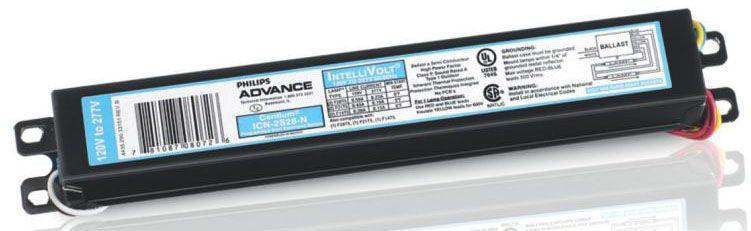

The Advance ICN2S28N35I is an electronic fluorescent ballast designed for two F28T5 lamps. It operates on a voltage range of one hundred twenty to two hundred seventy-seven volts AC, making it suitable for various installation environments. This ballast ensures efficient performance and is compatible with programmed circuit types.

• Input current range: 0.23 to 0.59 amps
• Maximum total harmonic distortion: 10 percent
• Maintains a minimum starting temperature of -18 degrees Celsius

Product Highlights

This ballast features a high power factor and is RoHS compliant, ensuring a low environmental impact. With a compact size, it measures fourteen point seventeen inches in length, one point eighteen inches in width, and one point six inches in height.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108708072

Technical Specifications

• Input Voltage: 120 to 277 Volt AC
• Input Current: 0.23 to 0.59 Amp
• Input Power: 60 to 61 Watt
• Frequency Rating: 50/60 Hertz
• Ballast Factor: 1
• Minimum Starting Temperature: -18 Deg C
• Size: 14.17 Inch Length x 1.18 Inch Width x 1.06 Inch Height
• Approval: UL, CSA
