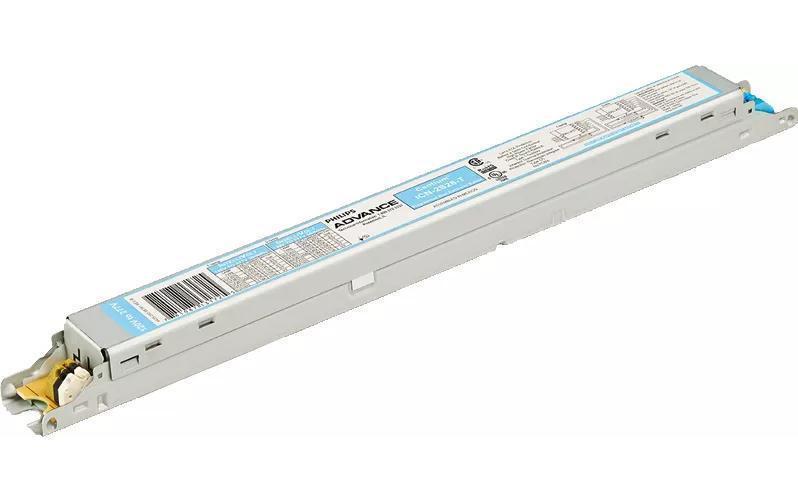

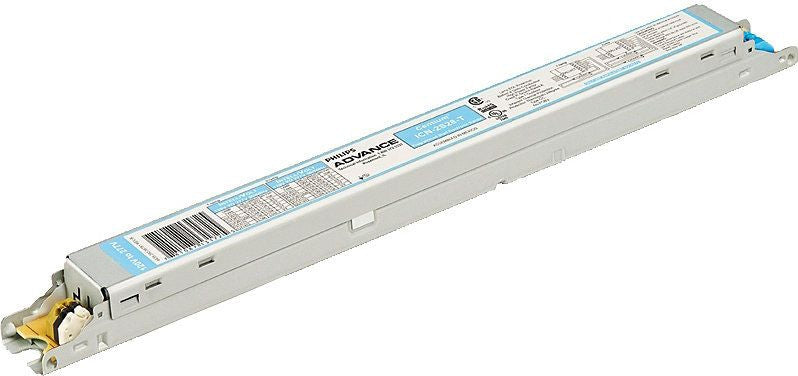

Advance ICN2S24T35I Electronic Fluorescent Ballast 24 W

Product Description

The ADVANCE ICN2S24T35I is an electronic fluorescent ballast designed for a variety of applications, operating at line voltages between 120 to 277 VAC. This ballast is ideal for locations with high ambient temperatures. It supports T5HO lamps and features programmed start technology.

• High power factor
• Programmed start
• Thermal protection: Class P

Product Highlights

This electronic ballast operates at 50/60 Hz and has a ballast factor of 1. It is suitable for outdoor applications and includes a T can.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: ICN2S24T35I
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 0.19 to 0.44 A
• Dimensions: 14.17 in L x 1.18 in W x 1.06 in H
• Dimmable: No
• Frequency Rating: 50/60 Hz
• Material: Metal
• Number of Lamps: 2
• Power Factor: 1
• Temperature Range: 70 deg C
• Thermal Protection: Class P
• Total Harmonic Distortion: 10 %
• Wattage: 52 W
• Lamp Type: T5HO
• Lamp Wattage: 24 W
• Voltage Rating: 120 to 277 VAC
• Start Type: Programmed
• Ballast Factor: 1
• Input Voltage: 120/277 V
• Input Power: 52 Watt
• Minimum Starting Temperature: -18 Deg C
• Wire Size: 18 AWG
• Wire Type: Solid
