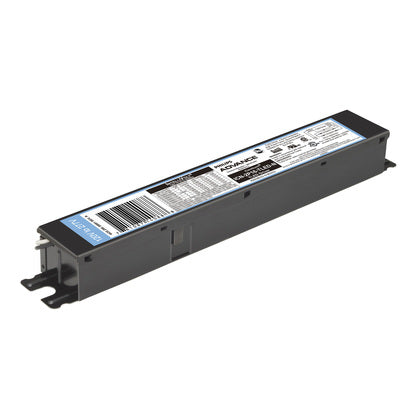

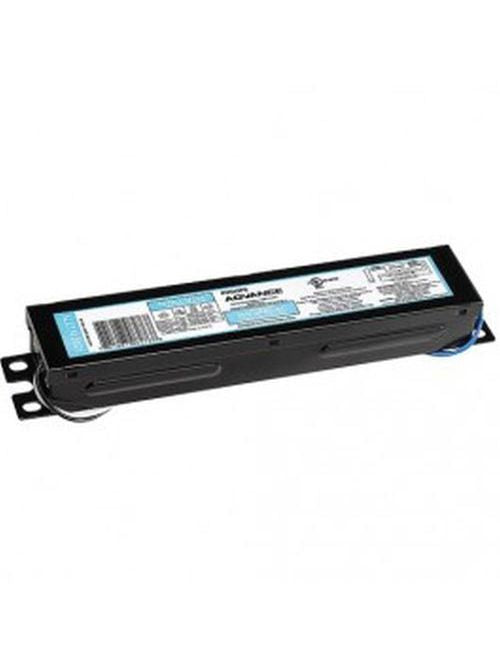

Advance ICN2P16TLEDN35M Centium 16 W

Product Description

The Advance Centium ICN2P16TLEDN35M is a 2-lamp electronic fixed output instant start LED driver. It supports an input voltage of 120 to 277 VAC and has a power rating of 16W. It is designed to operate InstantFit T8 one or two 2-4 ft. Tubes/U-bend Lamps.

• Parallel lamp connection
• 50/60 Hz input frequency
• High power factor

Product Highlights

This LED driver is UL Listed, CSA Certified, and RoHS Compliant. It is suitable for TLED fixture types.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: ICN2P16TLEDN35M
• Country of Origin: Mexico

Technical Specifications

• Power Rating: 16 W

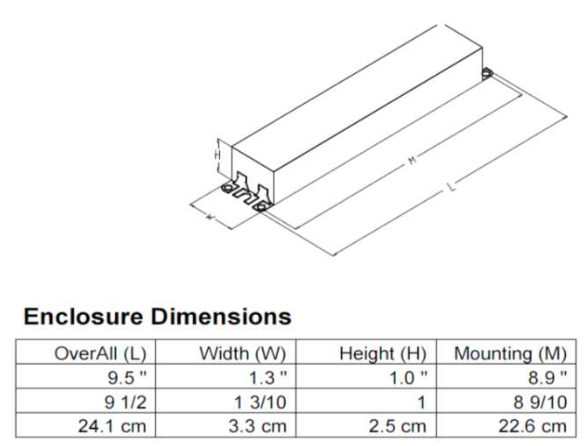

• Length: 9-1/2 in
• Width: 1.3 in
• Height: 1 in
• Type: Electronic
• Input Voltage: 120 to 277 VAC
• GTIN: 00781087140895
• Output Voltage: 120 to 277 VAC
• UPC: 781087140895
• UNSPSC: 39101900
• Vendor SKU: ICN2P16TLEDN35M
• Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
• Manufacturer: Signify
• Brand: Advance
• Features: Normal Light Output, 16W Max/Lamp
• Fixture Type: TLED
• Driver Type: Constant-Current
• Max Output Power: 40W
• Dimming: Non Dimming
• Power Source: AC
• Specification Met: Icn2p16tledn
• Model: ICN-2P16-TLED-N
• Part Number: ICN-2P16-TLED-N
• Number of Lamps: 2
• Lamp Type: LED
• Start Type: INSTANTSTART
• Voltage: 120-277 Volt
• Wattage: 16 Watt
• Sub Brand: CENTIUM
• Input Watts: 13-40 W
• Width / Diameter: 1.3"
• Ballast Type: ELECTRONIC
• Approvals: UL-LISTED (C-US), CSA-APPROVED (C-US) UL REGISTERED COMPONENT (C-US)
• Product Type: BALLAST
• Technology: BALLAST
