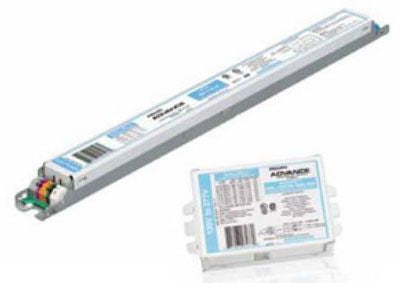

Advance ICF2S26H1LDK 2-26W CFL (4-PIN)

Product Description

The Advance ICF2S26H1LDK is a compact fluorescent ballast kit designed for use with two lamps. This kit operates lamps with a wattage of twenty-six watts and functions within a voltage range of one hundred twenty to two hundred seventy-seven volts.

• Input current ranges from zero point one nine to zero point four three amps.
• Ballast factor is one with a maximum total harmonic distortion of ten percent.
• Ideal for use in applications such as hallways, lobbies, and residences.

Product Highlights

This ballast kit is designed for compact fluorescent lamps and is suitable for both residential and commercial use.

Product Information

Standard Information

• Brand: Advance
• UPC: 78108711778

Technical Specifications

• MPN: ICF2S26H1LDK
• Input Power: 51 watts
• Minimum Starting Temperature: -18 degrees Celsius
• Size: 4.98 inches length x 2.4 inches width x 0.98 inches height
• Approval: UL, CSA, CEC
• Wiring Type: Series
• Power Factor: 0.98
• Material: Hybrid metal/plastic case
