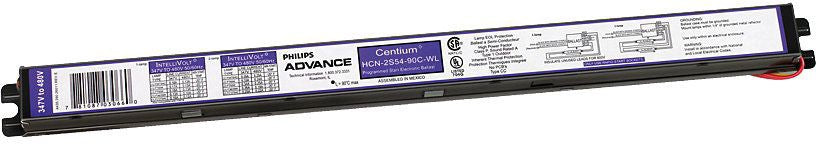

Advance HCN2S5490CWL35I T5HO Electronic Dimming Ballast

Product Description

The Advance HCN2S5490CWL35I is an electronic dimming ballast designed for fluorescent lighting. This ballast operates high-frequency circuits and is suitable for high output applications. Ideal for use with F54T5/HO lamps, it powers up to two lamps at a wattage of fifty-four. The HCN2S5490CWL35I operates within a voltage range of three hundred forty-seven to four hundred eighty volts AC, making it versatile for various setups.

• Input power of one hundred twenty watts at three hundred forty-seven volts.
• Features a power factor of 0.98 and a maximum total harmonic distortion of ten percent.
• Includes L-Can housing for added durability.

Product Highlights

This product is designed for outdoor applications and is suitable for environments with starting temperatures as low as negative twenty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108703066

Technical Specifications

• Input Voltage: 347 to 480 Volt AC
• Input Current: 0.25 to 0.35 Amp
• Frequency Rating: 50/60 Hertz
• Ballast Factor: 1

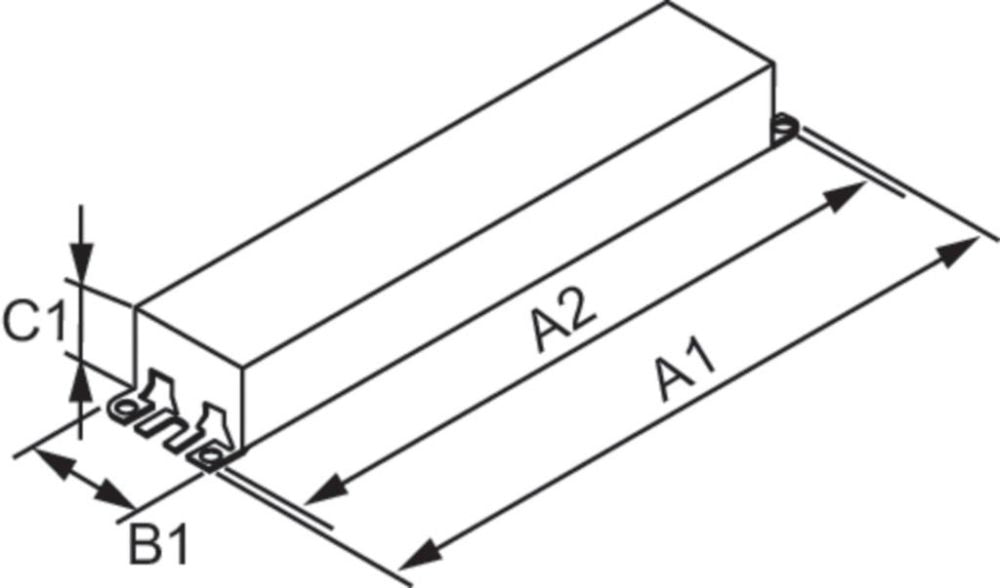

• Size: 16.7 inches length x 1.18 inches width x 1 inch height
• Approval: UL, CSA

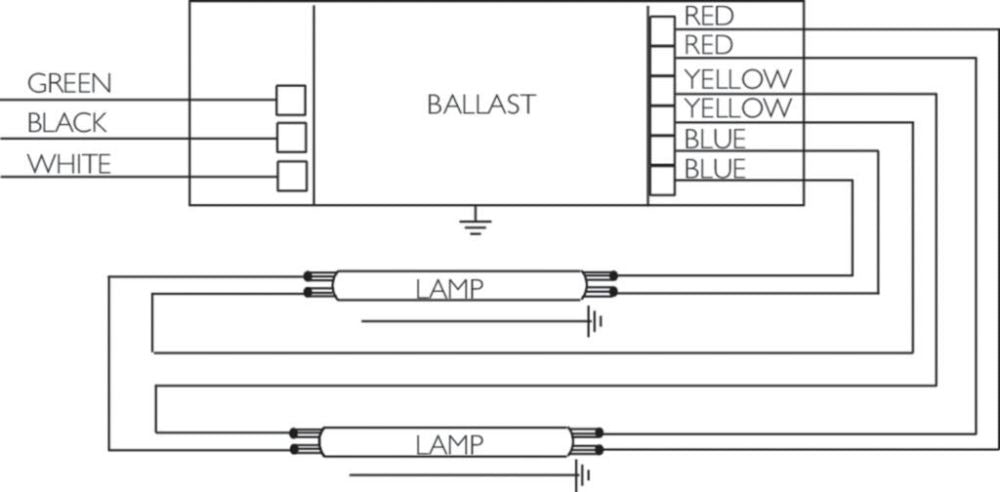

• Wiring: Series
• Temperature Rating: 90 Deg C
