Advance 71A8773001 ADV 71A8773001 1-1000W QUAD BAL HPS

Product Description

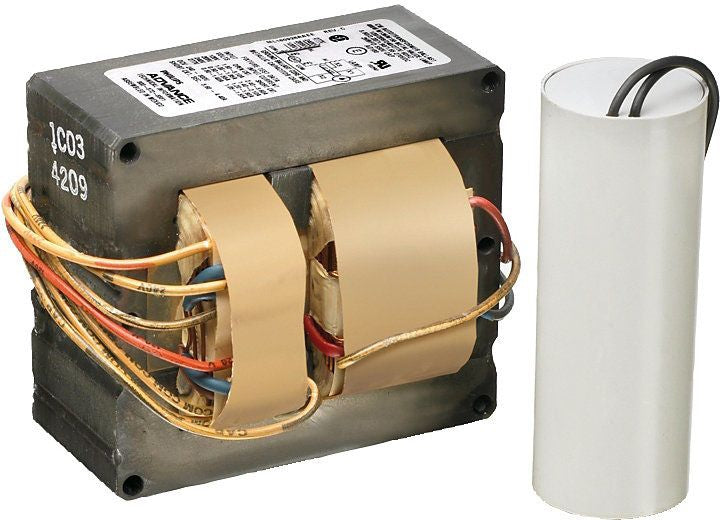

The Advance 71A8773001 is a core and coil HID ballast kit. It is designed for high pressure sodium lamps with a wattage of 1000 watts. This ballast operates at multiple input voltages including 120, 208, 240, and 277 Volt AC.

• Input current of 9.5 Amps at 120 Volts.

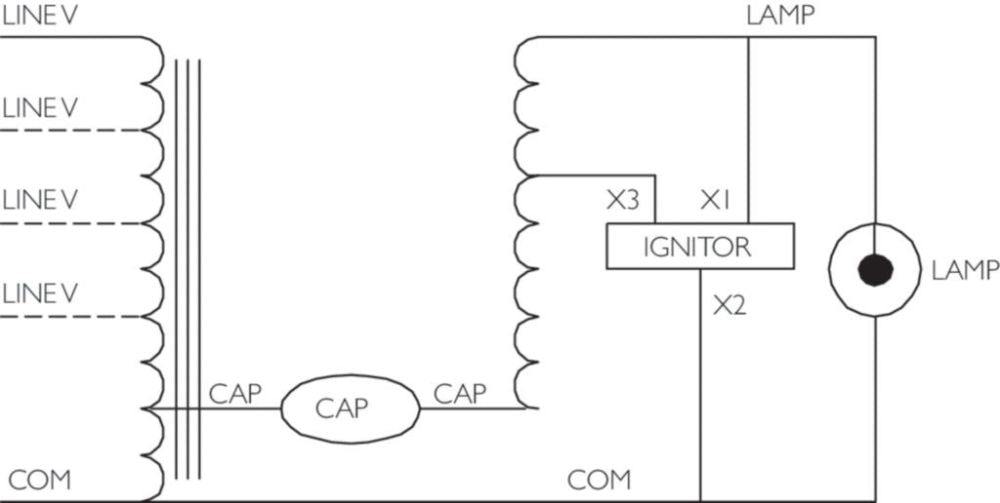

• Constant wattage autotransformer circuit type.
• Minimum starting temperature of -40 degrees Fahrenheit.

Product Highlights

This ballast is essential for HID lighting installations, ensuring reliable operation under diverse conditions.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108787731

Technical Specifications

• Input Power: 1100 Watts
• Frequency Rating: 60 Hertz

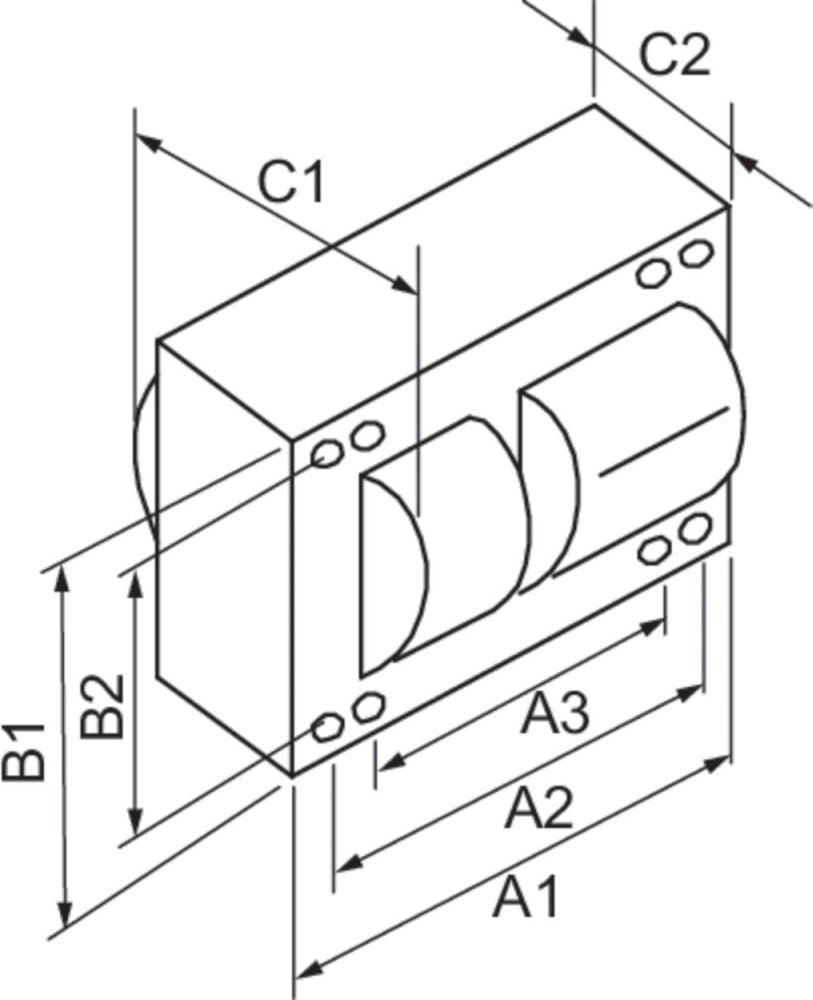

• Size: 6 inches length x 5.75 inches width x 4.3 inches height
• Approval: UL 1029, CSA 22.2
• Core Size: 4-1/4 inches x 6 inches
• Temperature Rating: 105 degrees Celsius (Ignitor)
• Wire Strip Length: 0.5 Millimeter
• Power Factor: 0.9
• Capacitor Height: 4.25 inches
