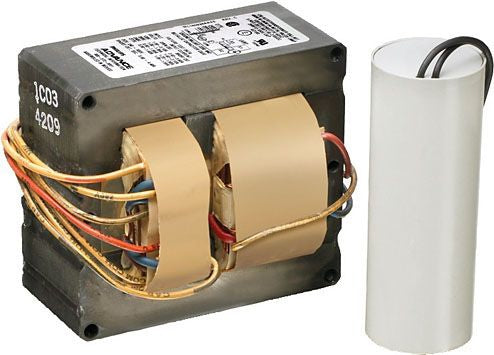

Advance 71A8753001 ADV 1000W HPS Ballast Kit

Product Description

The Advance 71A8753001 is a high-efficiency ballast kit designed for high pressure sodium lamps. It features a core and coil construction along with a magnetic ballast and oil filled capacitor. This ballast is suitable for a range of input voltages including one hundred twenty, two hundred eight, two hundred forty, two hundred seventy-seven, and four hundred eighty volts AC.

• Input Power: 1100 watts
• Minimum Starting Temperature: -40 degrees Fahrenheit
• Unit Size: Length six inches, Width six inches, Height four point three inches

Product Highlights

This ballast offers a constant wattage autotransformer circuit type, promoting stable performance for outdoor applications.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108711182

Technical Specifications

• Input Voltage: 120/208/240/277/480 Volt AC
• Input Current: 9.3/5.3/4.7/4.1/2.3 Amp
• Frequency Rating: 60 Hertz
• Lamp Type: High Pressure Sodium
• Wattage: 1000 Watt
• ANSI Code: S52
• Approval: UL 1029, CSA 22.2
• Insulation Class: H
