Product Description

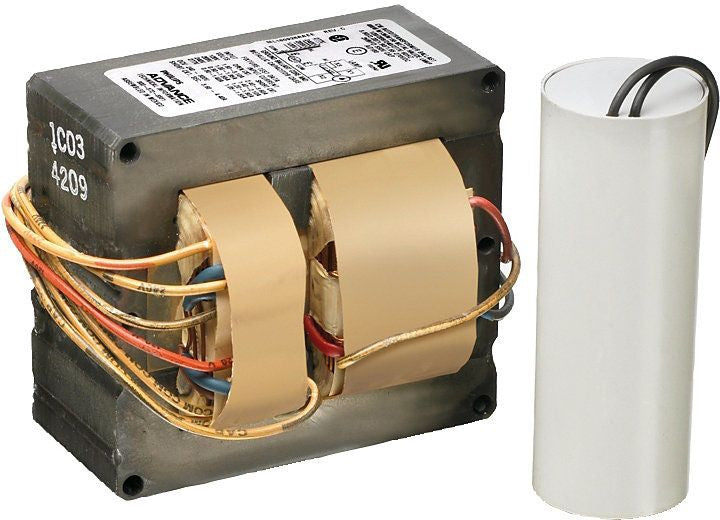

The Advance 71A8172001D is a 150 watt high-pressure sodium ballast designed for outdoor applications. This kit includes essential components such as the coil and core, magnetic ballast, and dry film capacitor for reliable performance.
- Input Voltage: 120/208/240/277 Volt AC
- Input Current: 2.8/1.6/1.4/1.3 Amp
- Compliance: UL 1029, CSA 22.2, RoHS Compliant
Product Highlights
This product is suitable for a range of high-pressure sodium lamps, ensuring effective illumination where needed.
Product Information
Standard Information
-
Manufacturer: Advance
-
UPC: 78108781721
Technical Specifications
-
Input Power: 190 Watt
-
Frequency Rating: 60 Hertz
-
Minimum Starting Temperature: -40 Deg F
-

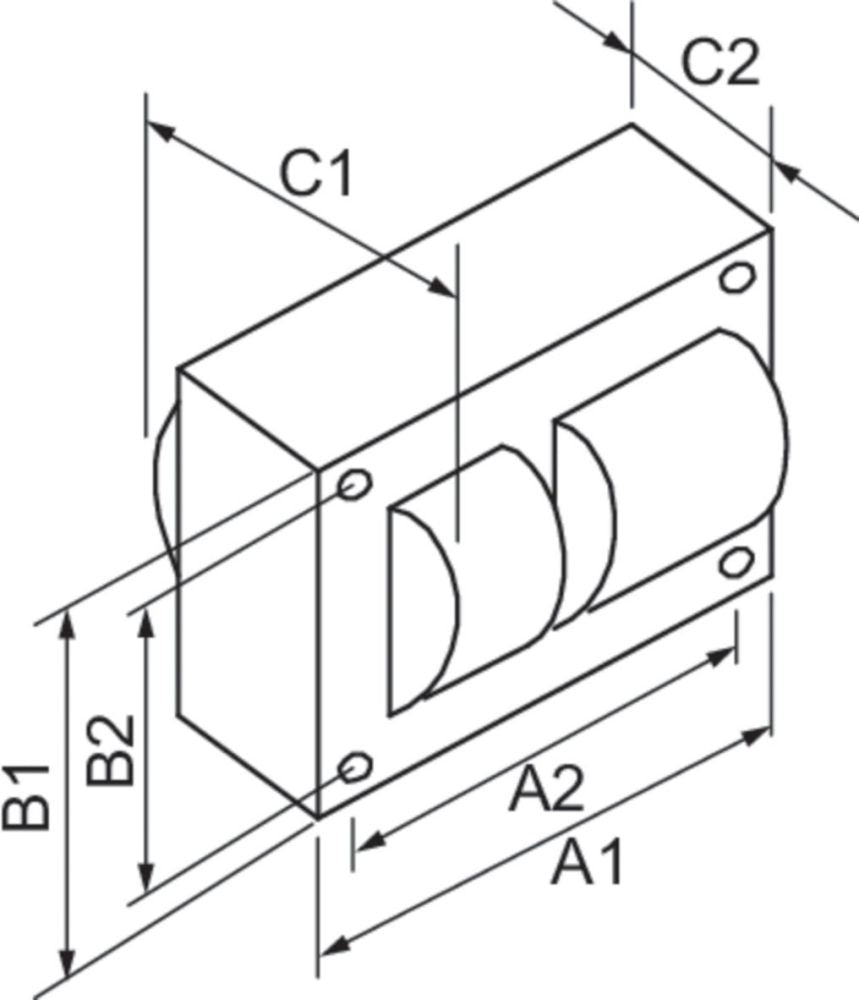

Size: 3.9 Inch Length x 4.2 Inch Width x 2.8 Inch Height
-
Ballast Factor: 1
-
Power Factor: 0.9
-
Insulation Class: H
-
Capacitance: 14 Megafarad
