ADVANCE 71A8142001D 1-150W 480 HPS BAL

Product Description

The Advance transformer 71A8142001D is designed for high-intensity discharge lighting applications. This ballast kit operates at an input voltage of four hundred eighty volts and is suitable for high-pressure sodium lamps with a wattage rating of one hundred fifty watts.

• Input current is 0.7 amps.
• Durable construction suitable for outdoor environments.
• UL and CSA approval ensures safety standards compliance.

Product Highlights

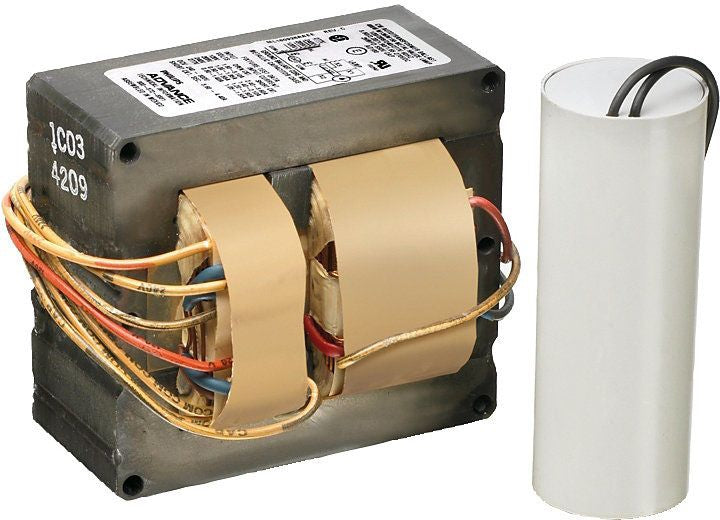

This ballast kit includes a magnetic ballast and a dry film capacitor. It offers a minimum starting temperature of negative forty degrees Fahrenheit and a ballast factor of one.

Product Information

Standard Information

• Manufacturer: ADVANCE
• UPC: 78108781421

Technical Specifications

• Input Voltage: 480 Volt AC
• Input Power: 188 Watt
• Frequency Rating: 60 Hertz
• Lamp Type: High Pressure Sodium
• Circuit Type: HX-HPF
• ANSI Code: S55

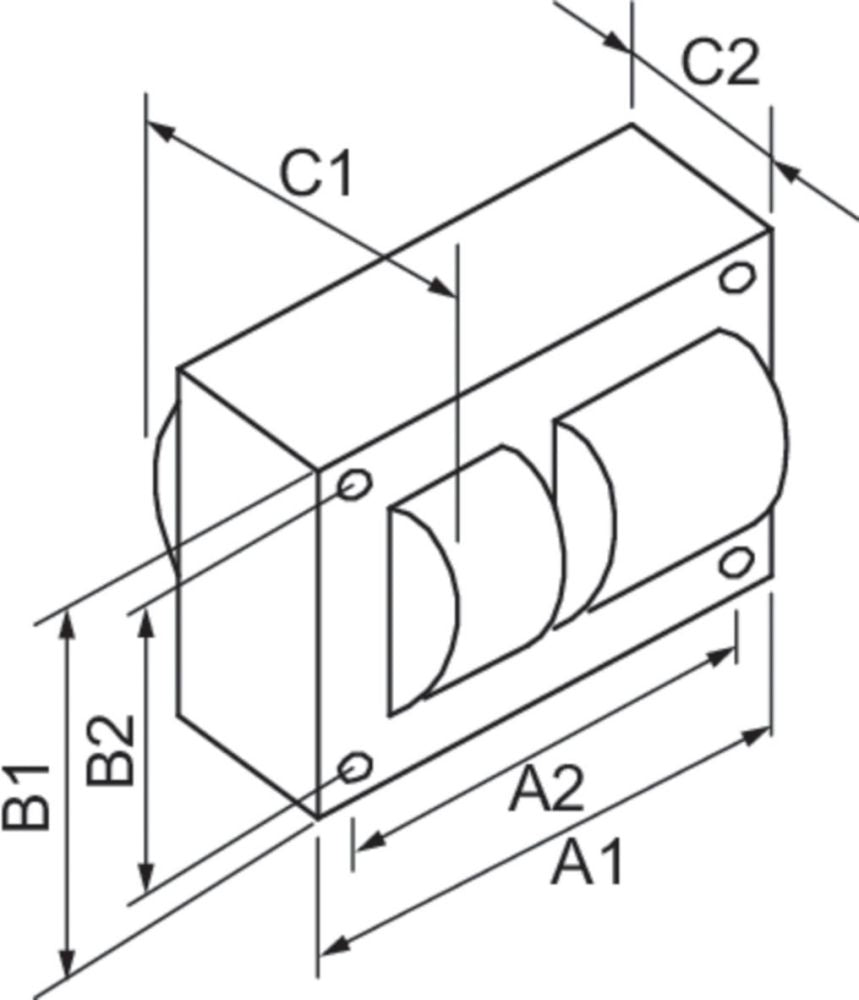

• Size: 3.9 inches Length x 4.3 inches Width x 2.8 inches Height
• Approval: UL 1029, CSA 22.2, RoHS Compliant
