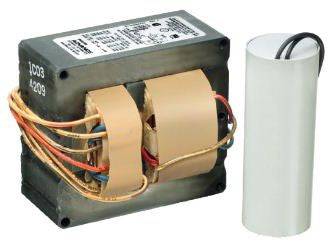

Advance 71A8091500D Core and Coil HID Ballast 1-100W 240/277

Product Description

The Advance 71A8091500D is a core and coil HID ballast designed for effective operation in various settings. This ballast supports input voltages of 120, 208, 240, and 277 volts. It is suitable for high pressure sodium lamps with a maximum wattage of one hundred watts.

• Input Current: 2.2/1.3/1.1/0.9 Ampere based on voltage
• Dimensions: Three and fifteen-sixteenths inches long, three and one-half inches wide, two and thirteen-sixteenths inches high
• Application: Ideal for high bay retail, manufacturing, gymnasiums, warehouses, and parking structures

Product Highlights

This ballast is UL and CSA approved, ensuring compliance with safety standards. It operates effectively even in low temperatures, with a minimum starting temperature of negative forty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108780915

Technical Specifications

• Input Power: 135 W
• Frequency Rating: 60 Hz
• Circuit Type: HX-HPF
• ANSI Code: S54
• Core Size: 3 inches x 4 inches
• Weight: 6.7 lb
• Country of Origin: CHN
• Currency Code: USD
