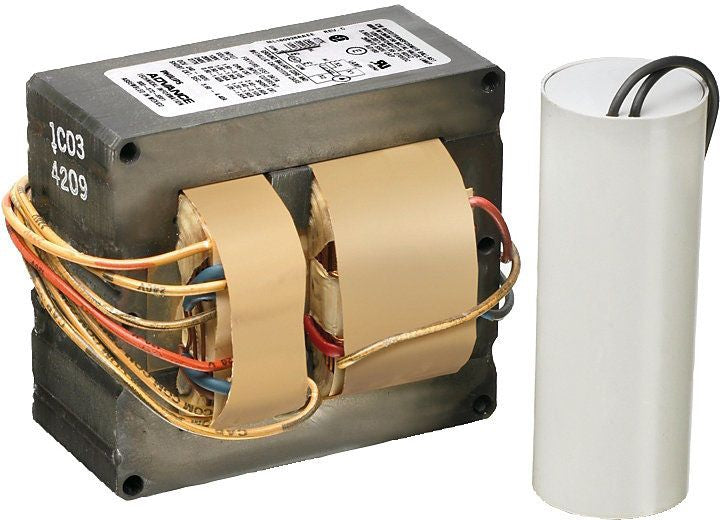

Advance 71A8007500D 1-100W 120 HPS BAL

Product Description

Advance 71A8007500D is a magnetic HID ballast designed for high-pressure sodium lamps. It operates at an input voltage of one hundred twenty volts with an input current of one point eight amps. This ballast is suitable for applications in high bay retail, manufacturing, gymnasiums, warehouses, parking structures, and outdoor lighting. Its compact size makes it easy to install in various settings.

• Input power of one hundred fifteen watts

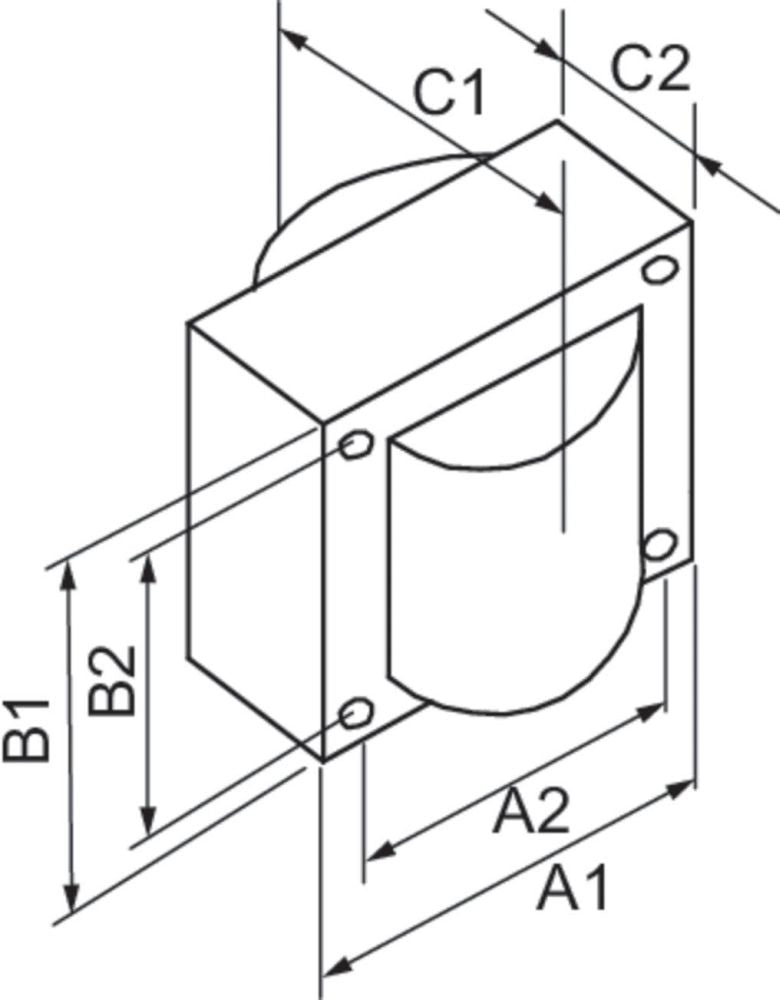

• Core size of two and five-eighth inches by two and three-sixteenths inches
• UL and CSA approved for safety

Product Highlights

This ballast has a power factor of zero point nine and provides a constant wattage deviation within trapezoid specifications.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108780075

Technical Specifications

• Input Voltage: 120 Volt
• Input Current: 1.8 Amp
• Input Power: 115 Watt
• Frequency Rating: 60 Hertz
• Lamp Type: High Pressure Sodium
• Wattage: 100 Watt

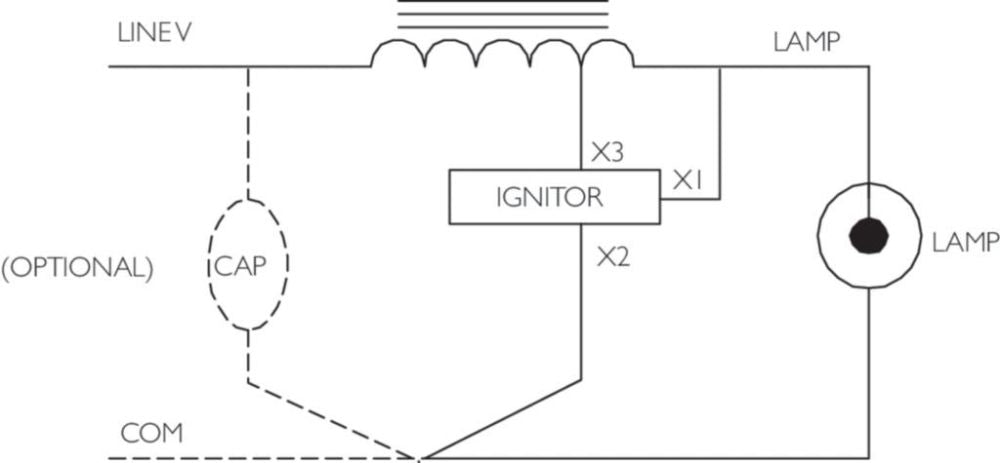

• Circuit Type: R-HPF
• ANSI Code: S54
• Minimum Starting Temperature: -40 Deg F
• Temperature Rating: 105 Deg C
• Approval: UL 1029, CSA 22.2
