Advance 71A7941500D 1-70W 480 HPS BAL

Product Description

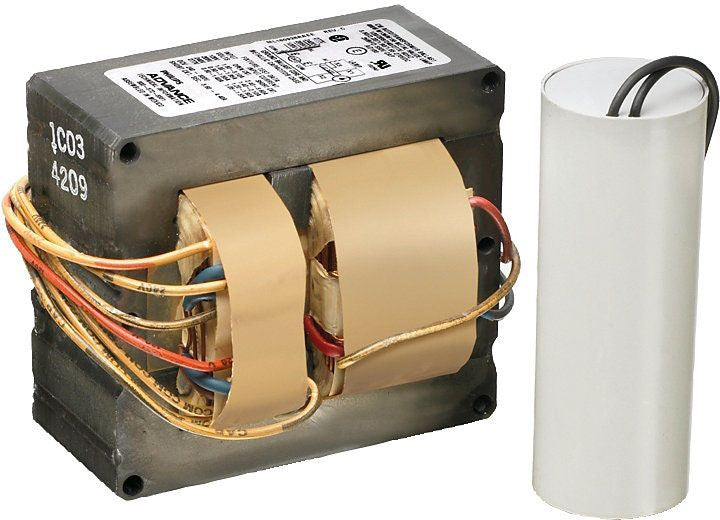

The Advance Transformer 71A7941500D is a core and coil high intensity discharge (HID) ballast designed for high pressure sodium lamps. This unit operates at an input voltage of 480 volts and an input current of 0.4 amperes. It is suitable for various applications including retail, manufacturing, gymnasiums, warehouses, and outdoor lighting.

• Input power of 93 watts
• Frequency rating of 60 Hz
• Meets UL 1029 and CSA 22.2 standards

Product Highlights

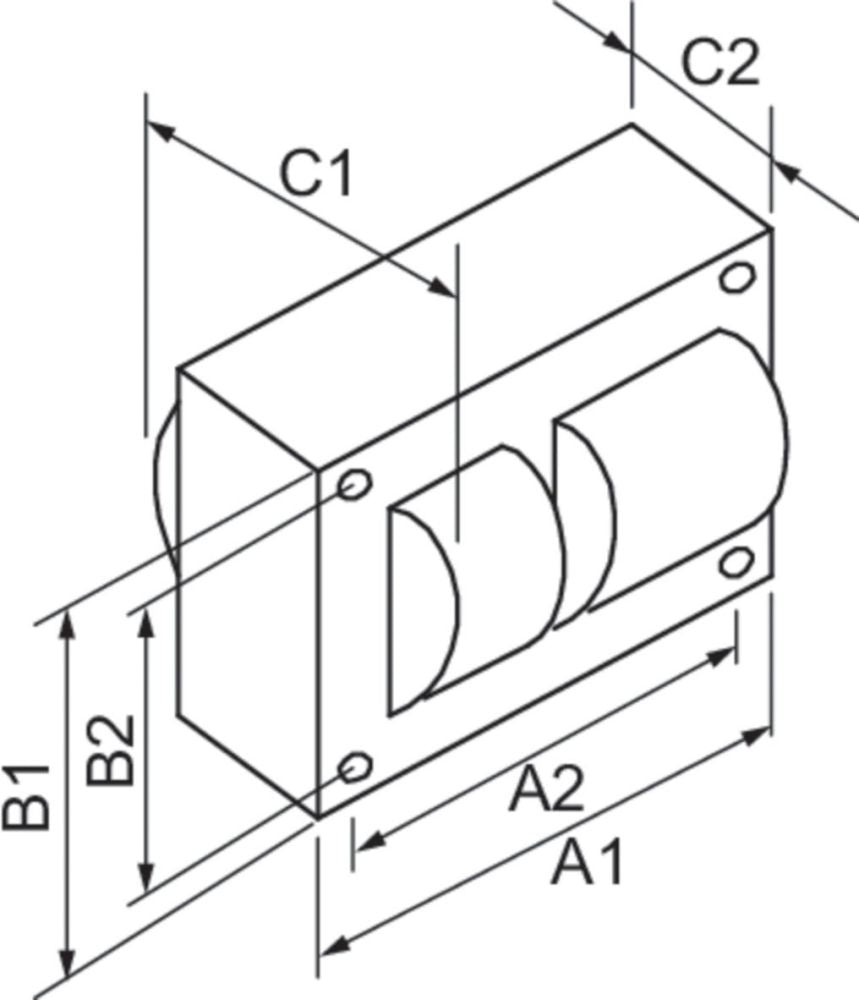

This ballast features a compact design, measuring three point nine inches in length, three point two inches in width, and two point eight inches in height, making it easy to install in different environments.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108779415

Technical Specifications

• Input Voltage: 480 V
• Input Current: 0.4 A
• Input Power: 93 W
• Frequency Rating: 60 Hz
• Lamp Type: High Pressure Sodium
• Wattage: 70 W

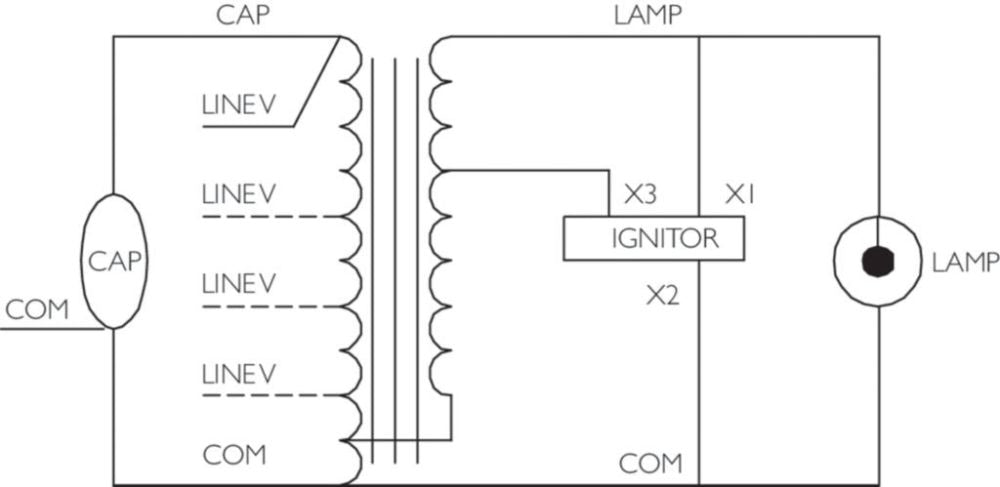

• Circuit Type: HX-HPF
• Minimum Starting Temperature: -40 Deg F
• Approval: UL 1029, CSA 22.2
• Core Size: 3 Inch x 4 Inch
