Product Description

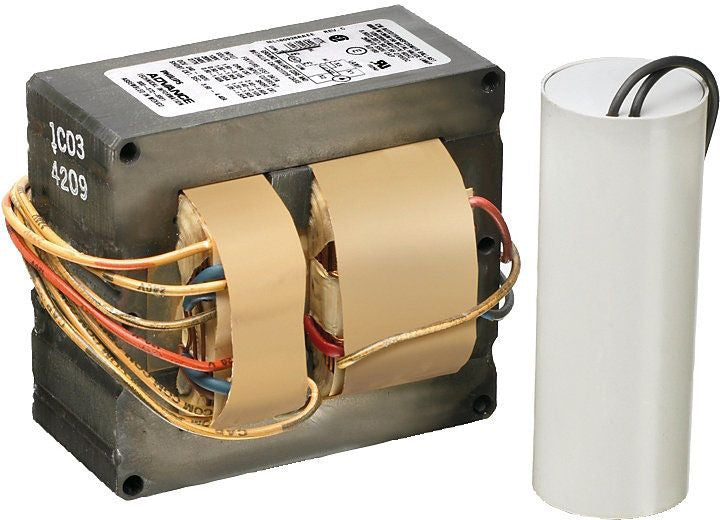

The Advance 71A6742001 provides a reliable core and coil HID ballast kit. It is designed for use with metal halide lamps, delivering efficient performance for outdoor applications.
- Input Voltage: 480 Volt AC
- Input Power: 1625 Watt
- Ballast Factor: 1
Product Highlights
This ballast includes a coil, core, magnetic ballast, and an oil-filled capacitor, ensuring robust functionality.
Product Information
Standard Information
-
Manufacturer: ADVANCE
-
UPC: 78108767421
Technical Specifications
-
Input Current: 3.4 Amp
-
Frequency Rating: 60 Hertz
-
Lamp Type: Metal Halide
-

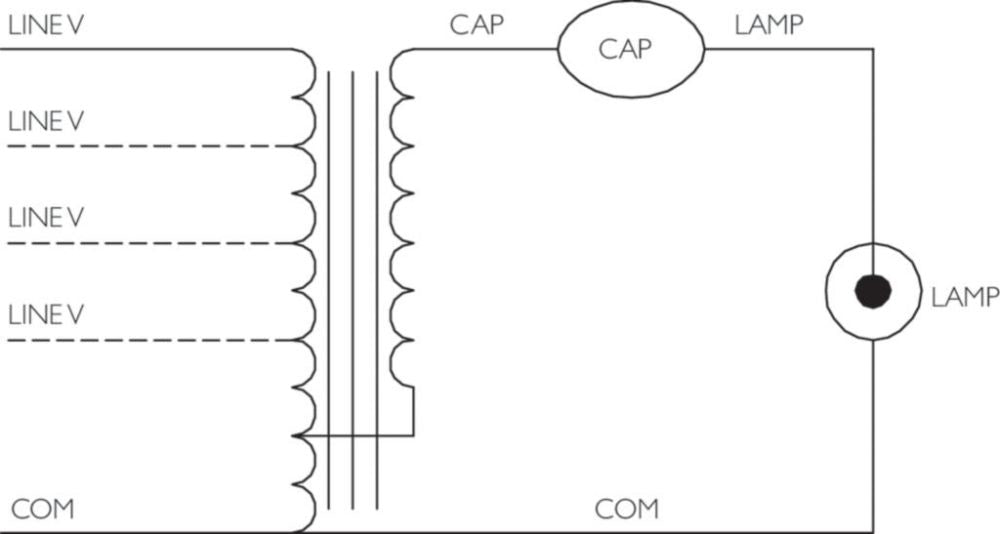

Circuit Type: Constant Wattage Autotransformer
-
ANSI Code: M48
-
Minimum Starting Temperature: -20 Deg F
-

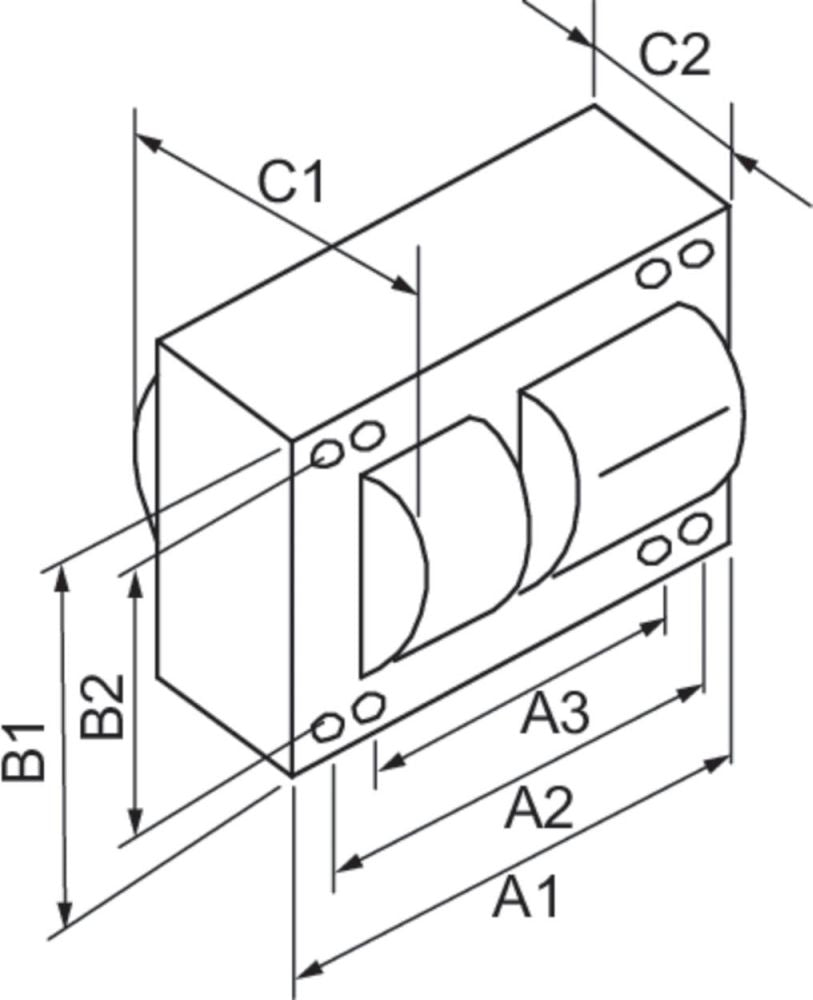

Size: 6 Inches Length x 6.7 Inches Width x 4.3 Inches Height
-
Approval: UL 1029, CSA 22.2, RoHS Compliant
-
Core Size: 4-1/4 Inches x 6 Inches
-
Power Factor: 0.9
-
Fuse Current: 10 Amp at 480 Volt
-
Open Circuit Voltage Rating: 450 Volt
-
Insulation Class: H
-
Capacitance: 32 Megafarad
-
Temperature Rating: 90 Deg C (Dry Capacitor)
-
Application: Outdoor
