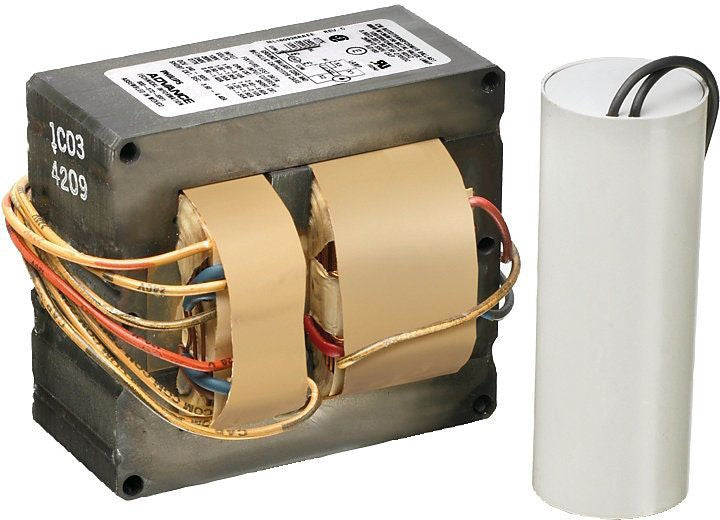

Advance 71A6452001D 750W MH Ballast MH

Product Description

The Advance 71A6452001D is a 750 watt metal halide ballast suitable for various outdoor applications. This magnetic ballast operates efficiently with an input voltage range of one hundred twenty to four hundred eighty volts AC and provides a consistent power delivery for metal halide lamps.

• Input current ranges from one point eight to seven amps.
• Designed for outdoor use with a starting temperature of minus twenty degrees Fahrenheit.
• Compliant with UL 1029 and CSA 22.2 standards.

Product Highlights

This ballast features a super constant wattage autotransformer circuit type and a ballast factor of one. It is ideal for use with pulse start metal halide lamp applications.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108705749

Technical Specifications

• Input Voltage: 120/208/240/277/480 Volt AC
• Input Current: 7/4/3.5/3/1.8 Amp
• Input Power: 818 Watt
• Frequency Rating: 60 Hertz
• Lamp Type: Pulse Start Metal Halide

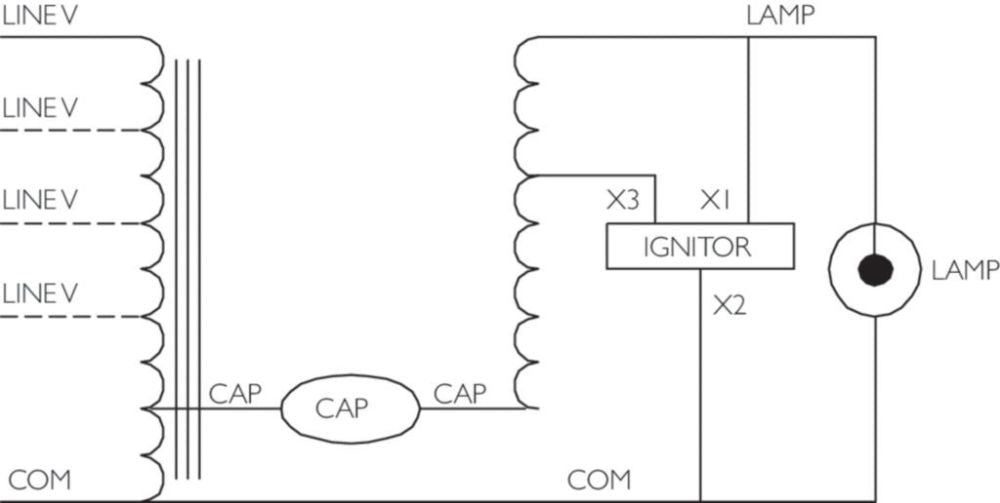

• Circuit Type: Super Constant Wattage Autotransformer
• ANSI Code: M149
• Minimum Starting Temperature: -20 Deg F

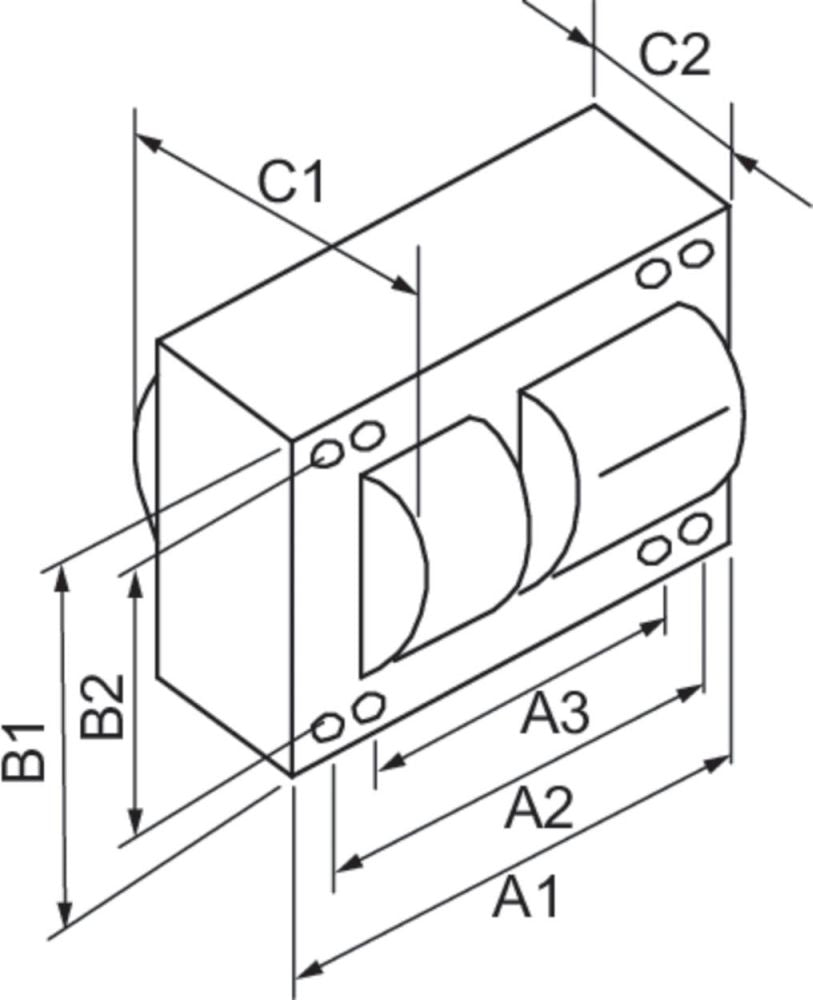

• Dimensions: 6 inches Length x 4.25 inches Width x 4.3 inches Height
• Core Size: 4-1/4 inches x 6 inches
• Capacitance: 28 Megafarad
• Temperature Rating: 105 Deg C (Dry Capacitor)
• Number of Lamps: 1
