Product Description

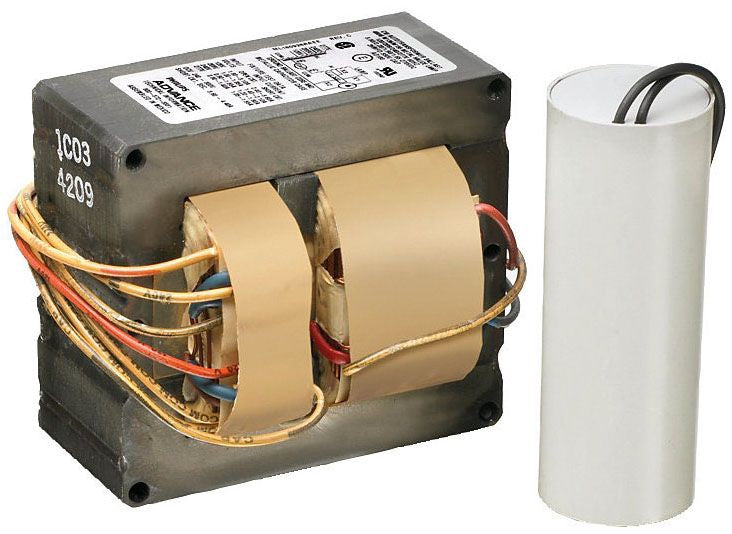

The Advance Transformer 71A6071001D is a core and coil HID ballast kit designed for efficient lighting. This ballast is ideal for metal halide lamps with a wattage of four hundred. It supports multiple input voltages and is perfect for outdoor applications.
- Input Voltage: 120/208/240/277 Volt AC
- Input Power: 455 Watt
- Approval: UL 1029, CSA 22.2
Product Highlights

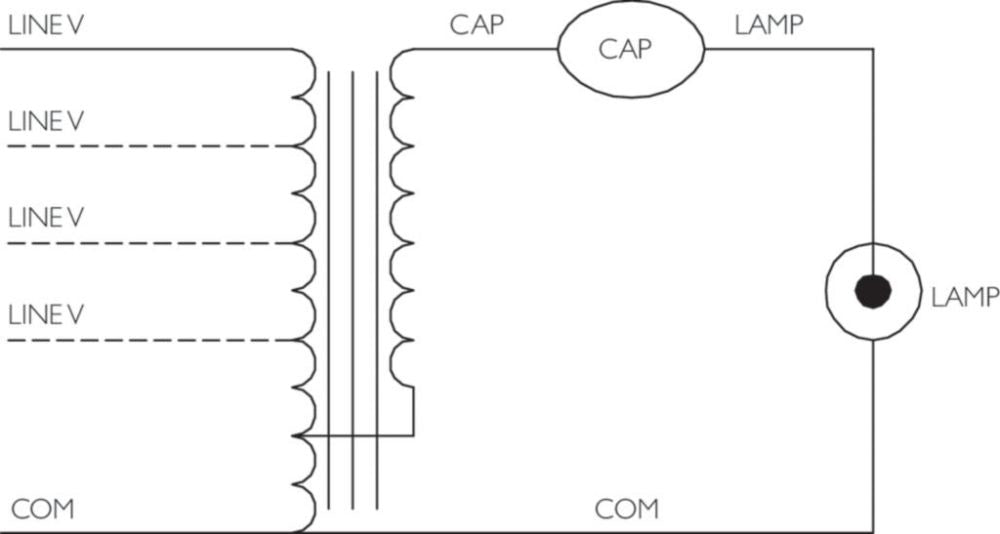

This ballast kit ensures reliable performance and compliance with safety standards. It operates at a frequency rating of sixty Hertz and has a constant wattage autotransformer circuit type.
Product Information
Standard Information
-
Manufacturer: Advance
-
UPC: 78108709649
Technical Specifications
-
Input Current: 4/2.3/2/1.7 Amp
-
Frequency Rating: 60 Hertz
-
ANSI Code: M59/M165/C185 (Philips All Start)
-
Minimum Starting Temperature: -20 Deg F
-

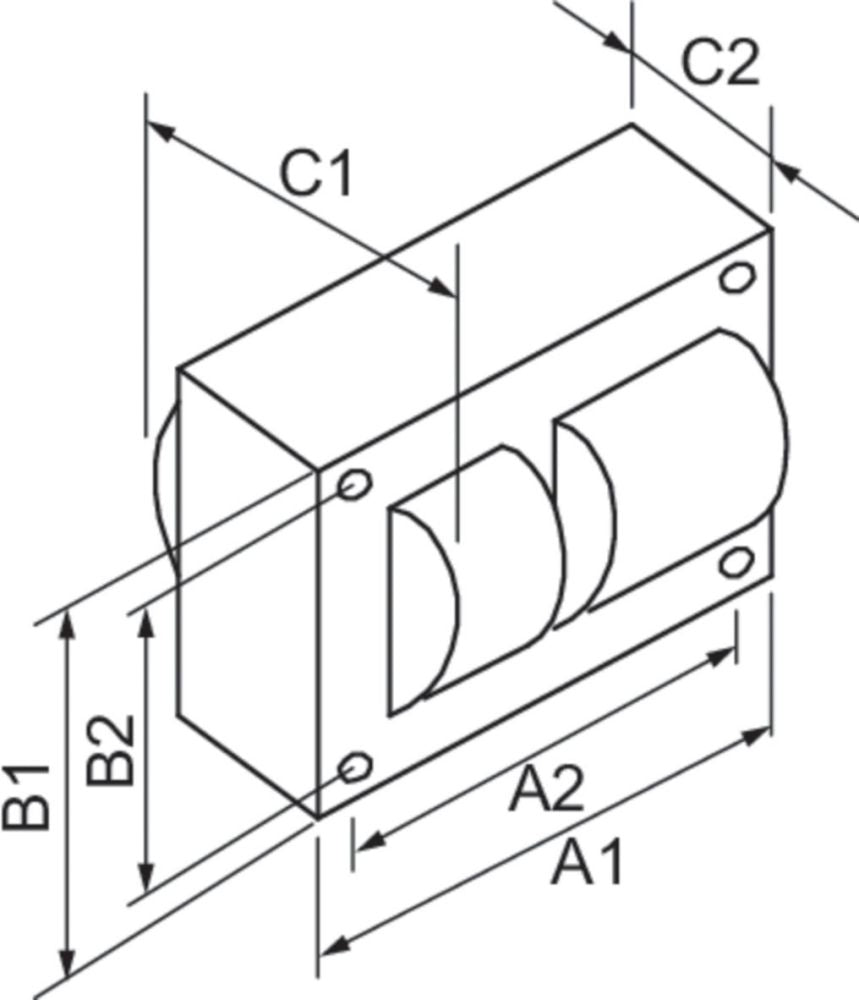

Size: 4.8 inches Length x 4 inches Width x 4.3 inches Height
-
Core Size: 4-1/4 inches x 4-3/4 inches
-
Ballast Factor: 1
-
Power Factor: 0.9
-
Temperature Rating: 105 Deg C (Capacitor)
-
Application: Outdoor
