Product Description

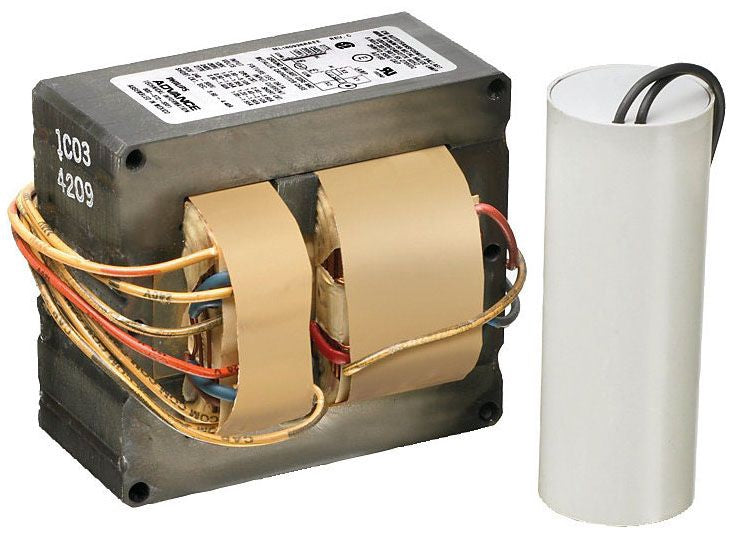

The ADVANCE transformer model 71A6052001D is a core and coil HID ballast kit. This kit includes a magnetic HID ballast and a dry film capacitor suitable for multiple input voltages. The input voltage ranges from one hundred twenty to four hundred eighty volts, accommodating various settings. This device supports a lamp wattage of four hundred watts, making it ideal for different lighting applications.
- Input Voltage: 120/208/240/277/480 Volts
- Input Power: 454 Watts
- Approval: UL 1029, CSA 22.2
Product Highlights
Designed for versatile use in high bay retail, manufacturing, gymnasiums, and warehouses.
Product Information
Standard Information
-
Manufacturer: ADVANCE
-
UPC: 78108708769
Technical Specifications
-
Input Current: 3.8/2.2/1.9/1.7/1 Amp
-
Frequency Rating: 60 Hertz
-
Minimum Starting Temperature: -20 Deg F
-

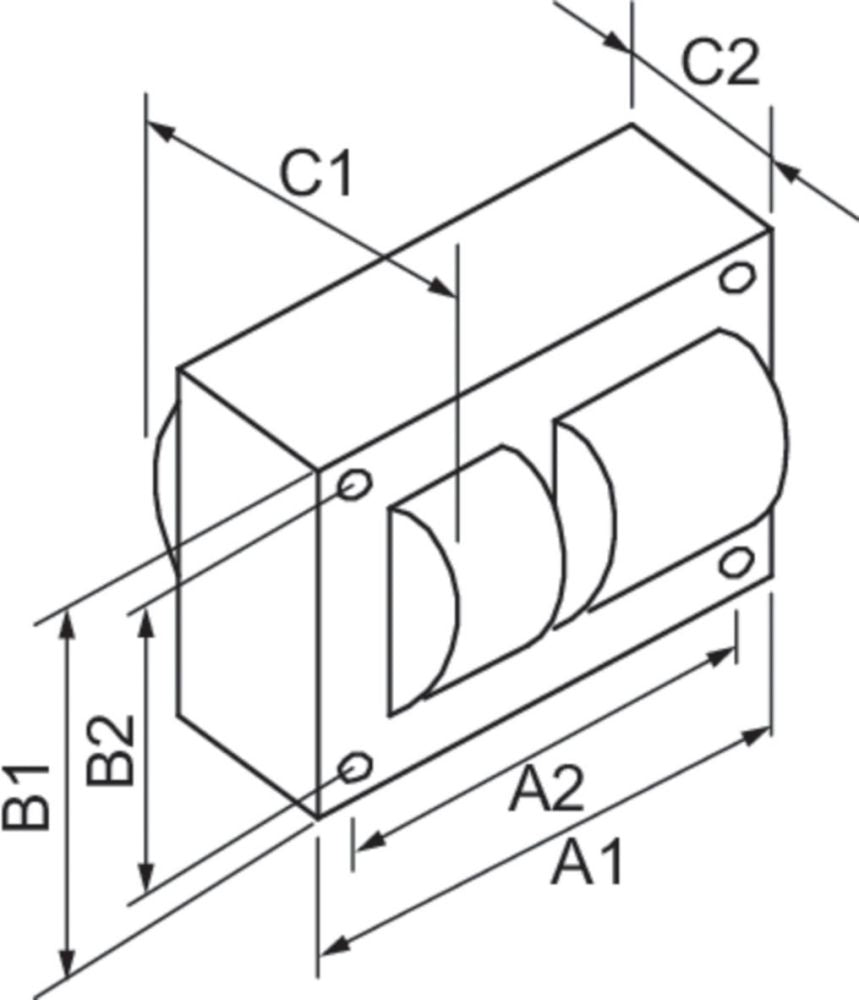

Size: 4-3/4 Inch Length x 4-1/4 Inch Width x 4-1/4 Inch Height
-
Ballast Factor: 1
-
Power Factor: 0.9
-
Constant Wattage Deviation: 10 Percent
-
Number of Lamps: 1
-
Temperature Rating: 105 Deg C
