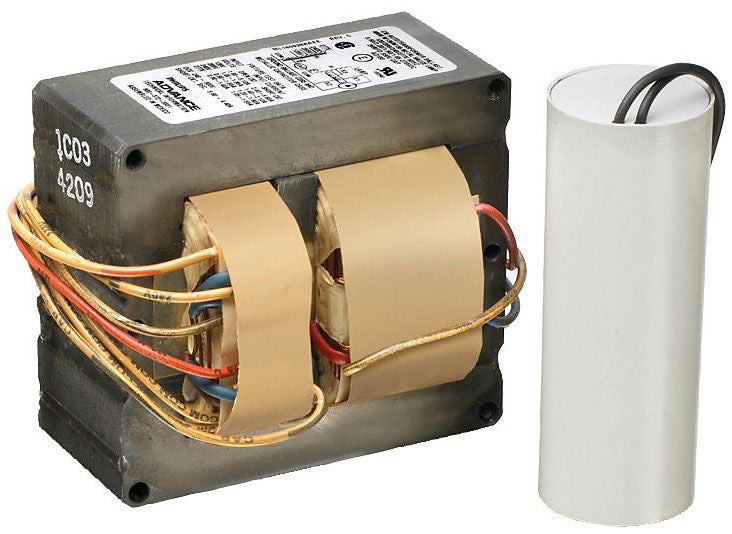

Advance 71A5771001D 250W Quad MH Bal Kit

Product Description

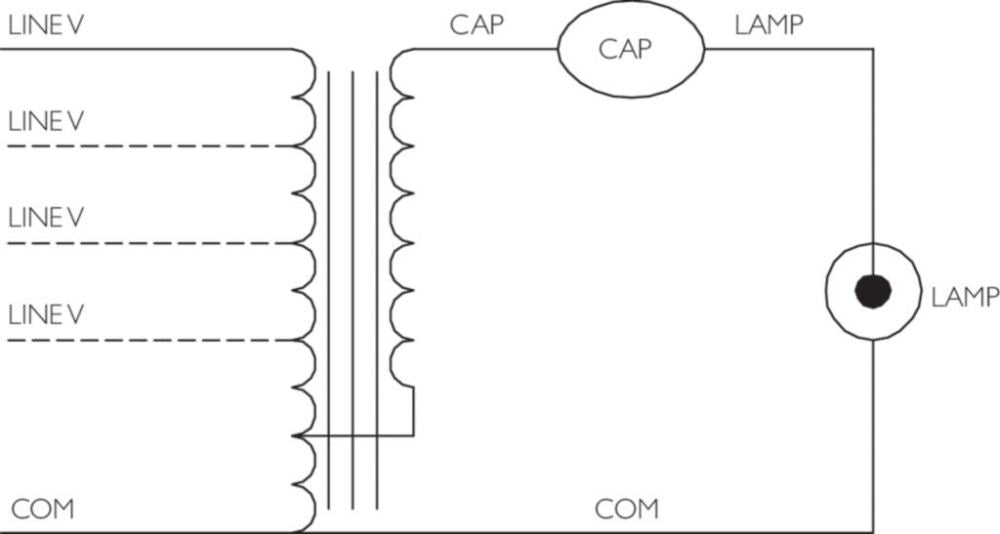

The Advance Transformer 71A5771001D is a core and coil HID ballast kit designed for effective operation in various lighting applications. This unit supports multiple input voltages including 120, 208, 240, and 277 volts AC. It features a constant wattage autotransformer circuit type, making it suitable for metal halide lamp wattages up to 250 watts. The robust components ensure reliability and compliance with safety standards.

• Input voltage range: 120/208/240/277 Volt AC.
• Weather-resistant design for outdoor applications.
• Efficient power factor of 0.9.

Product Highlights

This ballast kit helps in managing the electrical requirements of HID lamps efficiently. It is essential for installations in commercial and outdoor settings.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108709647

Technical Specifications

• Input Current: 2.6/1.5/1.3/1.1 Amp
• Input Power: 294 Watt
• Frequency Rating: 60 Hertz
• ANSI Code: M58/C184
• Minimum Starting Temperature: -20 Deg F

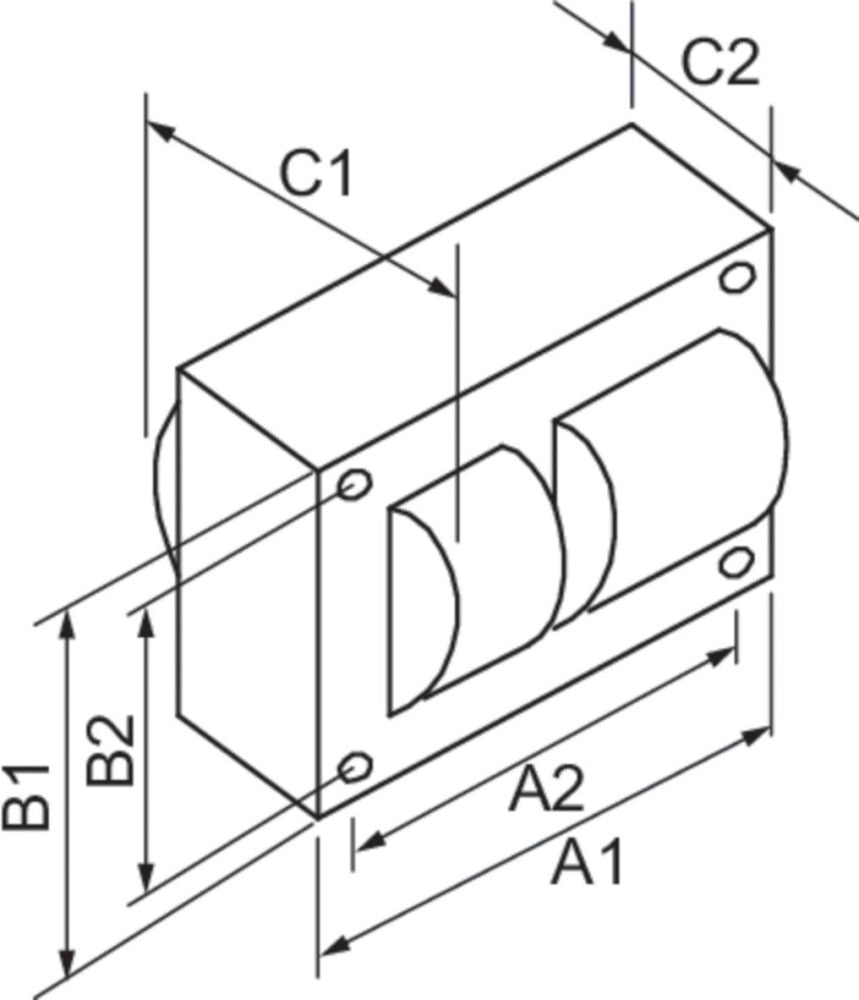

• Size: 3.9 Inch Length x 4.2 Inch Width x 2.8 Inch Height
• Insulation Class: H
• Capacitance: 15 Megafarad
• Temperature Rating: 105 Deg C (Dry Capacitor)
