Advance 71A5771-001 Metal Halide Ballast 250W M58 Quad Tap

Product Description

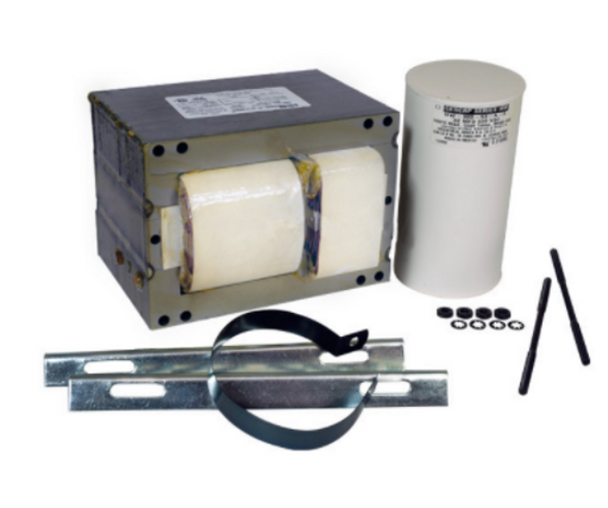

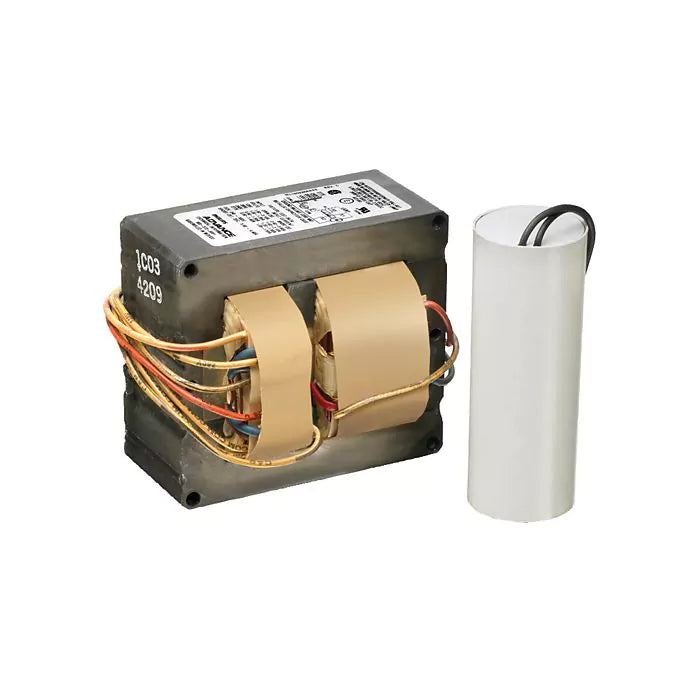

The ADVANCE 71A5771-001 metal halide ballast is a quad tap 120V/208V/240V/277V, 250W M58 metal halide ballast. This core and coil ballast kit features a 71A5791 core & coil. It is suitable for use with metal halide HID bulbs. The kit includes a capacitor and mounting brackets.

• Features 71A5791 Core & Coil
• Replacement kit with dry film capacitor
• Suitable for outdoor use

Product Highlights

This ADVANCE metal halide ballast is designed for 250W M58 metal halide lamps and operates on a quad tap voltage of 120/208/240/277V.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: 71A5771-001
• Country of Origin: China

Technical Specifications

• Our Part No: BS2-ADV-71A5771001D
• Mfr Part #: 71A5771001D
• Manufacturer Material Code: 913700534909
• Fixture Type HID: Metal Halide Ballast
• Input Voltage: 120/208/240/277V AC
• Watts: 250
• Lamp: 250W M58 Metal Halide
• ANSI Code: M58
• Start Method: Probe Start
• Order Code: 71A5771001D
• Brand: Advance
• Mfg #: 71A5771001D
• Certifications: UL
• Lamps: 250 Watt M58 Metal Halide
• Case Size: 1
• Ballast Lamp Type: Metal Halide
• Ballast Max. Lamp Watts: 250
• Ballast Start Type: Probe
• For Use With: Metal Halide HID Bulbs
• Input Watts: 294 W
• Operating Amps @ 277V: 1.1 A
• Insulation Class: H
• Ballast Type: Magnetic
• Number of Lamps: 1
• Min. Starting Temp.: -20 Degrees F
• Includes: Capacitor, Coil, Core, Hardware, Mounting Bracket
• Hz: 60
• Ballast Lamp Watts: 250
• Operating Amps @ 208V: 1.5 A
• Operating Amps @ 120V: 2.6 A
• Operating Amps @ 240V: 1.3 A
• Figure Number: A25
• Ballast Family: HID Magnetic
• Operating Amps @ 480V: 0.7 A
• Thermal Protection: No
• Fixture Ballast Type: Core and Coil
• Ballast Bulb Type: Metal Halide
• Brand and Series: Advance
• Ballast Factor: 1
• Standards: CSA Certificate, RoHS Compliant, ULR
• Housing Material: Steel
• Min. Bulb Watts: 250 W
• Max. Bulb Watts: 250 W
• Frequency: 60 Hz
• Number of Bulbs Supported: 1
• Starter Required: No
• Part #: 71A5771-001D
• Category: Ballast/Ignition Transformer
