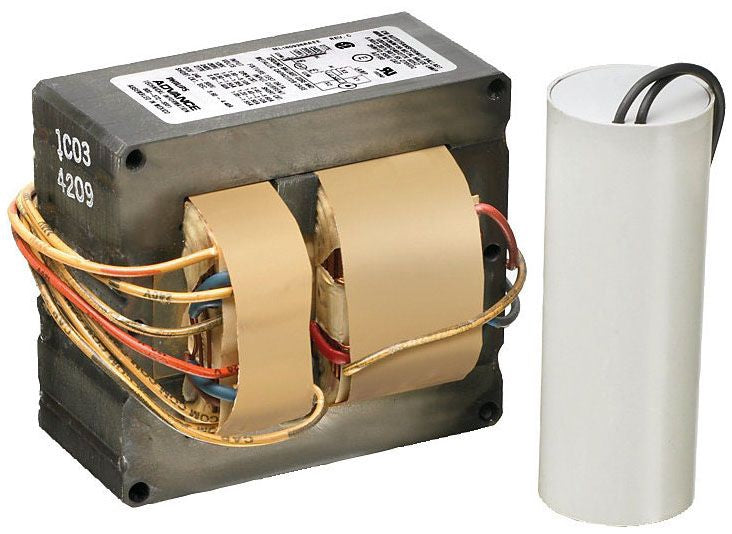

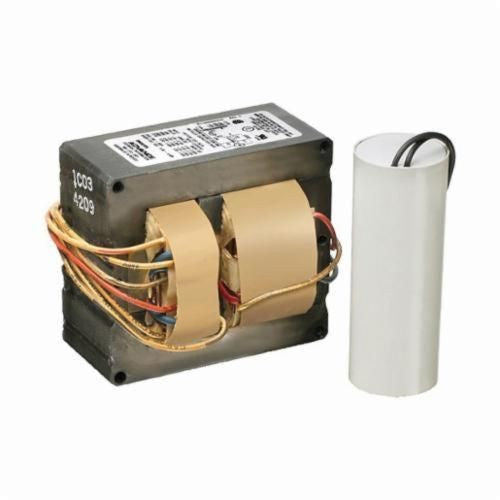

Advance 71A5593001D metal halide ballast 175 W

Product Description

The Advance 71A5593001D is a magnetic HID ballast designed for metal halide lamps. This ballast provides the correct starting and operating voltage for 175 W lamps. It supports 120/208/240/277 VAC input voltage and operates at 60 Hz. The kit includes a dry film capacitor and bracket for easy installation in lighting luminaires and outdoor applications.

• Operates HID metal halide lamps
• Supports 120/208/240/277 VAC input

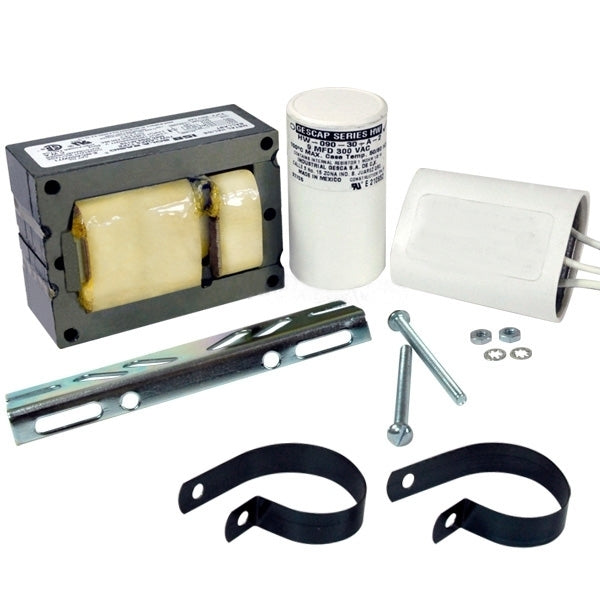

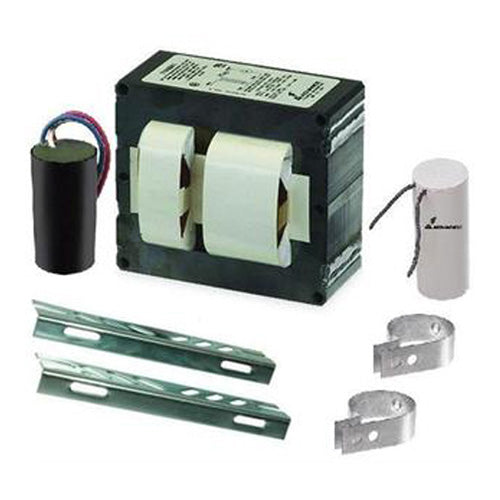

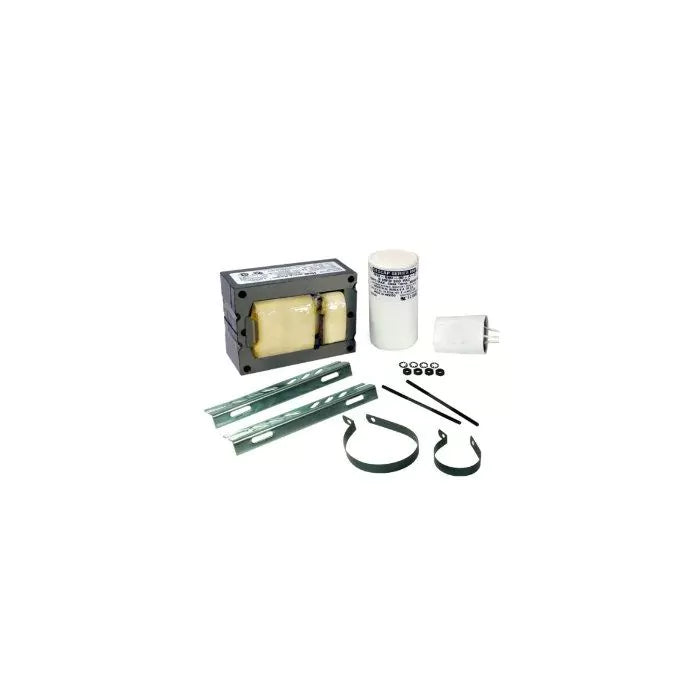

• Includes capacitor and bracket kit

Product Highlights

This magnetic ballast is ideal for replacing or retrofitting lighting systems using metal halide lamps in commercial and industrial settings.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: 71A5593001D
• Country of Origin: CHN

Technical Specifications

• Manufacturer: ADVANCE
• MPN (Part No.): 71A5593-001D
• Type: Magnetic HID
• Lamp Type: Metal Halide
• Lamp Wattage: 175 W
• Wattage: 175 W
• Voltage Rating: 120/208/240/277 V
• Amperage Rating: 1.8/1.05/0.9/0.8 A
• Frequency Rating: 60 Hz
• Start Type: Pulse
• Ballast Factor: 1
• Power Factor: 0.9
• Thermal Protection: Class P
• Dimmable: No
• Minimum Starting Temperature: -20 deg F
• Number of Lamps: 1
• ANSI Code: M137/M152
• Application: Lighting Luminaire Component
• Standard: ULR;CSA certificate;RoHS Compliant
• Microfarad: 11 MFD
• Special Features: Suitable for Outdoor; UL Listed; CSA; RoHS
• Circuit Type: SUPER-CWA
• Insulation Class: 180ºC
• Capacitor Value: 11
• Capacitor Voltage Rating: 370 V
• Capacitor Temperature Rating: 105ºC
• Agency Certification: RU, CSA, UL
