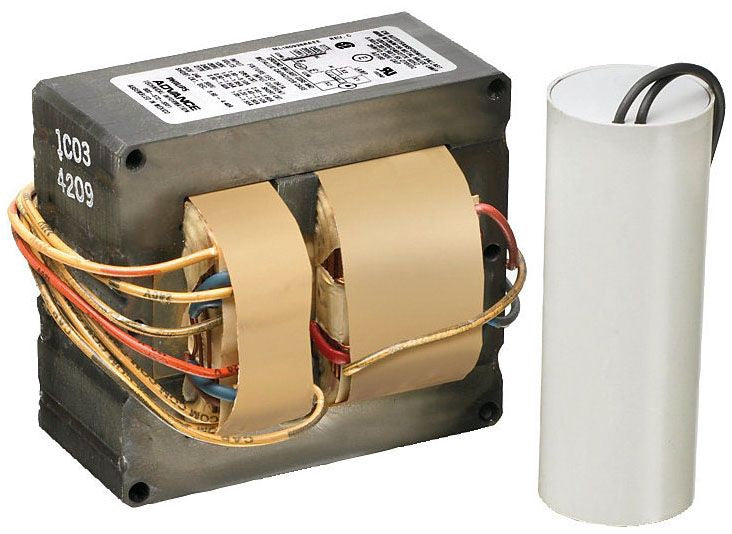

Advance 71A5540001D 175W 480V MH BAL KT

Product Description

The Advance transformer with MPN 71A5540001D is designed for use in metal halide applications. It serves as a core and coil HID ballast kit. This ballast accommodates input voltage of four hundred eighty volts AC.

• Ballast is suitable for 150-175 watt metal halide lamps
• Features an autotransformer circuit type
• Approved by UL 1029 and CSA 22.2

Product Highlights

This ballast has a compact size and is ideal for outdoor applications.

Product Information

Standard Information

• Manufacturer: ADVANCE
• UPC: 78108709644

Technical Specifications

• Input Voltage: 480 Volt AC
• Input Current: 0.5 Amp
• Input Power: 210 Watt
• Frequency Rating: 60 Hertz
• Lamp Type: Metal Halide

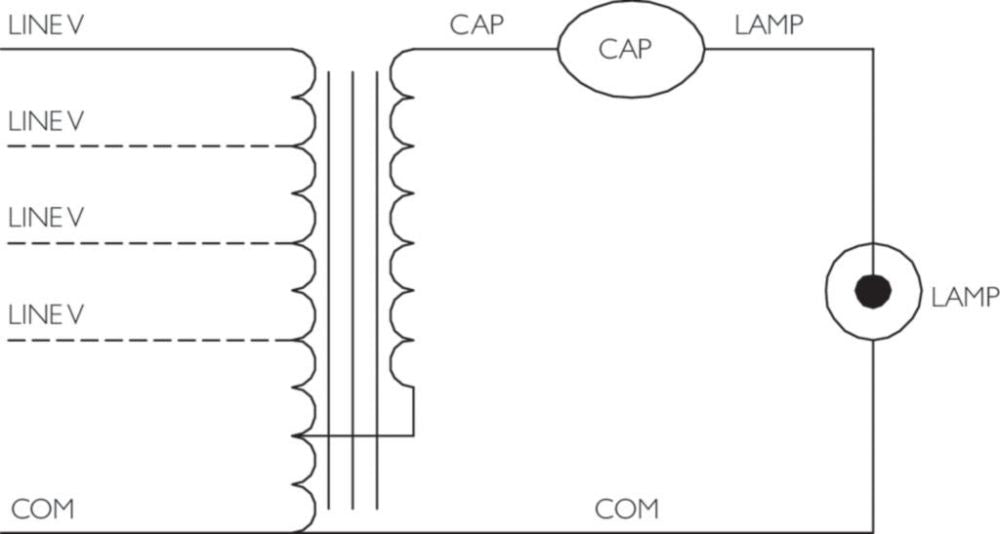

• Circuit Type: Constant Wattage Autotransformer
• ANSI Code: M57/M107
• Minimum Starting Temperature: -20 Deg F

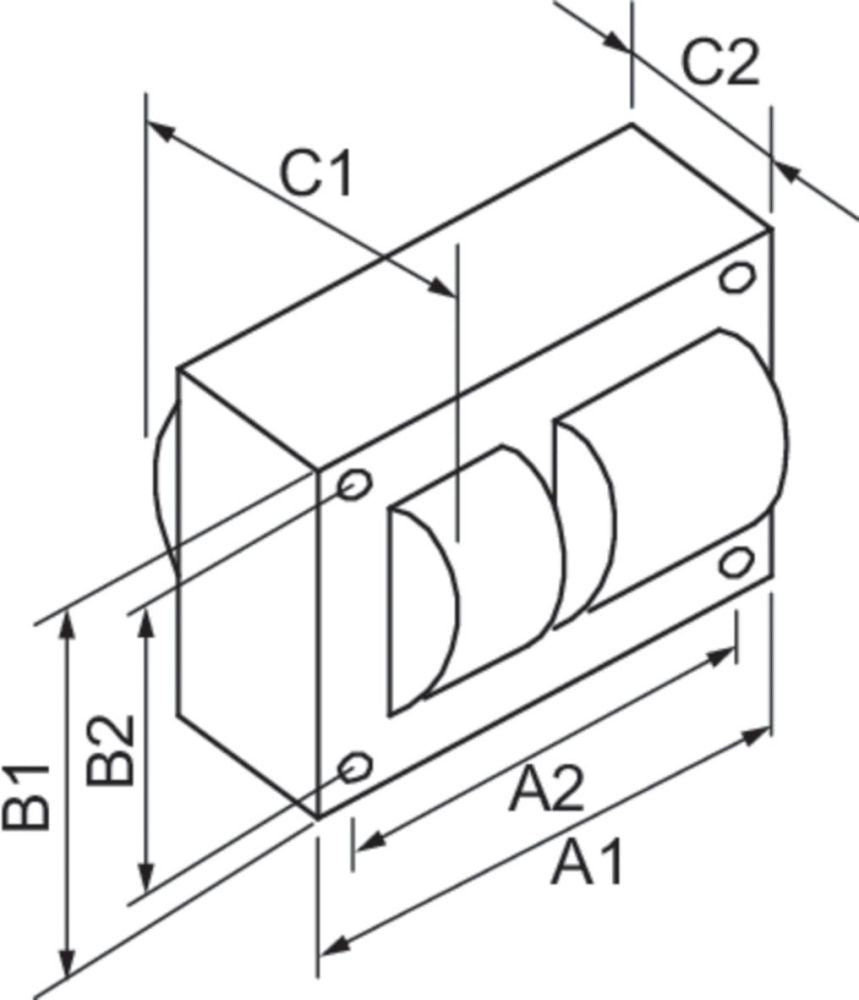

• Size: 3.9 Inch Length x 4 Inch Width x 2.8 Inch Height
• Approval: UL 1029, CSA 22.2
• RoHS Compliant
• Core Size: 3 Inch x 4 Inch
• Ballast Factor: 1
• Power Factor: 0.9
• Temperature Rating: 105 Deg C
