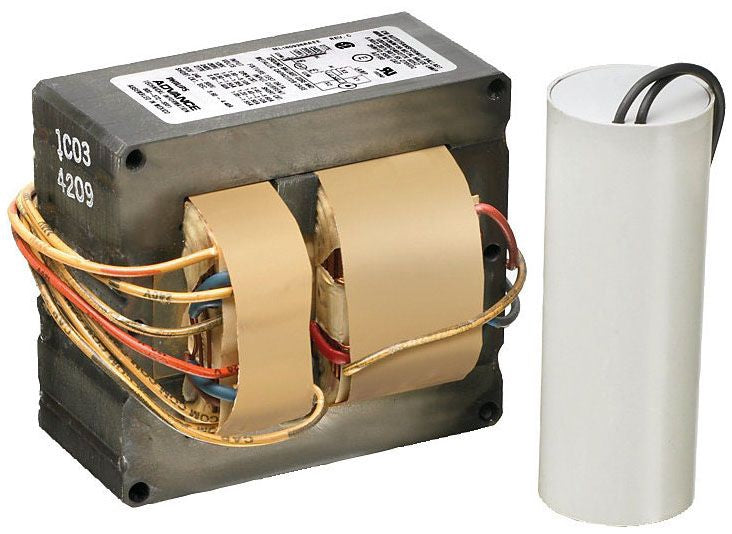

Product Description
The ADVANCE 71A5340500DT is a magnetic HID ballast designed for use with metal halide lamps. It operates at an input voltage of 480 volts and has a current rating of 0.6 amps. This transformer features a power input of 132 watts and operates at a frequency of 60 hertz.
- Input Voltage: 480 Volts
- Output Wattage: 100 Watts
- UL 1029 Approved
Product Highlights
This ballast supports a metal halide lamp with an ANSI code of M90/M140 and is ideal for outdoor applications.
Product Information
Standard Information
-
Manufacturer: ADVANCE
-
UPC: 78108709409
Technical Specifications
-
Input Current: 0.6 Amp
-
Input Power: 132 Watt
-

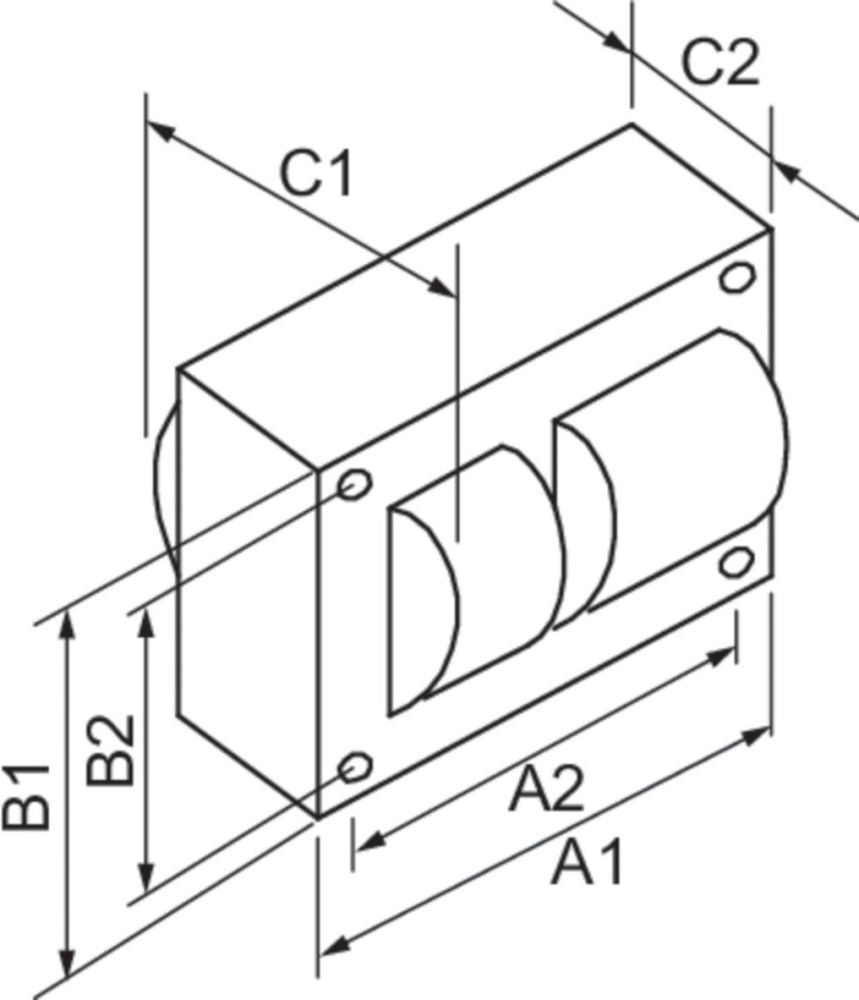

Nominal Length: 3.9 inches
-
Nominal Width: 2.9 inches
-
Height: 2.8 inches
-
Temperature Rating: 105 °C
-
Minimum Starting Temperature: -20 °F
-
Ballast Factor: 1
-
Power Factor: 0.9
-
Number of Lamps: 1
-
Tapping Voltage: 120 Volts
