Advance 71A5105500DP HID Magnetic Ballast 50 W 120 VAC

Product Description

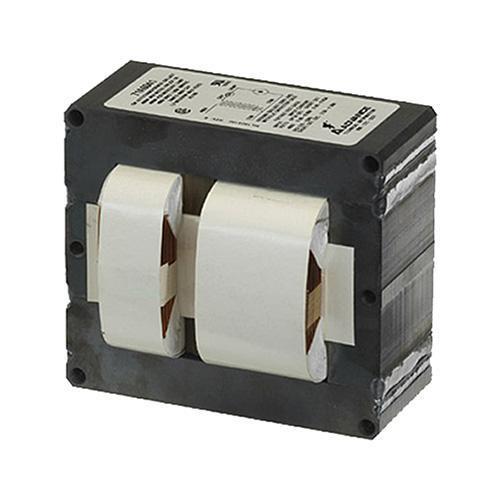

The Advance 71A5105500DP is a magnetic HID ballast manufactured by Signify. This ballast operates HID Metal Halide lamps at a power of fifty watts and is designed for use with 120 VAC input. It features a pulse start function and is suitable for various applications that require reliable lighting solutions.

• Operates HID Metal Halide lamps at fifty watts.
• Designed for 120 VAC power input.
• Includes pulse start technology for enhanced performance.

Product Highlights

This ballast provides the necessary starting and operating voltage to sustain light from HID lamps. It features a compact design for easy installation in various lighting setups.

Product Information

Standard Information

• Manufacturer: Signify
• Brand: Advance

Technical Specifications

• Type: Magnetic
• Wattage: 67 W
• Lamp Type: HID Metal Halide
• Lamp Wattage: 50 W
• Voltage Rating: 120 VAC
• Amperage Rating: 0.65 A
• Frequency Rating: 60 Hz
• Minimum Starting Temperature: -30 deg F
• Number of Lamps: 1
• Power Factor: 0.85
• Ballast Grade: ANSI M110
• Ballast Factor: 1
• Lamp Base Type: 71A5105P
• Thermal Protection: Class P

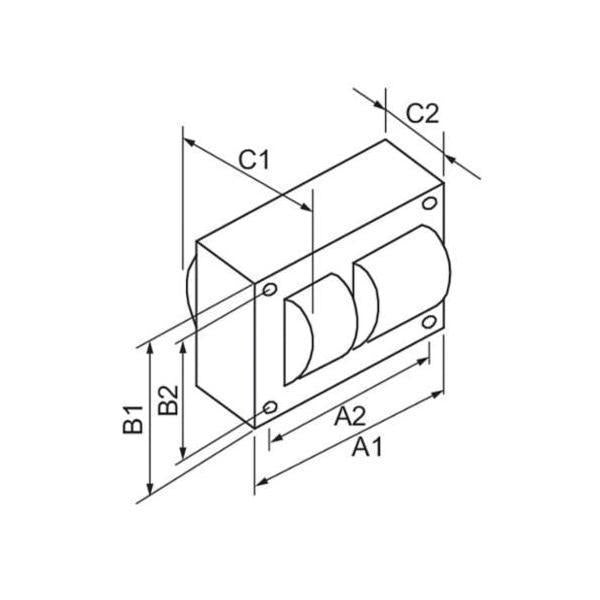

• Dimensions: 4.1 in L x 2.04 in W x 2.25 in H
• Dimmable: No
