Ads X2-125160100 Polyethylene Pipe 1.25 in 160 Psi 100 Ft

Product Description

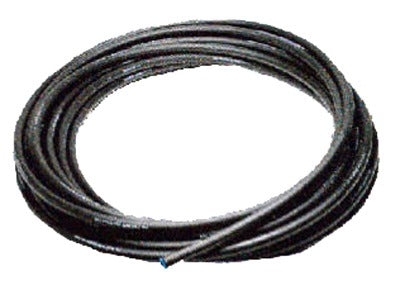

The ADVANCED DRAINAGE SYSTEMS X2-125160100 is a 1.25-inch diameter polyethylene pipe coil rated for 160 PSI working pressure. Built to SIDR 11.5 dimensional standards and manufactured from 4710 better-grade raw material, this pipe delivers consistent wall thickness and pressure integrity across the full 100-foot coil. It carries NSF (National Sanitation Foundation) approval, making it suitable for potable water applications. Plumbers and water-service contractors install this pipe in underground service lines, irrigation systems, and rural water distribution runs where a flexible, pressure-rated polyethylene solution is required.

This pipe coil is used in residential and light commercial applications including well-water supply lines, main service laterals, and pressurized irrigation systems. Its flexibility allows for coiled installation without rigid-pipe fittings at every change of direction, reducing labor time on long horizontal runs. The 100-foot coil length is a standard field length suited to typical service-line installations from the meter to the structure or from a pump house to the point of use.

Key Features

• 160 PSI working pressure rating for pressurized water service lines
• SIDR 11.5 standard dimension ratio ensures consistent wall thickness
• NSF approved for potable water contact
• 4710 better-grade polyethylene raw material for enhanced pressure performance
• 100-foot coil length reduces splice points on long runs
• Flexible construction allows installation around minor grade changes without rigid fittings

Compatibility

Designed for use with standard insert fittings, compression fittings, and crimp-style fittings sized for 1.25-inch polyethylene pipe in pressurized water service and irrigation applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified water-service contractor in accordance with applicable local plumbing codes and IPC requirements. Shut off and depressurize the supply line before making any connections. Use fittings rated for the pipe's working pressure and compatible with polyethylene material. Avoid sharp bends below the pipe's minimum bend radius to prevent kinking and flow restriction.

Technical Specifications

• Pipe Diameter: 1.25 inches
• Length: 100 feet
• Working Pressure: 160 psi
• Dimension Ratio: SIDR 11.5
• Material: Polyethylene (4710 better-grade raw material)
• Certification: NSF approved
• Weight: 34 pounds
• Package Quantity: 1

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: X2-125160100
