Ads 473-0100' 4 in Perf Single Wall Hdpe Drain Pipe 100 Ft

Product Description

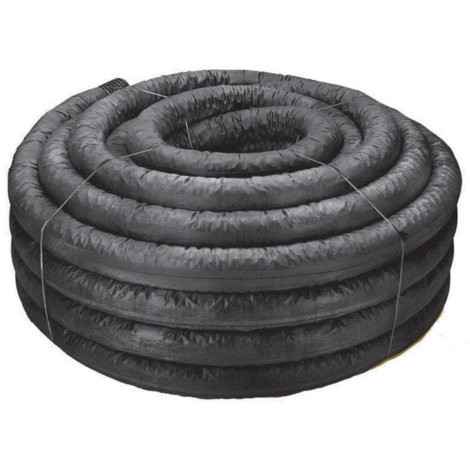

The ADVANCED DRAINAGE SYSTEMS 473-0100' is a 4-inch perforated single wall corrugated HDPE drainage pipe supplied in a 100-foot roll with an integrated drain guard sleeve. The corrugated profile provides flexibility for routing through landscaping, foundation perimeters, and subsurface drainage channels while maintaining structural integrity under soil load. HDPE construction resists corrosion, root infiltration, and soil chemicals. The factory-installed drain guard acts as a geotextile filter sock that limits sediment and fine particles from entering the pipe, reducing clogging risk in silt-prone or clay-heavy soils.

This pipe is used in residential and light commercial subsurface drainage applications including foundation footing drains, French drains, yard drainage systems, curtain drains, and athletic field drainage. It is well-suited for installations in areas where soil migration into the drain line is a concern, making the drain guard particularly valuable in sandy or fine-grained soil environments. Licensed plumbers, drainage contractors, and experienced landscaping professionals typically handle installation.

Key Features

• 4-inch internal diameter corrugated single wall HDPE construction for flexibility and durability
• Perforated pipe allows groundwater infiltration along the full run length
• Integrated drain guard geotextile sock reduces sediment intrusion and maintenance intervals
• 100-foot roll length minimizes joints and speeds installation on longer runs
• HDPE material resists corrosion, chemicals, and root damage over long service life

Compatibility

Designed as an OEM-style replacement and standard fitment for residential and light commercial subsurface perforated drainage pipe applications requiring a 4-inch single wall corrugated HDPE pipe with geotextile filter protection.

Installation Notes

Installation is typically performed by licensed plumbers or drainage contractors following local plumbing and grading codes. Excavate the trench to the required depth and slope, place a gravel bed beneath the pipe, and ensure consistent grade for positive drainage flow. Power equipment and hand tools are standard; no open flame or heat tools are required for single wall corrugated HDPE connections. Cap or terminate pipe ends appropriately to prevent backfill intrusion at outlets.

Technical Specifications

• Pipe Diameter: 4 inches
• Pipe Type: Single Wall Corrugated
• Material: HDPE
• Perforation: Perforated
• Roll Length: 100 feet
• Filter Sock: Drain Guard Included

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: 473-0100'
