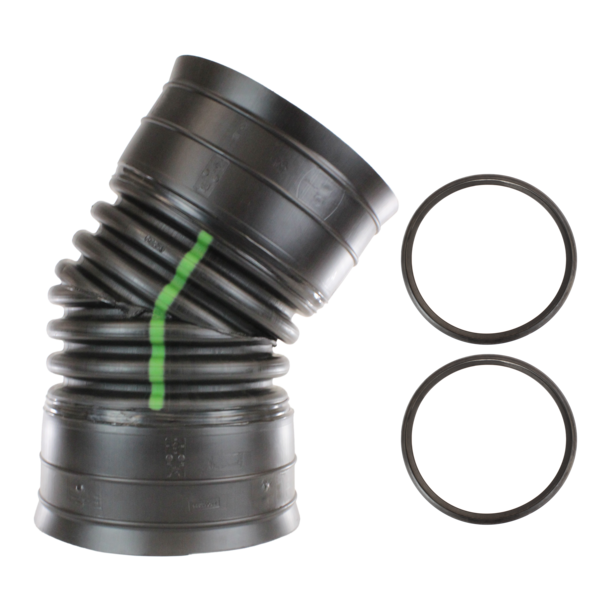

Ads 1292AN65B 12 water tite 22.5 degree elbow

Product Description

The ADS Water Tight Elbow, MPN 1292AN65B, is ideal for use with dual-walled HDPE pipes. The watertight bend prevents leaking. The HDPE construction ensures prolonged use and is suitable for drainage and waterworks applications. It is designed for gravity-flow storm sewer and subsurface drainage applications.

• Designed for use with dual-walled HDPE pipes
• Ideal for drainage and waterworks applications
• Watertight bend prevents leaking

Product Highlights

The ADS Water Tight Elbow is constructed from HDPE and is ideal for drainage and waterworks applications.

Product Information

Standard Information

• Brand: ADS
• Manufacturer Part Number: 1292AN65B

Technical Specifications

• Item: Stormwater Fitting
• Type: Elbow
• Material: HDPE
• Suitable For Use With: Dual Wall Pipe
• Connection Size: 12 in.
• Connection Type: Gasket
• Angle: 22-1/2 Degree
• Connection 2 Size: 12 in.
• Connection 2 Type: Gasket
• Regulated: No
• Brand Name: ADS
• ASTM: ASTM F-2306
• Application: Drainage
• Clean Bagged: No
• Elbow Degree: 22-1/2
• End Connection 1: Hub
• End Connection 2: Hub
• End Connections: Hub
• FM Approved: No
• Fitting Size 1: 12
• Fitting Size 2: 12
• Fitting Sizes: 12 in
• Material Type: HDPE
• NSF Certified: No
• Package Quantity: 1
• Product Code: 1292AN65B
