Ads 1018WT 10 x 8 inch Corrugated N-12 Water Tight Snap Reducer Coupling REPLACEMENT 1072AN

Product Description

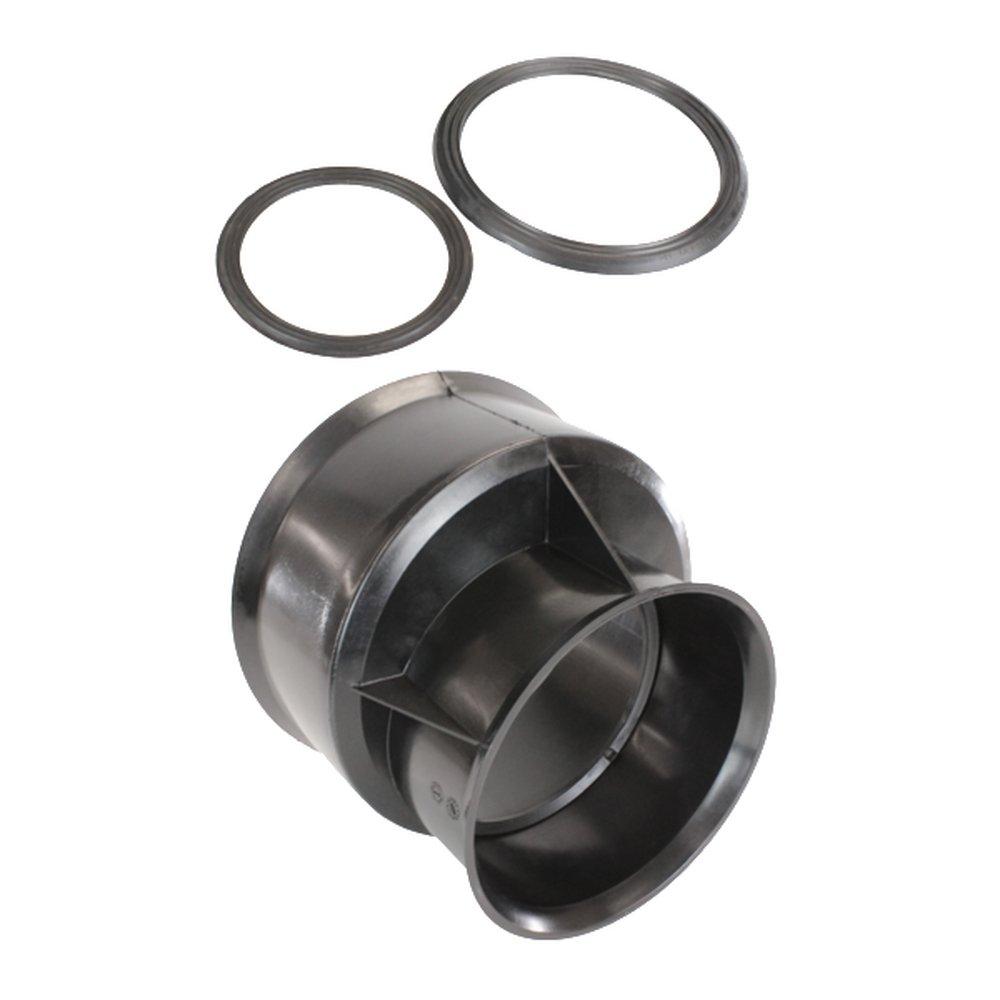

The ADS 1018WT is a 10 x 8 inch Corrugated N-12 Water Tight Snap Reducer Coupling. The N-12 dual wall injection molded and fabricated reducers allow for transition from larger to smaller diameter pipe and are available in soil tight (ST) and water tight (WT). Includes ASTM F477 gasket for attachment on pipe end.

• HDPE is less brittle than PVC, particularly in cold temperatures, N-12 survives the impact of rocks in the backfill and the rigors of cold weather handling
• N-12 pipe installs quickly because there is no need to bevel the pipe edge when making a joint
• HDPE is unaffected by acidic and alkaline solutions as well as by soil hydrocarbons

Product Highlights

This ADS reducer coupling is ideal for drainage applications, providing a secure, water-tight connection between different pipe sizes.

Product Information

Standard Information

• Brand: ADS
• Manufacturer Part Number: 1018WT
• Country of Origin: United States

Technical Specifications

• Diameter In (mm): 10" x 8" (250 x 200)
• Package Quantity: 1
• Product Code: 1018WT
• Connection Type: Bell
• Fitting Size: 10 x 8 in
• Material: HDPE
• Series: N-12 Series
• Type: Wall Reducer
• Color: Black
• Brand: ADS
• Compatible Brand: ADS
• Model: 1018WT
• Compatible Model: 1018WT
• Manufacturer Part Number: 1018WT
• Category: Business & Industrial
• Country of Origin: United States
• ASTM: ASTM F-477
• Application: Drainage
• Clean Bagged: No
• Collection: N-12
• End Connection 1: Hub
• End Connection 2: Hub
• End Connections: Hub
• FM Approved: No
• Fitting Size 1: 10
• Fitting Size 2: 8
• Fitting Sizes: 10 in x 8 in
• Fitting Type: Coupling
• Length: 9-9/10
• Material Type: HDPE
• NSF Certified: No
• UPC: 096942704069
