Product Description

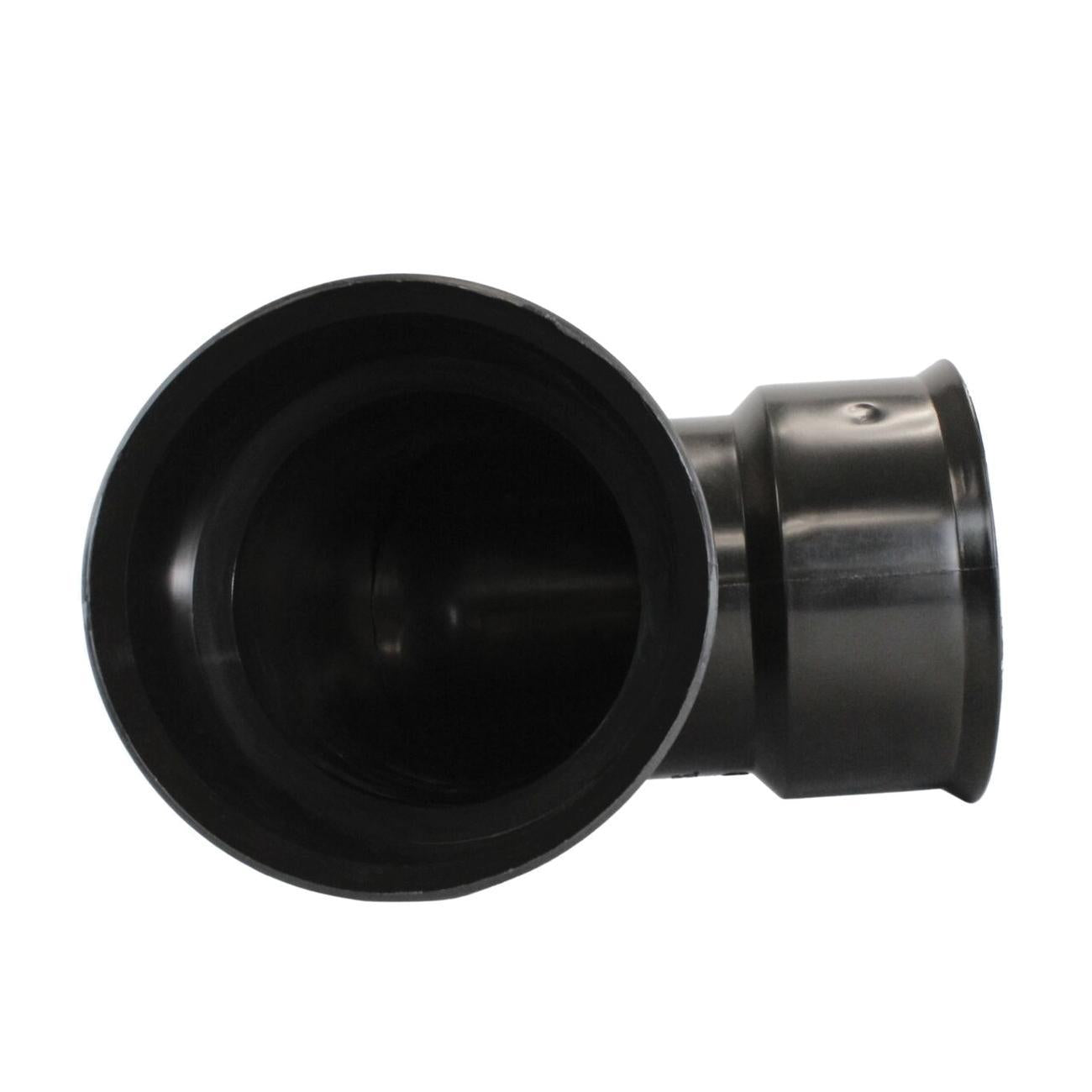

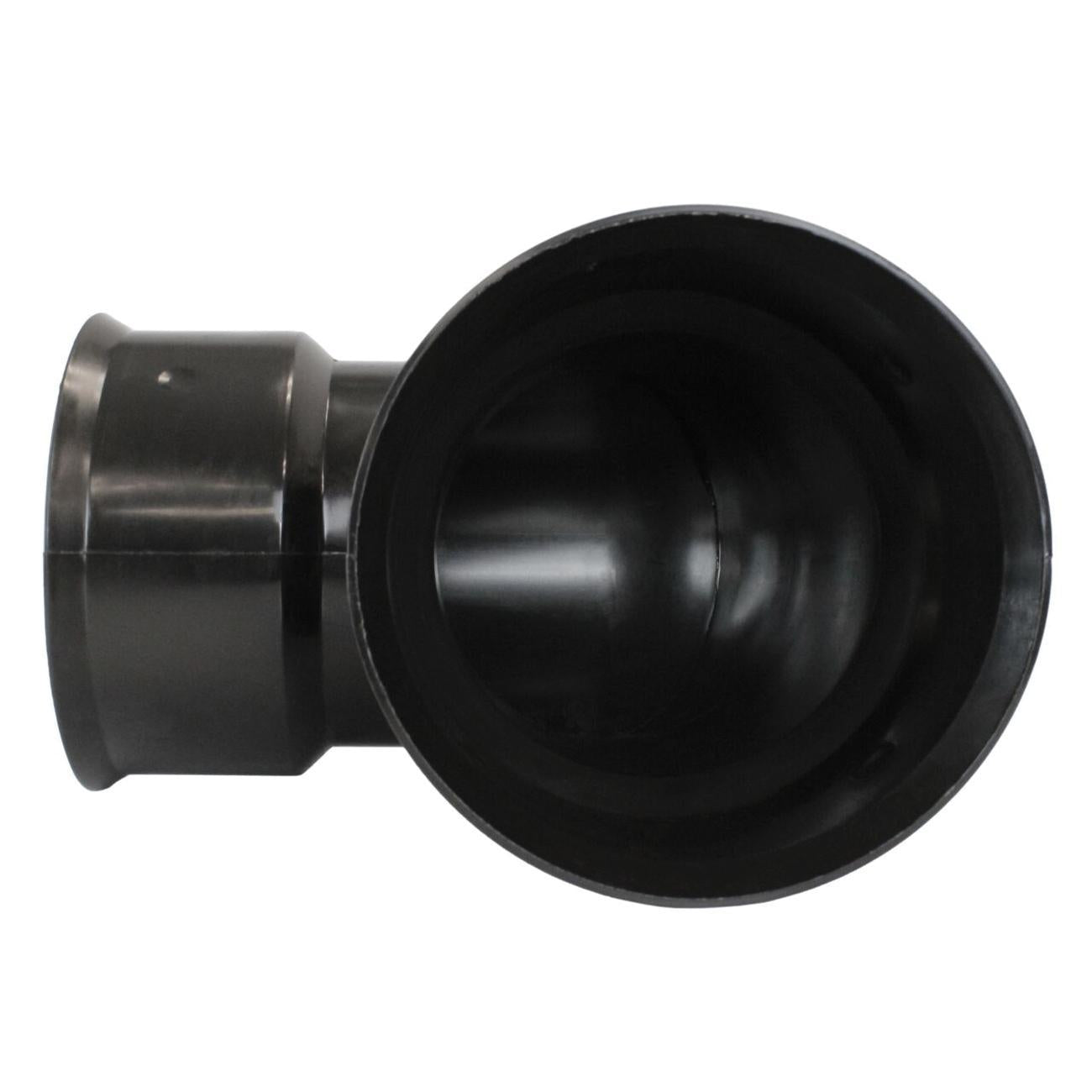

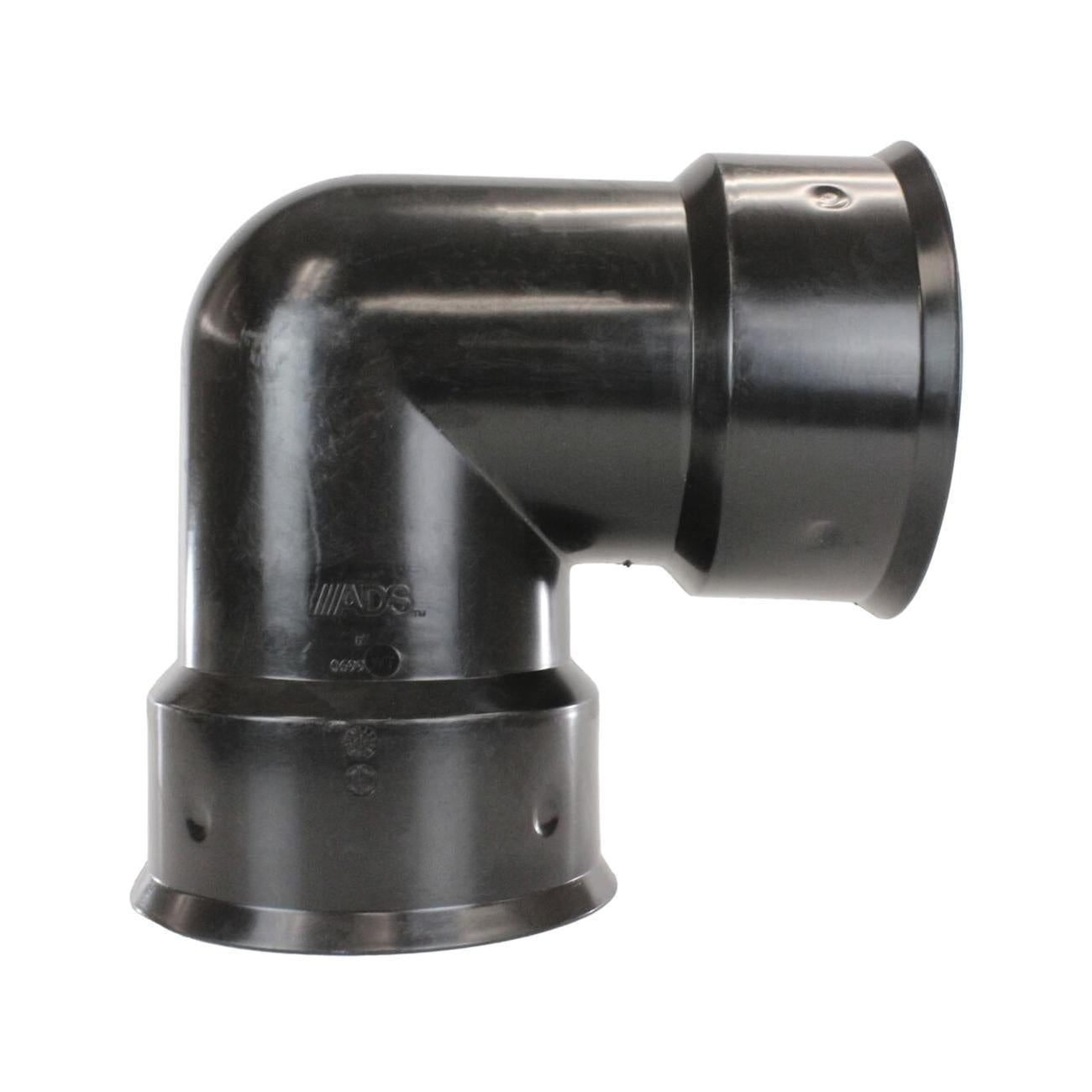

The ADS 0899ST Soiltight 8in 90 Elbow for N-12 Pipe is a 90-degree molded heavy-duty elbow fitting that is part of a dual wall HDPE molded pipe. It is designed to provide enhanced hydraulic flow efficiency and durability, with resilient long-term reliability for drainage and stormwater control systems.
- Provides a watertight fit for a leak-free connection.
- HDPE construction offers durability.
- Dual-walled elbow helps to produce a 90-degree change in the fluid flow direction
Product Highlights
This elbow features a smooth interior wall for effective flow and a corrugated outer wall for strength and support. It is suitable for municipal, commercial, and agricultural drainage systems.
Product Information
Standard Information
-
Brand: ADS
-
Manufacturer Part Number: 0899ST
Technical Specifications
-
Application: Drainage
-
Collection: N-12
-
Elbow Degree: 90
-
End Connection 1: Hub
-
End Connection 2: Hub
-
End Connections: Hub
-
FM Approved: No
-
Fitting Size 1: 8
-
Fitting Size 2: 8
-
Fitting Sizes: 8 in
-
Fitting Type: Elbow
-
IAPMO Listed: No
-
Material: HDPE
-
Material Type: HDPE
-
NSF Certified: No
-
UL Listed: No
-
UPC: 096942648998
-
Diameter In (mm): 8" (200)
-
Package Quantity: 3
-
Product Code: 0899ST
-
Suitable For Use With: N-12 Dual Wall Pipe
-
Connection Size: 8 in.
-
Connection Type: Bell End (Soiltight)
-
Angle: 90 Degree
-
Connection 2 Size: 8 in.
-
Connection 2 Type: Bell End
-
Regulated: No
-
Brand Name: ADS
(Advanced Drainage Systems)
-
Manufacturing Process: Injection Molded
-
Design: Dual Wall with a Smooth Interior and Corrugated Outer Wall
-
Compatible with: ADS N-1
2 8 inch.
-
Used in: Storm, Subsurface, and Agricultural Drainage
