Ads 08150020IBDW N-12 8 in. x 20 ft. Bell End x Spigot Plastic Drainage Pipe

Product Description

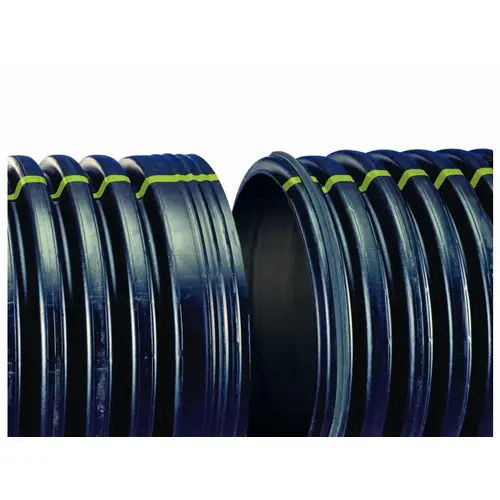

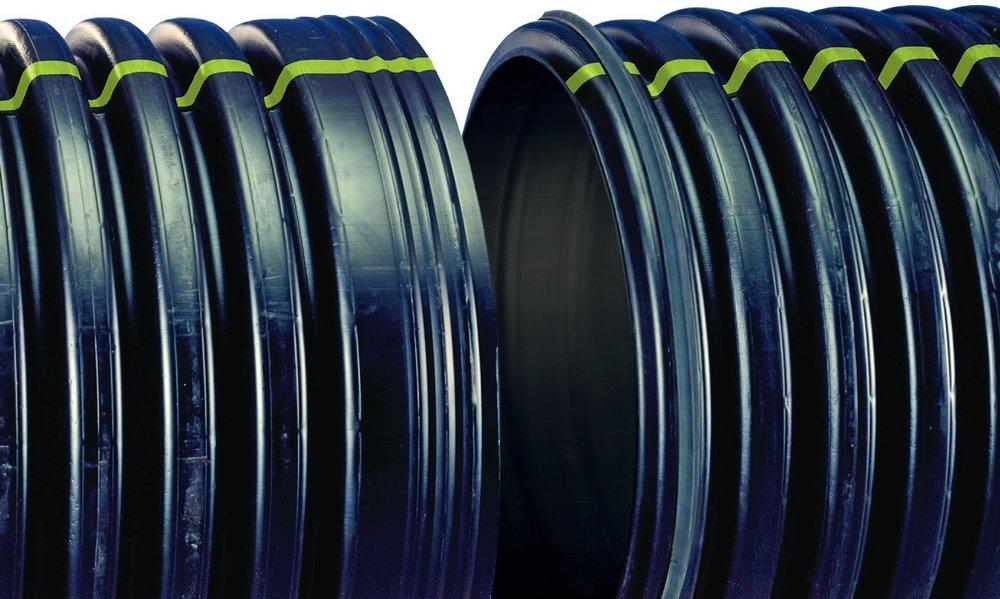

The ADS 08150020IBDW N-12 pipe features a dual wall and is designed with a bell end. Constructed from high-density polyethylene, this pipe offers resistance to corrosion and abrasion. It serves as an alternative to reinforced concrete and corrugated metal pipes. The N-12 pipe is available in soil tight configurations.

• Eliminates the need for an open trench, increasing safety and installation speed
• Requires less labor and equipment, decreasing overhead and operating costs
• Significantly increases quality and efficiency of high water table installations

Product Highlights

The ADS N-12 pipe is a durable and efficient solution for drainage needs, offering a smooth interior for enhanced flow and a corrugated exterior for structural support.

Product Information

Standard Information

• Brand: ADS
• Manufacturer Part Number: 08150020IBDW

Technical Specifications

• AASHTO: AASHTO M-294
• ASTM: ASTM F-2648, ASTM F-477, ASTM F-2306, ASTM D-2321
• Application: Roof Drainage, Gravity System, Heavy Duty, Storm Drainage
• CSA Certified: CSA B182.8
• Collection: N-12
• Diameter - Outside: 9-1/10 in
• End Connection 1: Bell End
• End Connection 2: Spigot
• End Connections: Bell End x Spigot
• Fire Suppression System Rated: No
• Length: 20 ft.
• Material: HDPE
• Material Type: HDPE
• Maximum Temperature: 120
• NSF Certified: No
• Pipe Wall Type: Dual Wall
• PipeTubing Size: 8
• Pressure - Maximum: 70 psi
• Connection Size: 8 in.
• Shape: Round
• Item: Drain Pipe
• Type: Solid
• Series: N-12 Series
• Dimensions: 8 in. x 20 ft.
• Finish: Solid
• Outside Diameter: 9-1/9 in.
• Inside Diameter: 8 in.
• Connection 2 Size: 8 in.
• Connection 2 Type: Bell End
• Soil Tight/Water Tight/Highway Grade: Soil Tight
• Regulated: No
• Brand Name: ADS
• Part Number: DPE08150020IBDW
• MFG Number: 08150020IBDW
• UPC: 096942740838
• Series/Model: N-12
• Size: 8"
• Manufacturers: ADS
• PN: 30600850
