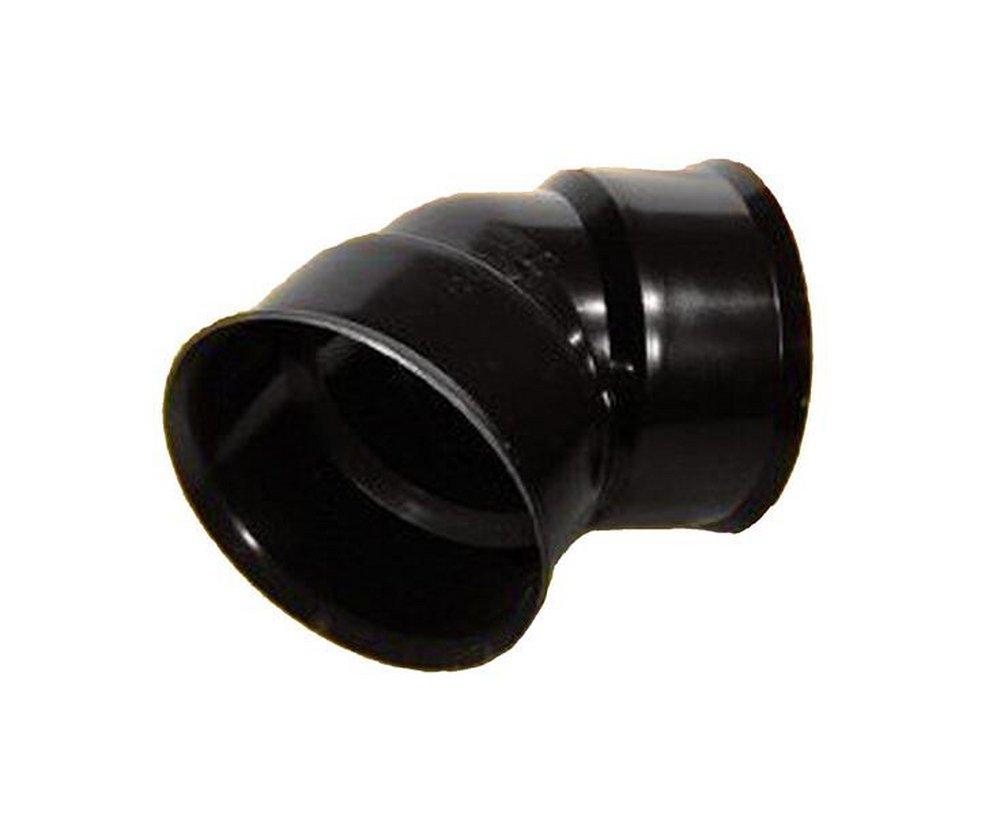

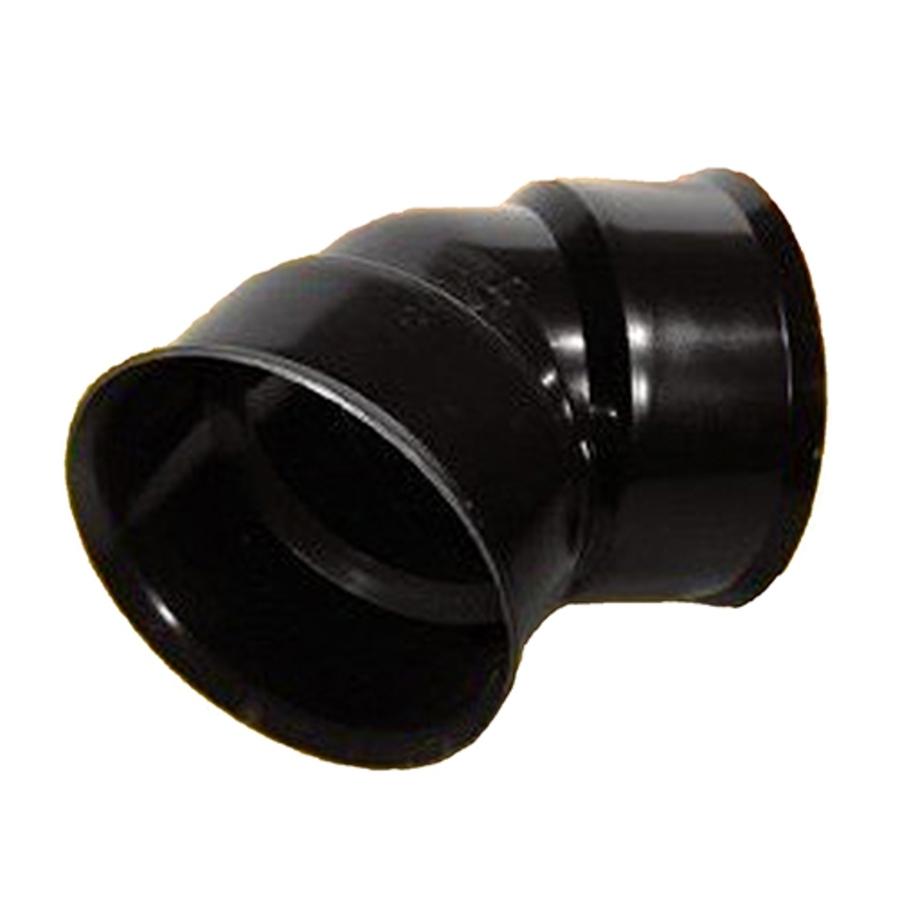

Ads 0694WT elbow 6 inches 45 degree

Product Description

The ADS 0694WT elbow is a 6-inch fitting with a bell connection and a 45-degree angle, constructed from HDPE. Ideally suited for drainage and all waterworks applications. These bends are available in soil tight (ST) and water tight (WT) and are readily available to service most stormwater management projects.

• Injection-molded fitting
• Tough, durable and corrosion resistant
• ASTM F667 and AASHTO M252 specifications

Product Highlights

The ADS 0694WT elbow is perfect for storm sewer and subsurface drainage applications.

Product Information

Standard Information

• Brand: ADS
• Manufacturer Part Number: 0694WT
• Country of Origin: USA

Technical Specifications

• Diameter In (mm): 6" (150)
• Product Code: 0694WT
• Angle: 45 deg
• Connection Type: Bell End
• Fitting Size: 6 in
• Material: HDPE
• Suitable For Use With: N-12 Series 65 Pipes
• Brand: Advanced Drainage Systems
• Wall Thickness: Dual Wall
• Fitting Type: 45 Degree Bend
• End Connections: Gasket
• Joint Performance: Watertight
• ASTM: ASTM F-2306
• Application: Drainage, PVC Pipe
• Clean Bagged: No
• Elbow Degree: 45
• End Connection 1: Hub
• End Connection 2: Hub
• Fitting Sizes: 6 in
• Material Type: HDPE
• NSF Certified: No
• UPC: 096942645232
• MFG Number: 0694WT
• Connection Size: 6 in.
• Includes: Gaskets
• Method of Manufacture: Corrugated
• Series/Model: N-12
• Type: Water-Tight Dual Wall
• Specifications: 6 in, 45 deg, Bell Connection
