Ads 0694st N-12 45 degree 6 in elbow

Product Description

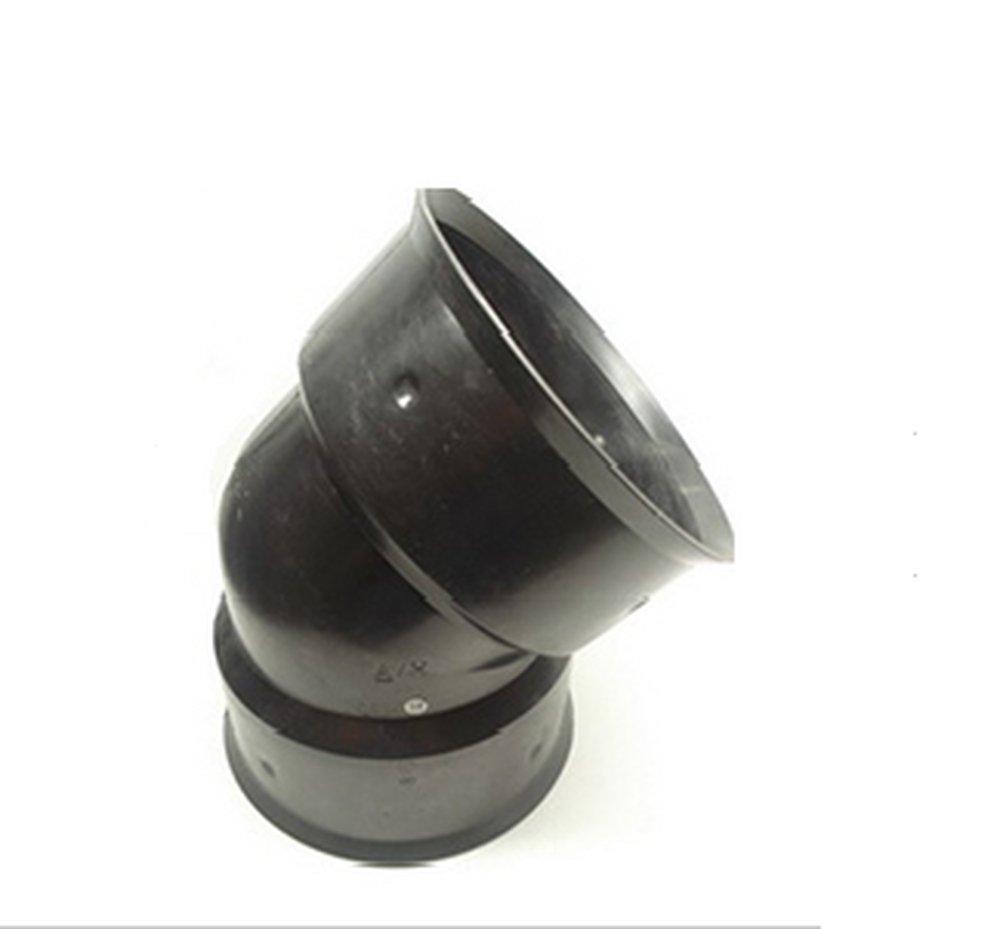

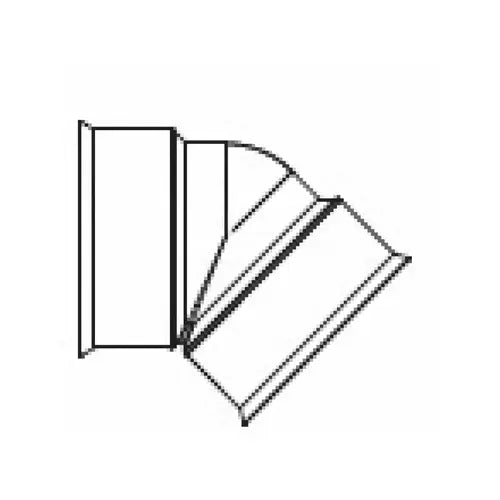

The ADS 0694ST N-12 elbow is a dual-wall, soil-tight fitting designed for stormwater management projects. This 6-inch elbow features a cleated bell connection and is made from HDPE. It is suitable for use with N-12 series drainage pipes and provides a 45-degree angle for directional changes in drainage systems.

• Soil-Tight injection molded fittings
• Cleated bells
• Injection-molded fitting

Product Highlights

The ADS N-12 elbow is ideal for drainage applications requiring a durable, soil-tight connection.

Product Information

Standard Information

• Brand: ADS
• Manufacturer Part Number: 0694ST
• Country of Origin: United States

Technical Specifications

• Diameter In (mm): 6" (150)
• Product Code: 0694ST
• Connection Size: 6 in
• Connection Type: Cleated Bell
• Material: HDPE
• Suitable for: N-12 Series Drainage Pipes
• Application: Drainage
• Clean Bagged: No
• Elbow Degree: 45
• End Connection 1: Hub
• End Connection 2: Hub
• End Connections: Hub
• FM Approved: No
• Fitting Size 1: 6
• Fitting Size 2: 6
• Fitting Sizes: 6 in
• Fitting Type: Elbow
• IAPMO Listed: No
• Material Type: HDPE
• NSF Certified: No
• UL Listed: No
• UPC: 096942645225
• Angle: 45 deg
• Fitting Size: 6 in
• Suitable For Use With: N-12 Corrugated Polyethylene Drainage Pipes
• MFG Part#: 0694ST
• DSG#: 22209
