Adp RE84960D245B2505AP Cased Evaporator Coil 3.5-5 Ton

Product Description

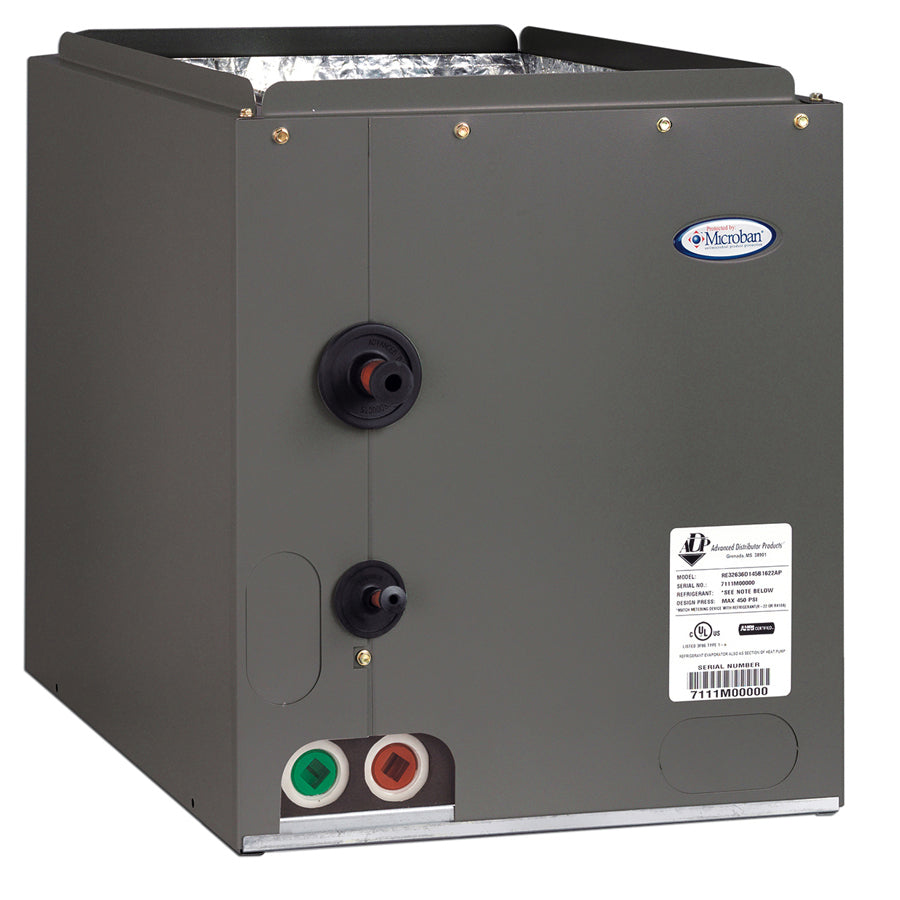

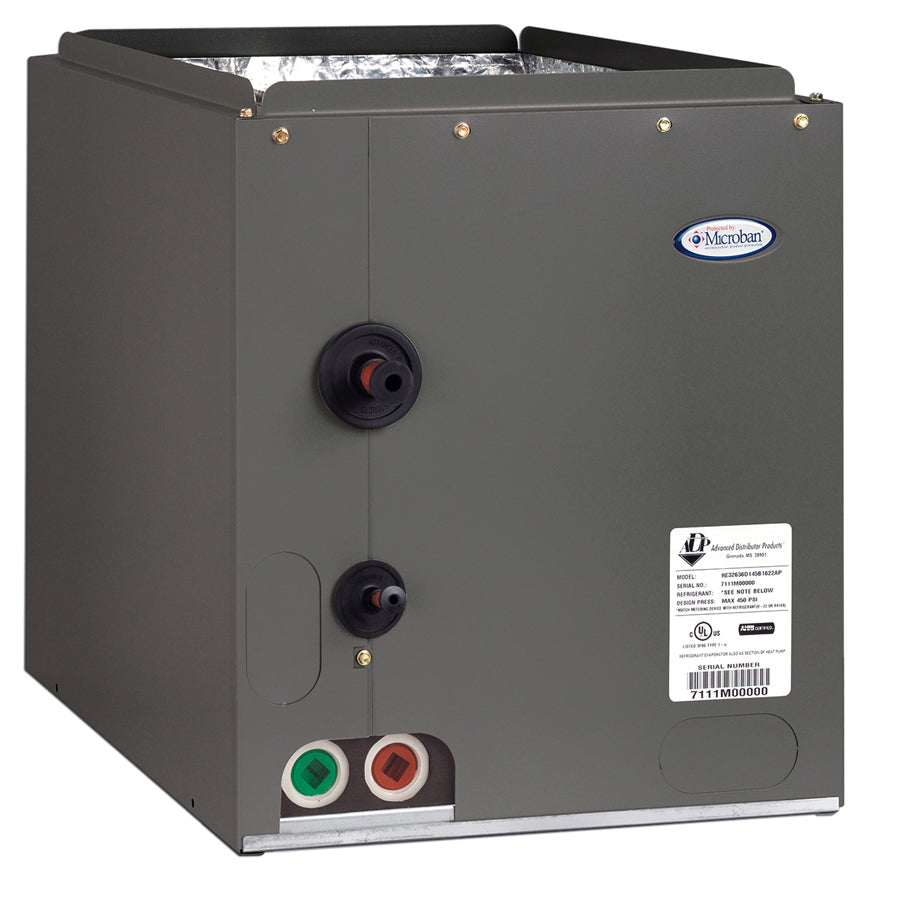

The ADP RE84960D245B2505AP is a cased, multi-position evaporator coil designed for split-system air conditioning and heat pump applications in the 3.5 to 5 ton nominal capacity range. It ships with an integrated thermostatic expansion valve (TXV) for accurate refrigerant metering, which improves system efficiency across a wide range of operating conditions. The cased enclosure provides a factory-sealed cabinet that simplifies installation and reduces field fabrication time. HVAC technicians install this coil as part of a split-system or packaged air handler setup, pairing it with a matched condensing unit to complete the refrigerant circuit.

This coil is suited for residential and light commercial installations where a multi-position configuration is required. The multi-position design allows installation in upflow, downflow, or horizontal orientations, giving installers flexibility when working with different air handler configurations or constrained mechanical room layouts. The included TXV eliminates the need to source a separate metering device, making this a practical choice for replacement and new-construction projects in the 3.5 to 5 ton system range.

Key Features

• Nominal capacity range of 3.5 to 5 tons suits a wide variety of residential and light commercial systems
• Factory-installed TXV provides precise refrigerant metering without requiring a separate field-supplied device
• Multi-position orientation supports upflow, downflow, and horizontal installations
• Cased cabinet design offers a factory-finished enclosure for cleaner installation
• Dimensions of 24.5 inches wide, 25.5 inches tall, and 21 inches deep fit standard air handler footprints

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for split-system air conditioners and heat pumps in the 3.5 to 5 ton capacity range. Verify refrigerant type, line set sizing, and TXV compatibility with the condensing unit before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician holding an EPA 608 certification, as this work involves a sealed refrigerant system. De-energize the air handler and disconnect power at the disconnect box before beginning coil removal or installation. Follow local mechanical codes and the equipment manufacturer instructions for brazing procedures, leak testing, and system evacuation before recharging. Verify that the drain pan and condensate line are properly pitched and connected before returning the system to service.

Technical Specifications

• Nominal Capacity: 3.5-5 Ton
• Casing Type: Cased
• Orientation: Multi-Position
• Metering Device: TXV (Thermostatic Expansion Valve)
• Width: 24.5 inches
• Height: 25.5 inches
• Depth: 21 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: RE84960D245B2505AP
