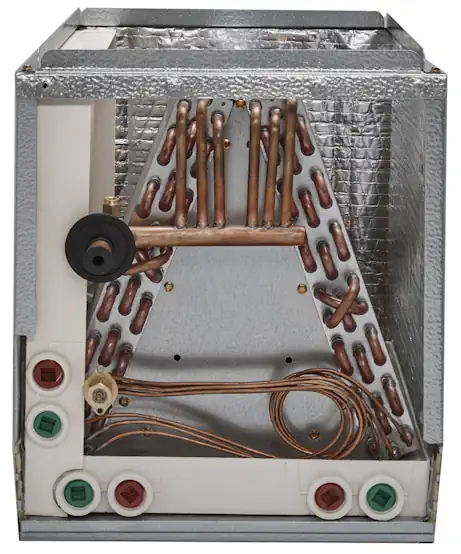

ADP RE7JA30D175B1605R 2.5 Ton R-454B 30,000 BTU/h 17.5 in Cased-Coil

Product Description

The ADP RE7JA30D175B1605R is a 2.5 ton cased evaporator coil designed for use with R-454B refrigerant. This product is suitable for different installation orientations, including upflow and horizontal configurations. It meets the demands of modern air conditioning and heat pump systems.

• Multi-position installation options for versatility.
• Constructed with durable copper material for long-lasting performance.
• Compatible with modern refrigerants, offering efficient system performance.

Product Highlights

The ADP RE7JA30D175B1605R coil is built for efficiency and reliability. It is ideal for both new installations and system replacements in residential and commercial applications.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• BTU Rating: 30,000 BTU/h
• Tonnage: 2.5 Ton
• Refrigerant Type: R-454B
• Coil Casing: Cased
• Width: 17.5 in
• Height: 16.5 in
• Depth: 21 in
• Product Weight: 46 lbs
• Suction Line Size: 3/4 in
• Drain Pan Material: Composite / Polymer
• Air Flow Direction: Upflow, Horizontal, Multi-Position
• Coil Material: Copper
• Refrigeration Control Type: TXV
