Adp RE7J924D145 Cased Evaporator Coil 1.5 Ton Txv

Product Description

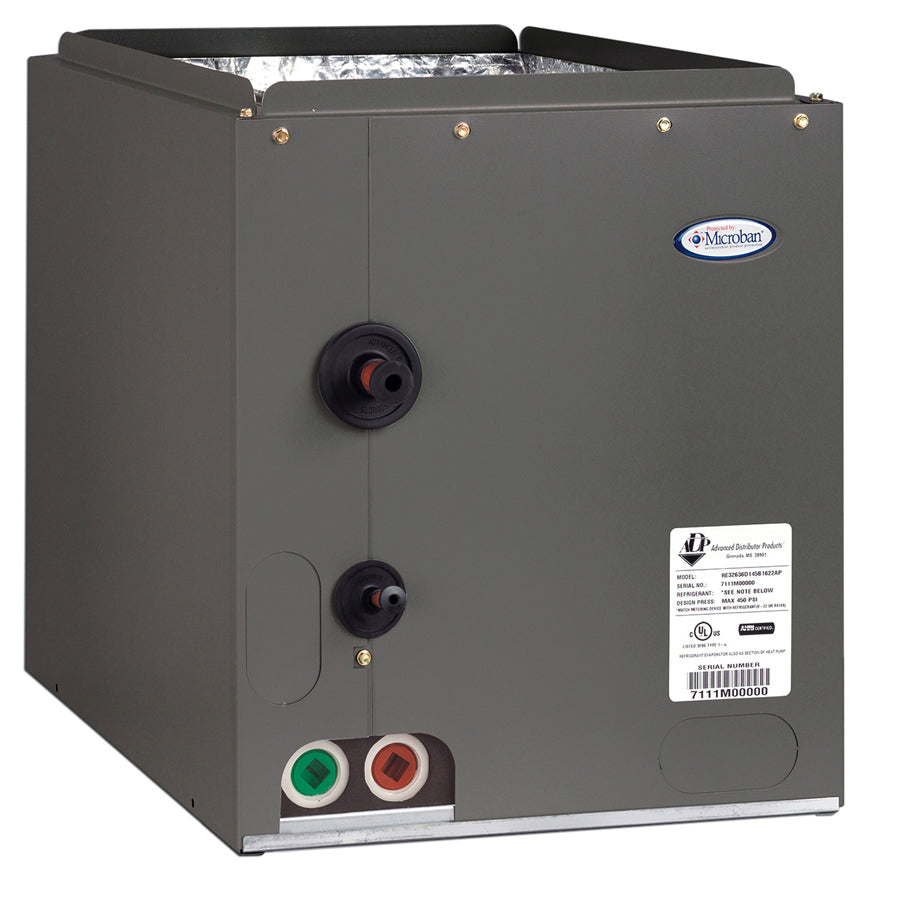

The ADP RE7J924D145 is a cased evaporator coil rated at 1.5 nominal tons for residential and light-commercial split-system air conditioning applications. It ships fully cased, meaning the coil assembly arrives in its own sheet-metal enclosure ready for installation without field-fabricated cabinets. A factory-installed TXV (thermostatic expansion valve) provides precise refrigerant metering across a range of operating conditions, improving system efficiency and protecting the compressor from liquid slugging. The multi-position design allows the coil to be installed in upflow, downflow, or horizontal configurations, giving installers flexibility when matching the coil to the air handler or furnace orientation on the job.

This coil is intended for residential split-system cooling installations paired with a compatible air handler or gas furnace. The cased construction and multi-position capability make it well-suited for new construction and replacement work in tight mechanical rooms or attic installations where space and orientation constraints vary. The factory TXV eliminates the need to field-install a metering device, reducing labor time and potential leak points at startup.

Key Features

• 1.5 nominal ton cooling capacity for residential split-system applications
• Factory-installed TXV for accurate refrigerant metering and compressor protection
• Cased enclosure ships ready to install without additional cabinet work
• Multi-position design supports upflow, downflow, and horizontal orientations
• Compact footprint: 14.5 inches wide, 16.5 inches tall, 21 inches deep

Compatibility

Designed as an OEM-style cased evaporator coil replacement for residential split-system air conditioning systems. Verify refrigerant type, line-set sizing, and tonnage match with the outdoor condensing unit and air handler or furnace before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician holding an EPA Section 608 certification. Disconnect and lock out all electrical power to the air handler or furnace before opening the refrigerant circuit or repositioning the coil. Follow the system manufacturer's specifications for line-set connections, drain-pan piping, and condensate trap depth. Local mechanical codes and ASHRAE 15 requirements apply to all refrigerant work.

Technical Specifications

• Nominal Capacity: 1.5 tons
• Casing: Cased
• Orientation: Multi-position
• Metering Device: TXV
• Width: 14.5 inches
• Height: 16.5 inches
• Depth: 21 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: RE7J924D145
