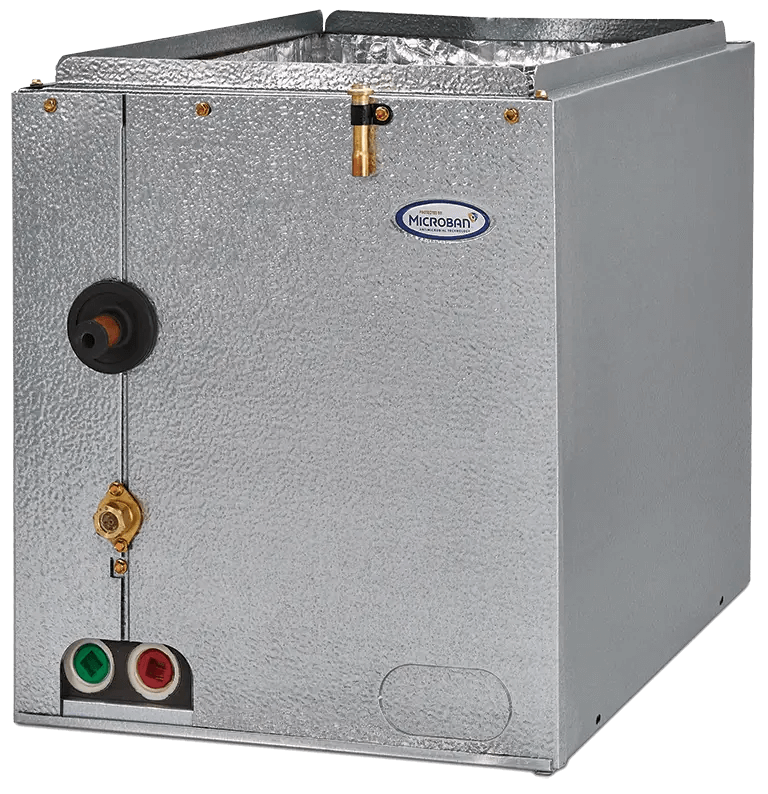

ADP RE52960C245B3105AP 5.0 Ton R-410A Multi-Position Cased-Coil

Product Description

The ADP RE52960C245B3105AP is a multi-position cased evaporator coil designed for high-efficiency residential HVAC systems. This product supports both upflow and horizontal configurations, ensuring flexible installation with a variety of furnaces.

• High-efficiency lanced fin design for optimal heat transfer.
• Patented low water retention drain pan made from a UV-resistant polymer with Microban.
• Fully lined insulated cabinet featuring interlocking doors for reduced air leakage.

Product Highlights

This evaporator coil is built for reliability, featuring copper tubing and a durable insulated cabinet. It is designed for easy service and installation.

Product Information

Standard Information

• Brand: ADP
• MPN: RE52960C245B3105AP

Technical Specifications

• Air Flow Direction: Upflow, Horizontal, Multi-Position
• BTU Rating: 60,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Drain Pan Material: Composite / Polymer
• Depth: 20.5 inches
• Height: 31.5 inches
• Width: 24.5 inches
• Product Weight: 77 lbs
• Refrigerant Type: R-410A
• Suction Line Size: 7/8 inches
• Tonnage: 5.0 Ton
