Adp RE52660D210B3105AP Cased Evaporator Coil 5 Ton Txv

Product Description

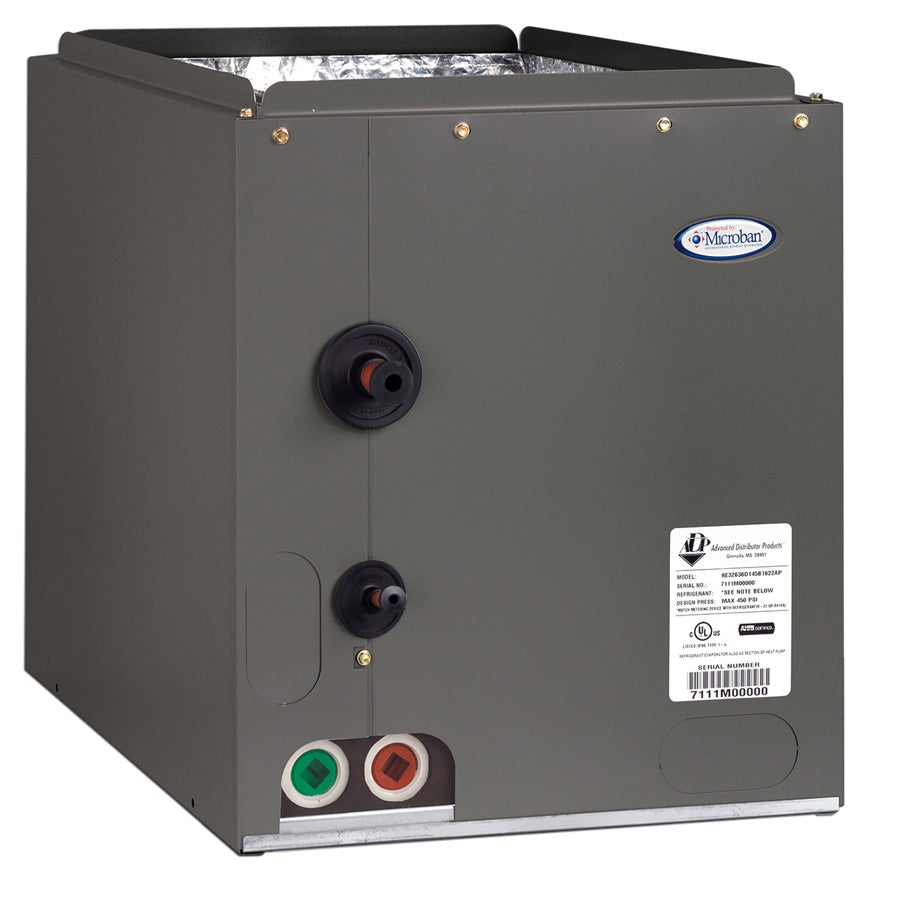

The ADP RE52660D210B3105AP is a cased, left-hand evaporator coil rated at 5 tons (60,000 BTU/h) for use in central air conditioning and heat pump systems. It features a thermostatic expansion valve (TXV) metering device with an external access port for straightforward piston changeout or TXV servicing. The copper refrigerant connections support brazing on both copper and aluminum slab configurations. A high-efficiency lanced fin design improves heat transfer, and the cabinet is fully lined with 5/8-inch foil-faced insulation. Microban antimicrobial additive is incorporated into the UV-resistant drain pan, which is molded from high-temperature engineered polymer rated to 450 degrees F. Dual 3/4-inch FPT condensate drains are located on the front-left and front-right of the drain pan.

This coil is designed for residential and light-commercial split-system air conditioner and heat pump installations. It is compatible with R-22 and R-410A refrigerants, making it suitable for new installations and for service work on existing systems using either refrigerant. The left-hand cased cabinet, non-captive refrigerant lines with long stubs, and enhanced pipe grommets are intended to simplify field installation in typical attic, closet, or mechanical-room applications. The copper distributor tube assembly uses brass-to-brass threads for reliable TXV service access.

Key Features

• 5-ton capacity at 60,000 BTU/h with TXV metering and external access port
• Compatible with R-22 and R-410A refrigerants for AC and heat pump systems
• High-efficiency lanced fin design for improved heat transfer performance
• Microban antimicrobial drain pan molded from high-temperature (450 degrees F) UV-resistant polymer with patented low water retention design
• Cabinet fully lined with 5/8-inch foil-faced insulation; Intertek-tested at 1% or less cabinet air leakage
• Copper distributor tube assembly with brass-to-brass TXV threads; non-captive refrigerant lines with long stubs for easy field install
• Made in USA with a 5-year warranty

Compatibility

Compatible with R-22 and R-410A air conditioner and heat pump systems. Designed as an OEM-style cased evaporator coil replacement for residential and light-commercial split systems requiring a 5-ton, TXV-metered, left-hand cased coil configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable mechanical codes and the equipment manufacturer's guidelines. Disconnect and lock out all electrical power and close refrigerant service valves before beginning coil replacement. Copper refrigerant connections are brazed in the field; follow established brazing procedures and purge with dry nitrogen to prevent internal oxidation. Confirm condensate drain piping meets local plumbing code requirements before returning the system to service.

Technical Specifications

• Capacity: 60,000 BTU/h (5 Ton)
• Refrigerant Compatibility: R-22, R-410A
• Metering Device: TXV with external access port
• Line Size: 7/8 inches x 3/8 inches
• Width: 21 inches
• Height: 31.5 inches
• Depth: 21 inches
• Casing: Left-hand cased
• Cabinet Insulation: 5/8-inch foil-faced
• Condensate Drains: Dual 3/4-inch FPT, front-left and front-right
• Drain Pan Material: High-temperature engineered polymer, UV-resistant, 450 degrees F rated
• Pressure Rating: 500 psi
• Material: Copper slab
• Country of Origin: USA

Standard Information

• Brand: ADP
• Manufacturer Part Number: RE52660D210B3105AP
