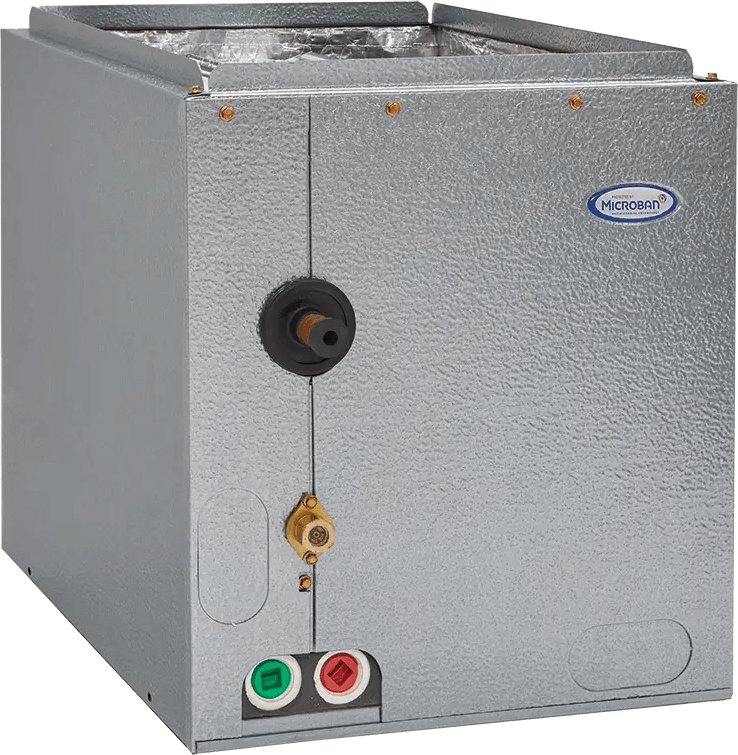

ADP RE50960C245B2705N 5.0 Ton R-454B HE Series Cased-Coil

Product Description

The ADP RE50960C245B2705N is a 5.0 ton cased evaporator coil designed to work with A2L refrigerants like R-454B. This coil is suitable for both new HVAC installations and upgrades to existing systems.

• Advanced drain pan design inhibits mold growth.
• Easy access for installation and service.
• Multi-position installation capabilities.

Product Highlights

This coil features a durable construction for long-lasting performance and includes design elements that ease maintenance tasks.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• BTU Rating: 60,000 BTU/h
• Coil Material: Copper
• Coil Casing: Cased
• Drain Pan Material: Composite / Polymer
• Refrigerant Type: R-454B
• Tonnage: 5.0 Ton
• Air Flow Direction: Upflow ~ Horizontal ~ Multi-Position
• Dimensions: 20.5 inches (Depth) x 27.5 inches (Height) x 24.5 inches (Width)
• Product Weight: 72 lbs
• Refrigeration Control Type: TXV
• Suction Line Size: 7/8 inches
