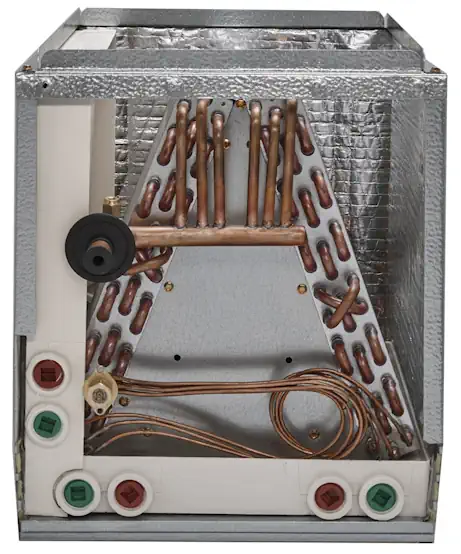

ADP RE50960C210B2705N Cased Coil 5.0 Ton R-454B 60,000 BTU/h

Product Description

The ADP RE50960C210B2705N is a 5.0 ton cased evaporator coil designed for use with R-454B refrigerant. It operates at a capacity of 60,000 BTU/h and is built for effective performance in HVAC systems. This coil easily integrates with various furnace models, making it suitable for both new installations and replacements.

• Multi-position installation: Upflow and horizontal options available.
• Built with a robust copper casing for durability.
• Features easy-access panels for simplified maintenance.

Product Highlights

The ADP cased coil is engineered for compatibility with modern refrigerants and versatile installation, ensuring reliable heating and cooling solutions.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• Product Family: HE Series
• Coil Material: Copper
• BTU Rating: 60,000 BTU/h
• Tonnage: 5.0 Ton
• Width: 21 in
• Height: 27.5 in
• Depth: 20.5 in
• Product Weight: 72 lbs
• Refrigerant Type: R-454B
• Suction Line Size: 7/8 in
• Drain Pan Material: Composite / Polymer
• Air Flow Direction: Upflow, Horizontal, Multi-Position
