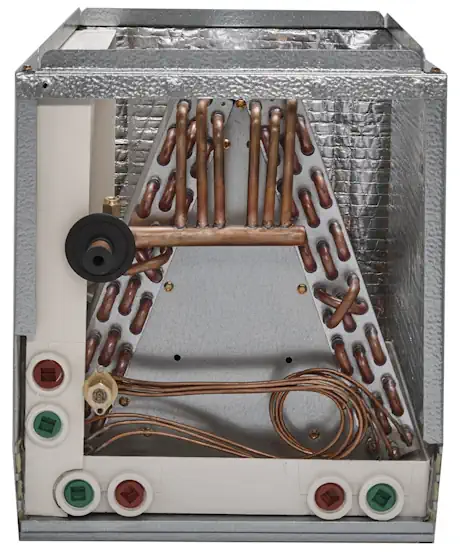

ADP RE50960C210B2705AP 5.0 Ton R-410A 60,000 BTU/h 21 in Cased-Coil

Product Description

The ADP RE50960C210B2705AP is a 5.0 ton cased evaporator coil designed for use with R-410A refrigerant. This unit operates at a capacity of 60,000 BTU/hour and features a compact size with a width of twenty-one inches.

• Multi-position installation options: upflow or horizontal
• High-efficiency A-coil design for improved performance
• Durable construction with a fully insulated cabinet

Product Highlights

Ideal for residential HVAC systems, this cased coil provides reliable cooling and heating while minimizing energy loss.

Product Information

Standard Information

• Model Number: HE
• Product Family: HE Series

Technical Specifications

• Air Flow Direction: Upflow, Horizontal, Multi-Position
• BTU Rating: 60,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 20.5 in
• Drain Pan Material: Composite / Polymer
• Height: 27.5 in
• Product Weight: 72 lbs
• Refrigerant Type: R-410A
• Refrigeration Control Type: TXV
• Suction Line Size: 7/8 in
• Tonnage: 5.0 Ton
• Width: 21 in
