ADP RE49A60D210B2705R 5.0 Ton R-454B HE Series Cased-Coil

Product Description

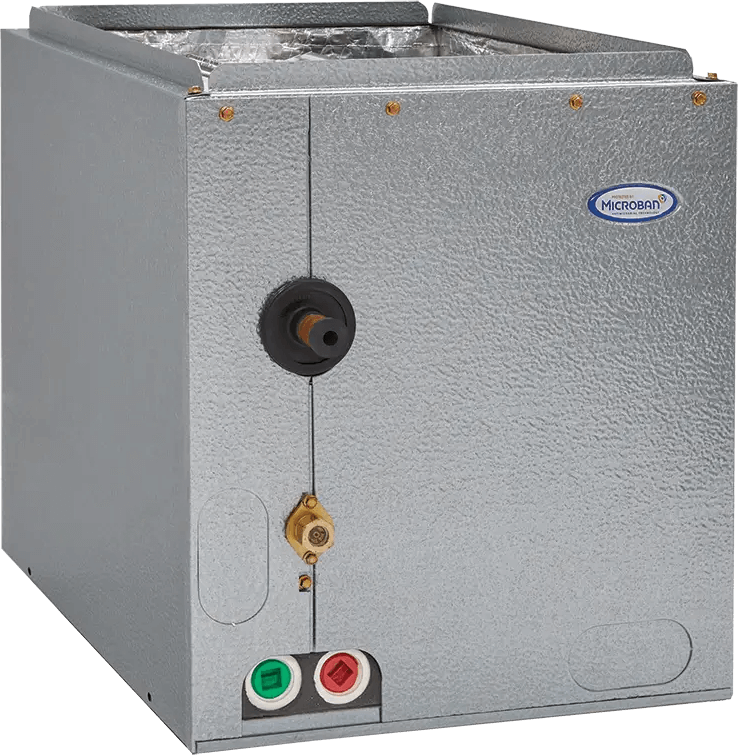

The ADP RE49A60D210B2705R is a 5.0 Ton R-454B HE Series cased coil designed for high efficiency. It is compatible with R-454B refrigerant and versatile for various system installations. The multi-position design supports upflow or horizontal applications, offering flexibility in setup.

• HydroTEC Drain Pan enhances moisture management with antimicrobial properties.
• Installer-friendly features for quick setup.
• Constructed for durability with high-efficiency performance.

Product Highlights

This coil is built with a fully insulated cabinet, which ensures optimal thermal efficiency and minimizes air leakage. Its design includes easy-access panels for simple service and installation, making it suitable for both new builds and system replacements.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• Air Flow Direction: Upflow, Horizontal, Multi-Position
• BTU Rating: 60,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 21 inches
• Drain Pan Material: Composite / Polymer
• Height: 27.5 inches
• Product Weight: 69 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 7/8 inches
• Tonnage: 5.0 Ton
• Width: 21 inches
