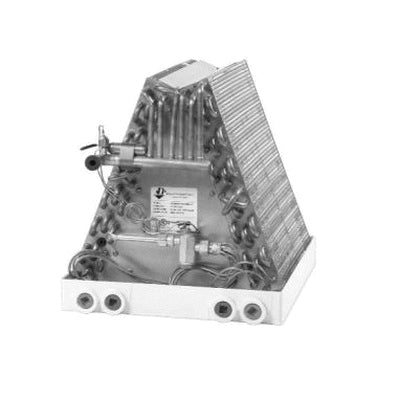

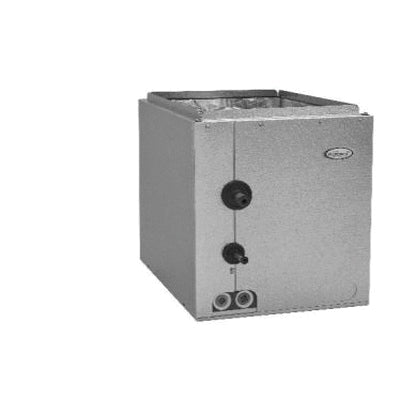

ADP RE36948C245B2505AP Evaporator Coil 48000 Btu/hr 1600 cfm

Product Description

The ADP Evaporator Coil with MPN RE36948C245B2505AP has a capacity of forty-eight thousand BTU per hour and a sixteen hundred cubic feet per minute airflow rate. This unit is designed for use in multi-position configurations and is compatible with R-410A refrigerant. With a left-hand casing, it features a seven-eighths inch ODF connection. This product is suitable for A1 refrigerants and is made of copper for durability and efficiency.

• Multi-position installation capability.
• High-efficiency fin design.
• Threaded expansion valves available for easy installation.

Product Highlights

This evaporator coil offers reliable performance and easy installation. The durable design ensures longevity in various applications.

Product Information

Standard Information

• MPN: RE36948C245B2505AP
• Brand: ADP

Technical Specifications

• BTU Rating: 48000 Btu/hr
• CFM Rating: 1600 cfm
• Coil Type: Left Hand Cased
• Configuration: Multi-Position
• Connection Size: 7/8 in
• Connection Type: ODF
• Dimensions: 25-1/2 in H x 24-1/2 in W x 20-1/2 in D
• Domestic/Import: Domestic
• Material: Copper
• Piston Size: #76
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Suitable For Use With: A1 Refrigerants
• Temperature Rating: 450 deg F
